Classes
struct	CopysphereSpeciesParameters
class	Copysphere
	Copysphere is a class applying an ionosphere-ish boundary conditions. More...
class	DoNotCompute
	DoNotCompute is a class handling cells not to be computed. More...
struct	InflowSpeciesParameters
class	Inflow
	Base class for boundary conditions with settings and parameters read from file. More...
struct	IonosphereSpeciesParameters
struct	SphericalTriGrid
class	Ionosphere
	Ionosphere is a class applying ionospheric boundary conditions. More...
struct	OutflowSpeciesParameters
class	Outflow
	Outflow is a class applying copy/outflow boundary conditions. More...
class	Maxwellian
	Maxwellian is a class applying fixed Maxwellian conditions according to parameters read from an input file. More...
class	SysBoundaryCondition
	SBC::SysBoundaryCondition is the base class for system boundary conditions. More...
class	OuterBoundaryCondition

Typedefs
typedef Real	iSolverReal

Enumerations
enum	IonosphereBoundaryVDFmode { FixedMoments , AverageMoments , AverageAllMoments , CopyAndLosscone }

Functions
Real	getR (creal x, creal y, creal z, uint geometry, Real center[3])
static Real	ReesIsotropicLambda (Real x)
static Real	SergienkoIvanovLambda (Real E0, Real Chi)
void	averageCellData (const dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const vector< CellID > cellList, SpatialCell *to, const uint popID, const creal fluffiness)
vmesh::LocalID	findMaxwellianBlocksToInitialize (const uint popID, spatial_cell::SpatialCell &cell, creal &rho, creal &T, creal &VX0, creal &VY0, creal &VZ0)
	SBC::findMaxwellianBlocksToInitialize returns a list of blocks to construct the VDF with.
void	determineFaceNoClassMembers (bool *isThisCellOnAFace, creal x, creal y, creal z, creal dx, creal dy, creal dz, const std::array< bool, 3 > periodicity, const bool excludeSlicesAndPeriodicDimensions)
void	averageCellData (const dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, std::vector< CellID > cellList, SpatialCell *to, const uint popID, const creal fluffiness=0)

Variables
IonosphereBoundaryVDFmode	boundaryVDFmode = FixedMoments
SphericalTriGrid	ionosphereGrid
static constexpr int	productionNumAccEnergies = 60
static constexpr int	productionNumTemperatures = 60
static constexpr int	productionNumParticleEnergies = 100
static constexpr Real	productionMinAccEnergy = 0.1
static constexpr Real	productionMaxAccEnergy = 100.
static constexpr Real	productionMinTemperature = 0.1
static constexpr Real	productionMaxTemperature = 100.
static constexpr Real	ion_electron_T_ratio = 4.
static const int	MAX_TOUCHING_ELEMENTS = 12
static const int	MAX_DEPENDING_NODES = 22

Typedef Documentation

◆ iSolverReal

typedef Real SBC::iSolverReal

Definition at line 73 of file ionosphere.h.

Enumeration Type Documentation

◆ IonosphereBoundaryVDFmode

enum SBC::IonosphereBoundaryVDFmode

Enumerator
FixedMoments
AverageMoments
AverageAllMoments
CopyAndLosscone

Definition at line 62 of file ionosphere.h.

Function Documentation

◆ averageCellData() [1/2]

void SBC::averageCellData	(	const dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		const vector< CellID >	cellList,
		SpatialCell *	to,
		const uint	popID,
		const creal	fluffiness )

Take a list of cells and set the destination cell distribution function to the average of the list's cells'.

Parameters

mpiGrid	Grid
cellList	Vector of cells to copy from.
to	Pointer to cell in which to set the averaged distribution.
popID	ID of population to average the distribution of
fluffiness	Factor to replace data with from 0.0 (default, do nothing) to 1.0 (replace all destination data with source data)

Definition at line 440 of file sysboundarycondition.cpp.

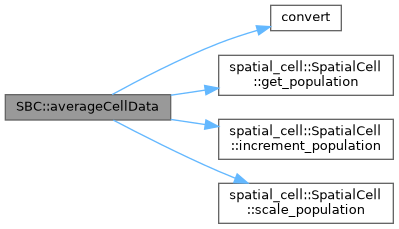

Here is the call graph for this function:

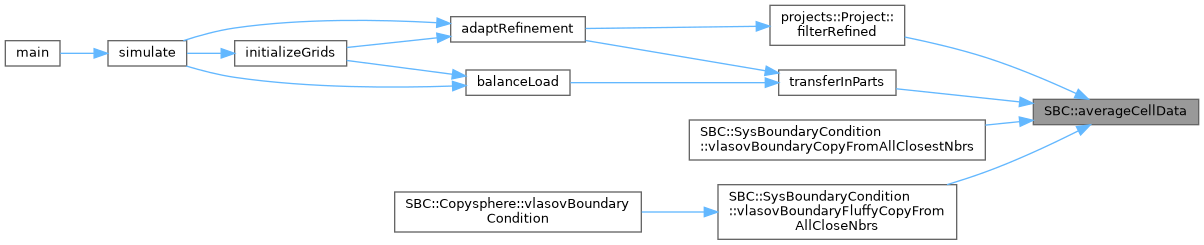

Here is the caller graph for this function:

◆ averageCellData() [2/2]

void SBC::averageCellData	(	const dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		std::vector< CellID >	cellList,
		SpatialCell *	to,
		const uint	popID,
		const creal	fluffiness = 0 )

◆ determineFaceNoClassMembers()

void SBC::determineFaceNoClassMembers	(	bool *	isThisCellOnAFace,
		creal	x,
		creal	y,
		creal	z,
		creal	dx,
		creal	dy,
		creal	dz,
		const std::array< bool, 3 >	periodicity,
		const bool	excludeSlicesAndPeriodicDimensions )

Definition at line 837 of file sysboundarycondition.cpp.

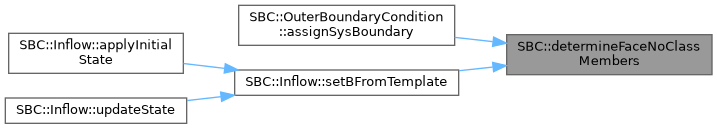

Here is the caller graph for this function:

◆ findMaxwellianBlocksToInitialize()

vmesh::LocalID SBC::findMaxwellianBlocksToInitialize	(	const uint	popID,
		spatial_cell::SpatialCell &	cell,
		creal &	rho,
		creal &	T,
		creal &	VX0,
		creal &	VY0,
		creal &	VZ0 )

SBC::findMaxwellianBlocksToInitialize returns a list of blocks to construct the VDF with.

Here the while loop iterates from the centre of the maxwellian in blocksize (4*dvx) increments, and looks at the centre of the first velocity cell in the block (+0.5dvx), checking if the phase-space density there is large enough to be included due to sparsity threshold. That results in a "blocks radius" vRadiusSquared from the centre of the Maxwellian distribution. Then we iterate through the actual blocks and calculate their radius R2 based on their velocity coordinates and the plasma bulk velocity. Blocks that fullfil R2<vRadiusSquared are included to blocksToInitialize.

Definition at line 739 of file sysboundarycondition.cpp.

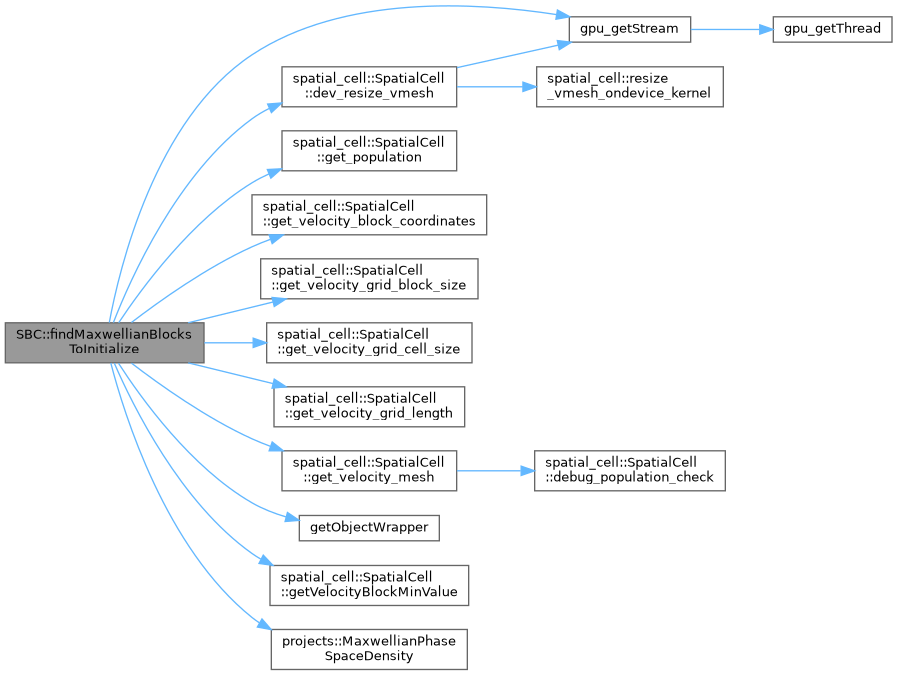

Here is the call graph for this function:

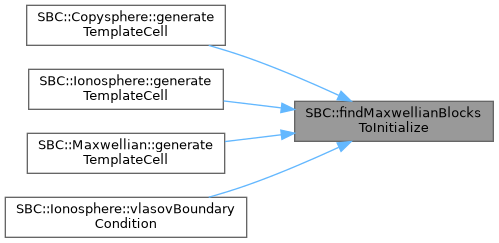

Here is the caller graph for this function:

◆ getR()

Real SBC::getR	(	creal	x,
		creal	y,
		creal	z,
		uint	geometry,
		Real	center[3] )

Definition at line 131 of file copysphere.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReesIsotropicLambda()

Real SBC::ReesIsotropicLambda ( Real x )

static

Definition at line 832 of file ionosphere.cpp.

Here is the caller graph for this function:

◆ SergienkoIvanovLambda()

Real SBC::SergienkoIvanovLambda	(	Real	E0,
		Real	Chi )

static

Definition at line 842 of file ionosphere.cpp.

Here is the caller graph for this function:

Variable Documentation

◆ boundaryVDFmode

IonosphereBoundaryVDFmode SBC::boundaryVDFmode = FixedMoments

Definition at line 69 of file ionosphere.cpp.

◆ ion_electron_T_ratio

Real SBC::ion_electron_T_ratio = 4.

staticconstexpr

Definition at line 53 of file ionosphere.h.

◆ ionosphereGrid

SphericalTriGrid SBC::ionosphereGrid

Ionosphere finite element grid

Definition at line 71 of file ionosphere.cpp.

◆ MAX_DEPENDING_NODES

const int SBC::MAX_DEPENDING_NODES = 22

static

Definition at line 71 of file ionosphere.h.

◆ MAX_TOUCHING_ELEMENTS

const int SBC::MAX_TOUCHING_ELEMENTS = 12

static

Definition at line 70 of file ionosphere.h.

◆ productionMaxAccEnergy

Real SBC::productionMaxAccEnergy = 100.

staticconstexpr

Definition at line 50 of file ionosphere.h.

◆ productionMaxTemperature

Real SBC::productionMaxTemperature = 100.

staticconstexpr

Definition at line 52 of file ionosphere.h.

◆ productionMinAccEnergy

Real SBC::productionMinAccEnergy = 0.1

staticconstexpr

Definition at line 49 of file ionosphere.h.

◆ productionMinTemperature

Real SBC::productionMinTemperature = 0.1

staticconstexpr

Definition at line 51 of file ionosphere.h.

◆ productionNumAccEnergies

int SBC::productionNumAccEnergies = 60

staticconstexpr

Definition at line 46 of file ionosphere.h.

◆ productionNumParticleEnergies

int SBC::productionNumParticleEnergies = 100

staticconstexpr

Definition at line 48 of file ionosphere.h.

◆ productionNumTemperatures

int SBC::productionNumTemperatures = 60

staticconstexpr

Definition at line 47 of file ionosphere.h.
