Outflow is a class applying copy/outflow boundary conditions. More...

#include <outflow.h>

Inheritance diagram for SBC::Outflow:

[legend]

Collaboration diagram for SBC::Outflow:

[legend]

Public Member Functions
	Outflow ()
virtual	~Outflow ()
virtual void	getParameters () override
virtual void	initSysBoundary (creal &t, Project &project) override
virtual void	applyInitialState (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, fsgrids::perbspan perb, fsgrids::bgbspan bgb, Project &project) override
virtual void	updateState (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, fsgrids::perbspan perb, fsgrids::bgbspan bgb, creal t) override
virtual Real	fieldSolverBoundaryCondMagneticField (fsgrids::perbspan b, fsgrids::constbgbspan bgb, fsgrids::consttechnicalspan technical, const std::array< Real, 3 > &gridSpacing, const std::array< fsgrid::FsSize_t, 3 > &globalCoordinates, const fsgrid::FsStencil &stencil, cuint component) override
virtual void	fieldSolverBoundaryCondElectricField (fsgrids::efieldspan e, const fsgrid::FsStencil &stencil, cuint component) override
virtual void	fieldSolverBoundaryCondHallElectricField (fsgrids::ehallspan ehall, const fsgrid::FsStencil &stencil, cuint component) override
virtual void	fieldSolverBoundaryCondGradPeElectricField (fsgrids::egradpespan EGradPe, const fsgrid::FsStencil &stencil, cuint component) override
virtual void	fieldSolverBoundaryCondDerivatives (fsgrids::dperbspan dperb, fsgrids::dmomentsspan dmoments, const fsgrid::FsStencil &stencil, cuint RKCase, cuint component) override
virtual void	fieldSolverBoundaryCondBVOLDerivatives (fsgrids::volspan vols, const fsgrid::FsStencil &stencil, cuint component) override
virtual void	vlasovBoundaryCondition (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const CellID &cellID, const uint popID, const bool calculate_V_moments) override
virtual void	setupL2OutflowAtRestart (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid) override
virtual void	getFaces (bool *faces) override
virtual std::string	getName () const override
virtual uint	getIndex () const override
Public Member Functions inherited from SBC::OuterBoundaryCondition
virtual void	assignSysBoundary (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid)
Public Member Functions inherited from SBC::SysBoundaryCondition
	SysBoundaryCondition ()
virtual	~SysBoundaryCondition ()
virtual void	generateTemplateCell ()
virtual void	mapCellPotentialAndGetEXBDrift (std::array< Real, CellParams::N_SPATIAL_CELL_PARAMS > &cellParams)
uint	getPrecedence () const
bool	isDynamic () const
bool	updateSysBoundaryConditionsAfterLoadBalance (const dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const std::vector< CellID > &local_cells_on_boundary)
bool	doApplyUponRestart () const
void	setPeriodicity (std::array< bool, 3 > isFacePeriodic)

Static Public Member Functions
static void	addParameters ()
Static Public Member Functions inherited from SBC::SysBoundaryCondition
static void	addParameters ()
static void	setCellDerivativesToZero (fsgrids::dperbspan dperb, fsgrids::dmomentsspan dmoments, const fsgrid::FsStencil &stencil, cuint component)
static void	setCellBVOLDerivativesToZero (fsgrids::volspan vols, const fsgrid::FsStencil &stencil, cuint component)

Protected Types
enum	vlasovscheme { NONE , COPY , N_SCHEMES }

Protected Attributes
bool	facesToSkipFields [6]
bool	facesToReapply [6]
std::vector< std::string >	faceList
std::vector< std::string >	faceNoFieldsList
std::vector< OutflowSpeciesParameters >	speciesParams
Real	quenchFactor
Protected Attributes inherited from SBC::OuterBoundaryCondition
std::array< bool, 6 >	facesToProcess
Protected Attributes inherited from SBC::SysBoundaryCondition
uint	precedence
bool	dynamic
std::array< bool, 3 >	periodic
std::unordered_map< CellID, std::vector< CellID > >	allClosestNonsysboundaryCells
std::unordered_map< CellID, std::vector< CellID > >	allCloseNonsysboundaryCells
std::unordered_map< CellID, std::vector< CellID > >	allClosestL1OutflowCells
std::unordered_map< CellID, std::vector< CellID > >	allCloseL1OutflowCells
bool	applyUponRestart

Additional Inherited Members
Protected Member Functions inherited from SBC::SysBoundaryCondition
void	determineFace (bool *isThisCellOnAFace, const creal x, const creal y, const creal z, const creal dx, const creal dy, const creal dz, const bool excludeSlicesAndPeriodicDimensions=false) const
	Function used to determine on which face(s) if any the cell at given coordinates is.
void	determineFace (std::array< bool, 6 > &isThisCellOnAFace, const dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, CellID id, const bool excludeSlicesAndPeriodicDimensions=false)
	Function used to determine on which face(s) if any the cell with the given MPI id is on.
void	copyCellData (const SpatialCell from, SpatialCell to, const bool copyMomentsOnly, const uint popID, const bool copy_V_moments)
std::array< SpatialCell *, 27 > &	getFlowtoCells (const CellID &cellID)
std::array< Realf *, 27 >	getFlowtoCellsBlock (const std::array< SpatialCell *, 27 > flowtoCells, const vmesh::GlobalID blockGID, const uint popID)
int	nbrID (const int i, const int j, const int k)
void	vlasovBoundaryCopyFromTheClosestNbr (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const CellID &cellID, const bool &copyMomentsOnly, const uint popID, const bool calculate_V_moments)
void	vlasovBoundaryCopyFromTheClosestL1OutflowNbr (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const CellID &cellID, const bool &copyMomentsOnly, const uint popID, const bool calculate_V_moments)
void	vlasovBoundaryCopyFromAllClosestNbrs (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const CellID &cellID, const uint popID, const bool calculate_V_moments)
void	vlasovBoundaryFluffyCopyFromAllCloseNbrs (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const CellID &cellID, const uint popID, const bool calculate_V_moments, creal fluffiness)
std::array< int, 3 >	getTheClosestNonsysboundaryCell (fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, cint i, cint j, cint k)
std::vector< std::array< int, 3 > >	getAllClosestNonsysboundaryCells (fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, cint i, cint j, cint k)
CellID &	getTheClosestNonsysboundaryCell (const CellID &cellID)
std::vector< CellID > &	getAllClosestNonsysboundaryCells (const CellID &cellID)
std::vector< CellID > &	getAllCloseNonsysboundaryCells (const CellID &cellID)
Real	fieldBoundaryCopyFromSolvingNbrMagneticField (fsgrids::perbspan b, fsgrids::consttechnicalspan technical, const fsgrid::FsStencil &stencil, cuint component, cuint mask)
CellID &	getTheClosestL1OutflowCell (const CellID &cellID)
std::vector< CellID > &	getAllClosestL1OutflowCells (const CellID &cellID)

Detailed Description

Outflow is a class applying copy/outflow boundary conditions.

Outflow is a class handling cells tagged as sysboundarytype::OUTFLOW by this system boundary condition. It applies copy/outflow boundary conditions.

These consist in:

Copy the distribution and moments from the nearest NOT_SYSBOUNDARY cell;
Copy the perturbed B components from the nearest NOT_SYSBOUNDARY cell. EXCEPTION: the face components adjacent to the simulation domain at the +x/+y/+z faces are propagated still.

Definition at line 54 of file outflow.h.

Member Enumeration Documentation

◆ vlasovscheme

enum SBC::Outflow::vlasovscheme

protected

Enumerator
NONE
COPY
N_SCHEMES

Definition at line 119 of file outflow.h.

Constructor & Destructor Documentation

◆ Outflow()

SBC::Outflow::Outflow ( )

Definition at line 49 of file outflow.cpp.

◆ ~Outflow()

SBC::Outflow::~Outflow ( )

virtual

Definition at line 50 of file outflow.cpp.

Member Function Documentation

◆ addParameters()

void SBC::Outflow::addParameters ( )

static

Definition at line 52 of file outflow.cpp.

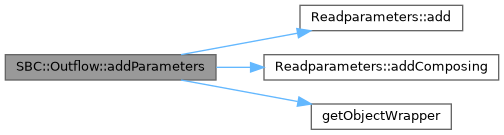

Here is the call graph for this function:

Here is the caller graph for this function:

◆ applyInitialState()

void SBC::Outflow::applyInitialState	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		fsgrids::technicalspan	technical,
		FieldSolverGrid &	fsgrid,
		fsgrids::perbspan	perb,
		fsgrids::bgbspan	bgb,
		Project &	project )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 190 of file outflow.cpp.

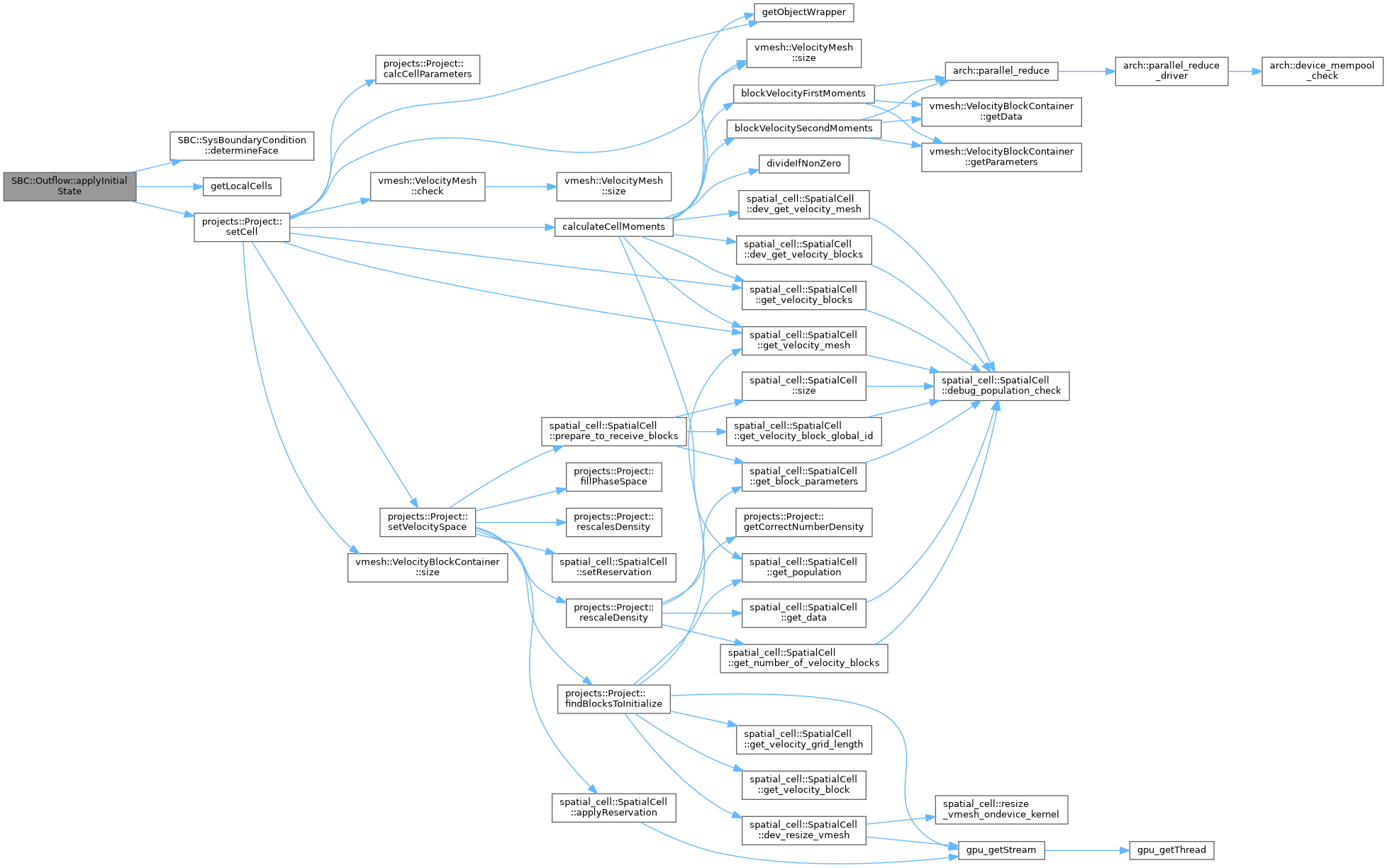

Here is the call graph for this function:

◆ fieldSolverBoundaryCondBVOLDerivatives()

void SBC::Outflow::fieldSolverBoundaryCondBVOLDerivatives	(	fsgrids::volspan	vols,
		const fsgrid::FsStencil &	stencil,
		cuint	component )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 289 of file outflow.cpp.

Here is the call graph for this function:

◆ fieldSolverBoundaryCondDerivatives()

void SBC::Outflow::fieldSolverBoundaryCondDerivatives	(	fsgrids::dperbspan	dperb,
		fsgrids::dmomentsspan	dmoments,
		const fsgrid::FsStencil &	stencil,
		cuint	RKCase,
		cuint	component )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 283 of file outflow.cpp.

Here is the call graph for this function:

◆ fieldSolverBoundaryCondElectricField()

void SBC::Outflow::fieldSolverBoundaryCondElectricField	(	fsgrids::efieldspan	e,
		const fsgrid::FsStencil &	stencil,
		cuint	component )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 244 of file outflow.cpp.

◆ fieldSolverBoundaryCondGradPeElectricField()

void SBC::Outflow::fieldSolverBoundaryCondGradPeElectricField	(	fsgrids::egradpespan	EGradPe,
		const fsgrid::FsStencil &	stencil,
		cuint	component )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 277 of file outflow.cpp.

◆ fieldSolverBoundaryCondHallElectricField()

void SBC::Outflow::fieldSolverBoundaryCondHallElectricField	(	fsgrids::ehallspan	ehall,
		const fsgrid::FsStencil &	stencil,
		cuint	component )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 249 of file outflow.cpp.

◆ fieldSolverBoundaryCondMagneticField()

Real SBC::Outflow::fieldSolverBoundaryCondMagneticField	(	fsgrids::perbspan	b,
		fsgrids::constbgbspan	bgb,
		fsgrids::consttechnicalspan	technical,
		const std::array< Real, 3 > &	gridSpacing,
		const std::array< fsgrid::FsSize_t, 3 > &	globalCoordinates,
		const fsgrid::FsStencil &	stencil,
		cuint	component )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 235 of file outflow.cpp.

Here is the call graph for this function:

◆ getFaces()

void SBC::Outflow::getFaces ( bool * faces )

overridevirtual

Function used to know which faces the boundary condition is applied to.

Parameters

faces Pointer to array of 6 bool in which the values are returned whether the corresponding face is of that type. Order: 0 x+; 1 x-; 2 y+; 3 y-; 4 z+; 5 z-

Function used in some cases to know which faces the system boundary condition is being applied to.

Parameters

faces Pointer to array of 6 bool in which the values are returned whether the corresponding face is of that type. Order: 0 x+; 1 x-; 2 y+; 3 y-; 4 z+; 5 z-

Implements SBC::SysBoundaryCondition.

Definition at line 420 of file outflow.cpp.

◆ getIndex()

uint SBC::Outflow::getIndex ( ) const

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 427 of file outflow.cpp.

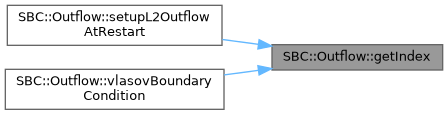

Here is the caller graph for this function:

◆ getName()

string SBC::Outflow::getName ( ) const

overridevirtual

Reimplemented from SBC::SysBoundaryCondition.

Definition at line 426 of file outflow.cpp.

◆ getParameters()

void SBC::Outflow::getParameters ( )

overridevirtual

Reimplemented from SBC::SysBoundaryCondition.

Definition at line 75 of file outflow.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initSysBoundary()

void SBC::Outflow::initSysBoundary	(	creal &	t,
		Project &	project )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 152 of file outflow.cpp.

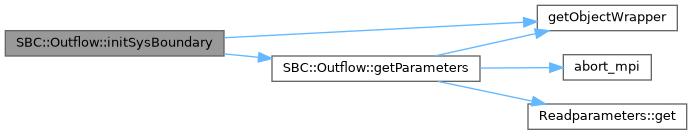

Here is the call graph for this function:

◆ setupL2OutflowAtRestart()

void SBC::Outflow::setupL2OutflowAtRestart ( dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > & mpiGrid )

overridevirtual

Reimplemented from SBC::SysBoundaryCondition.

Definition at line 329 of file outflow.cpp.

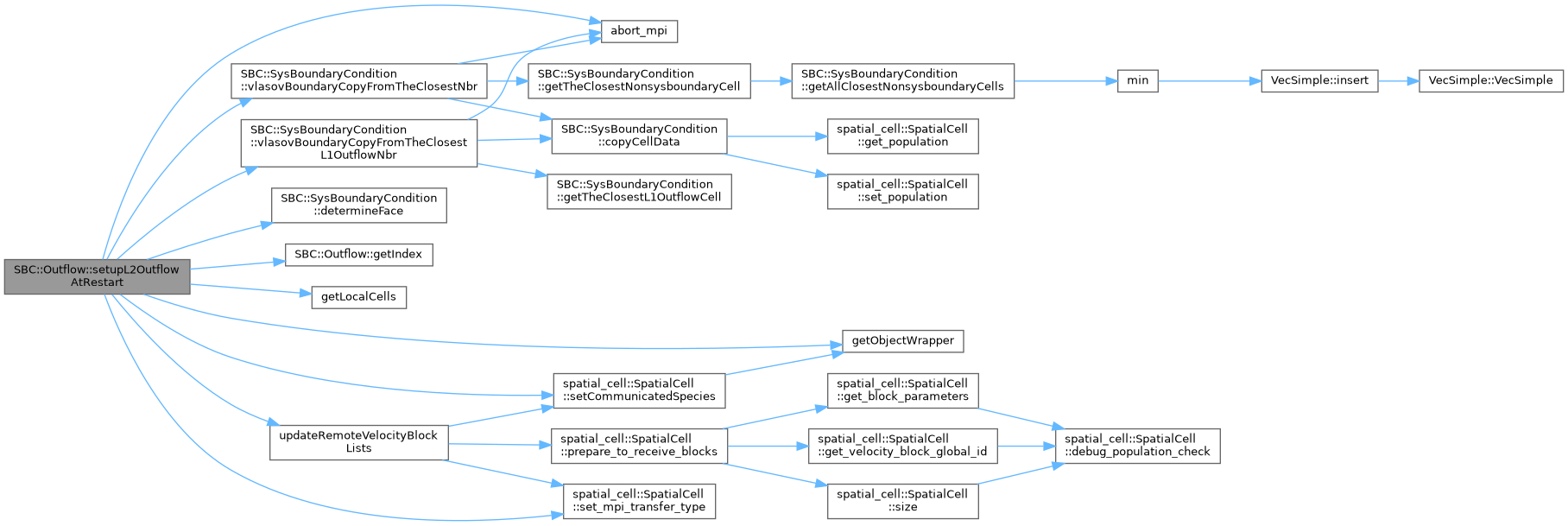

Here is the call graph for this function:

◆ updateState()

void SBC::Outflow::updateState	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		fsgrids::technicalspan	technical,
		FieldSolverGrid &	fsgrid,
		fsgrids::perbspan	perb,
		fsgrids::bgbspan	bgb,
		creal	t )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 230 of file outflow.cpp.

◆ vlasovBoundaryCondition()

void SBC::Outflow::vlasovBoundaryCondition	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		const CellID &	cellID,
		const uint	popID,
		const bool	calculate_V_moments )

overridevirtual

NOTE that this is called once for each particle species!

Parameters

mpiGrid
cellID

Implements SBC::SysBoundaryCondition.

Definition at line 299 of file outflow.cpp.

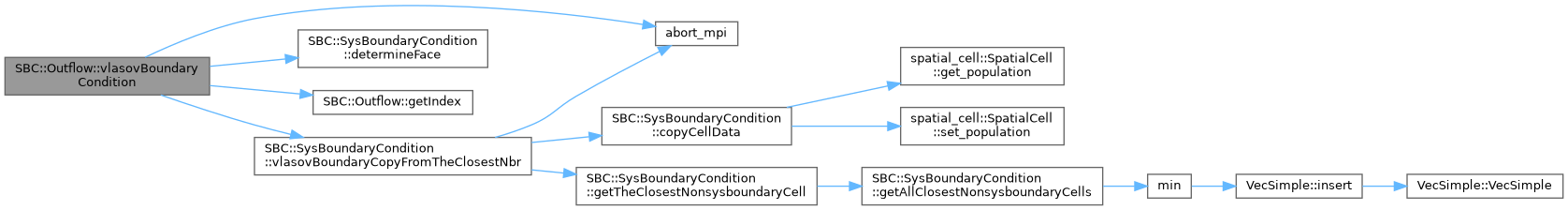

Here is the call graph for this function:

Member Data Documentation

◆ faceList

std::vector<std::string> SBC::Outflow::faceList

protected

List of faces on which outflow boundary conditions are to be applied ([xyz][+-]).

Definition at line 111 of file outflow.h.

◆ faceNoFieldsList

std::vector<std::string> SBC::Outflow::faceNoFieldsList

protected

List of faces on which no fields outflow boundary conditions are to be applied ([xyz][+-]).

Definition at line 113 of file outflow.h.

◆ facesToReapply

bool SBC::Outflow::facesToReapply[6]

protected

Array of bool telling which faces are going to be reapplied upon restart.

Definition at line 109 of file outflow.h.

◆ facesToSkipFields

bool SBC::Outflow::facesToSkipFields[6]

protected

Array of bool telling which faces are going to be processed by the fields system boundary condition.

Definition at line 107 of file outflow.h.

◆ quenchFactor

Real SBC::Outflow::quenchFactor

protected

Factor by which to quench the inflowing parts of the velocity distribution function.

Definition at line 117 of file outflow.h.

◆ speciesParams

std::vector<OutflowSpeciesParameters> SBC::Outflow::speciesParams

protected

Definition at line 114 of file outflow.h.

The documentation for this class was generated from the following files:

sysboundary/outflow.h
sysboundary/outflow.cpp

Public Member Functions

Static Public Member Functions

Protected Types

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ vlasovscheme

Constructor & Destructor Documentation

◆ Outflow()

◆ ~Outflow()

Member Function Documentation

◆ addParameters()

◆ applyInitialState()

◆ fieldSolverBoundaryCondBVOLDerivatives()

◆ fieldSolverBoundaryCondDerivatives()

◆ fieldSolverBoundaryCondElectricField()

◆ fieldSolverBoundaryCondGradPeElectricField()

◆ fieldSolverBoundaryCondHallElectricField()

◆ fieldSolverBoundaryCondMagneticField()

◆ getFaces()

◆ getIndex()

◆ getName()

◆ getParameters()

◆ initSysBoundary()

◆ setupL2OutflowAtRestart()

◆ updateState()

◆ vlasovBoundaryCondition()

Member Data Documentation

◆ faceList

◆ faceNoFieldsList

◆ facesToReapply

◆ facesToSkipFields

◆ quenchFactor

◆ speciesParams
