Copysphere is a class applying an ionosphere-ish boundary conditions. More...

#include <copysphere.h>

Inheritance diagram for SBC::Copysphere:

Collaboration diagram for SBC::Copysphere:

[legend]

Public Member Functions
	Copysphere ()
virtual	~Copysphere ()
virtual void	getParameters () override
virtual void	initSysBoundary (creal &t, Project &project) override
virtual void	assignSysBoundary (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid) override
virtual void	applyInitialState (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, fsgrids::perbspan perb, fsgrids::bgbspan bgb, Project &project) override
virtual void	updateState (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, fsgrids::perbspan perb, fsgrids::bgbspan bgb, creal t) override
virtual Real	fieldSolverBoundaryCondMagneticField (fsgrids::perbspan b, fsgrids::constbgbspan bgb, fsgrids::consttechnicalspan technical, const std::array< Real, 3 > &gridSpacing, const std::array< fsgrid::FsSize_t, 3 > &globalCoordinates, const fsgrid::FsStencil &stencil, cuint component) override
virtual void	fieldSolverBoundaryCondElectricField (fsgrids::efieldspan e, const fsgrid::FsStencil &stencil, cuint component) override
virtual void	fieldSolverBoundaryCondHallElectricField (fsgrids::ehallspan ehall, const fsgrid::FsStencil &stencil, cuint component) override
virtual void	fieldSolverBoundaryCondGradPeElectricField (fsgrids::egradpespan EGradPe, const fsgrid::FsStencil &stencil, cuint component) override
virtual void	fieldSolverBoundaryCondDerivatives (fsgrids::dperbspan dperb, fsgrids::dmomentsspan dmoments, const fsgrid::FsStencil &stencil, cuint RKCase, cuint component) override
virtual void	fieldSolverBoundaryCondBVOLDerivatives (fsgrids::volspan vols, const fsgrid::FsStencil &stencil, cuint component) override
virtual void	vlasovBoundaryCondition (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const CellID &cellID, const uint popID, const bool calculate_V_moments) override
void	getFaces (bool *faces) override
virtual std::string	getName () const override
virtual uint	getIndex () const override
void	generateTemplateCell (Project &project)
void	setCellFromTemplate (SpatialCell *cell, const uint popID)
std::array< Real, 3 >	fieldSolverGetNormalDirection (fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, cint i, cint j, cint k)
Public Member Functions inherited from SBC::SysBoundaryCondition
	SysBoundaryCondition ()
virtual	~SysBoundaryCondition ()
virtual void	generateTemplateCell ()
virtual void	mapCellPotentialAndGetEXBDrift (std::array< Real, CellParams::N_SPATIAL_CELL_PARAMS > &cellParams)
virtual void	setupL2OutflowAtRestart (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid)
uint	getPrecedence () const
bool	isDynamic () const
bool	updateSysBoundaryConditionsAfterLoadBalance (const dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const std::vector< CellID > &local_cells_on_boundary)
bool	doApplyUponRestart () const
void	setPeriodicity (std::array< bool, 3 > isFacePeriodic)

Static Public Member Functions
static void	addParameters ()
Static Public Member Functions inherited from SBC::SysBoundaryCondition
static void	addParameters ()
static void	setCellDerivativesToZero (fsgrids::dperbspan dperb, fsgrids::dmomentsspan dmoments, const fsgrid::FsStencil &stencil, cuint component)
static void	setCellBVOLDerivativesToZero (fsgrids::volspan vols, const fsgrid::FsStencil &stencil, cuint component)

Public Attributes
Real	center [3]
Real	radius
uint	geometry
std::vector< CopysphereSpeciesParameters >	speciesParams
bool	zeroPerB
spatial_cell::SpatialCell	templateCell

Additional Inherited Members
Protected Member Functions inherited from SBC::SysBoundaryCondition
void	determineFace (bool *isThisCellOnAFace, const creal x, const creal y, const creal z, const creal dx, const creal dy, const creal dz, const bool excludeSlicesAndPeriodicDimensions=false) const
	Function used to determine on which face(s) if any the cell at given coordinates is.
void	determineFace (std::array< bool, 6 > &isThisCellOnAFace, const dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, CellID id, const bool excludeSlicesAndPeriodicDimensions=false)
	Function used to determine on which face(s) if any the cell with the given MPI id is on.
void	copyCellData (const SpatialCell from, SpatialCell to, const bool copyMomentsOnly, const uint popID, const bool copy_V_moments)
std::array< SpatialCell *, 27 > &	getFlowtoCells (const CellID &cellID)
std::array< Realf *, 27 >	getFlowtoCellsBlock (const std::array< SpatialCell *, 27 > flowtoCells, const vmesh::GlobalID blockGID, const uint popID)
int	nbrID (const int i, const int j, const int k)
void	vlasovBoundaryCopyFromTheClosestNbr (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const CellID &cellID, const bool &copyMomentsOnly, const uint popID, const bool calculate_V_moments)
void	vlasovBoundaryCopyFromTheClosestL1OutflowNbr (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const CellID &cellID, const bool &copyMomentsOnly, const uint popID, const bool calculate_V_moments)
void	vlasovBoundaryCopyFromAllClosestNbrs (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const CellID &cellID, const uint popID, const bool calculate_V_moments)
void	vlasovBoundaryFluffyCopyFromAllCloseNbrs (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const CellID &cellID, const uint popID, const bool calculate_V_moments, creal fluffiness)
std::array< int, 3 >	getTheClosestNonsysboundaryCell (fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, cint i, cint j, cint k)
std::vector< std::array< int, 3 > >	getAllClosestNonsysboundaryCells (fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, cint i, cint j, cint k)
CellID &	getTheClosestNonsysboundaryCell (const CellID &cellID)
std::vector< CellID > &	getAllClosestNonsysboundaryCells (const CellID &cellID)
std::vector< CellID > &	getAllCloseNonsysboundaryCells (const CellID &cellID)
Real	fieldBoundaryCopyFromSolvingNbrMagneticField (fsgrids::perbspan b, fsgrids::consttechnicalspan technical, const fsgrid::FsStencil &stencil, cuint component, cuint mask)
CellID &	getTheClosestL1OutflowCell (const CellID &cellID)
std::vector< CellID > &	getAllClosestL1OutflowCells (const CellID &cellID)
Protected Attributes inherited from SBC::SysBoundaryCondition
uint	precedence
bool	dynamic
std::array< bool, 3 >	periodic
std::unordered_map< CellID, std::vector< CellID > >	allClosestNonsysboundaryCells
std::unordered_map< CellID, std::vector< CellID > >	allCloseNonsysboundaryCells
std::unordered_map< CellID, std::vector< CellID > >	allClosestL1OutflowCells
std::unordered_map< CellID, std::vector< CellID > >	allCloseL1OutflowCells
bool	applyUponRestart

Detailed Description

Copysphere is a class applying an ionosphere-ish boundary conditions.

Copysphere is a class handling cells tagged as sysboundarytype::COPYSPHERE by this system boundary condition. It applies copy boundary conditions to perturbed magnetic field.

These consist in:

Do nothing for the distribution (keep the initial state constant in time);
Copy the closest neighbors' perturbed B and average it;
Null out the electric fields.

For 3D magnetospheric simulations, you might be interesting in trying the ionosphere boundary instead!

Definition at line 55 of file copysphere.h.

Constructor & Destructor Documentation

◆ Copysphere()

SBC::Copysphere::Copysphere ( )

Definition at line 49 of file copysphere.cpp.

Here is the call graph for this function:

◆ ~Copysphere()

SBC::Copysphere::~Copysphere ( )

virtual

Definition at line 51 of file copysphere.cpp.

Member Function Documentation

◆ addParameters()

void SBC::Copysphere::addParameters ( )

static

Definition at line 53 of file copysphere.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ applyInitialState()

void SBC::Copysphere::applyInitialState	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		fsgrids::technicalspan	technical,
		FieldSolverGrid &	fsgrid,
		fsgrids::perbspan	perb,
		fsgrids::bgbspan	bgb,
		Project &	project )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 182 of file copysphere.cpp.

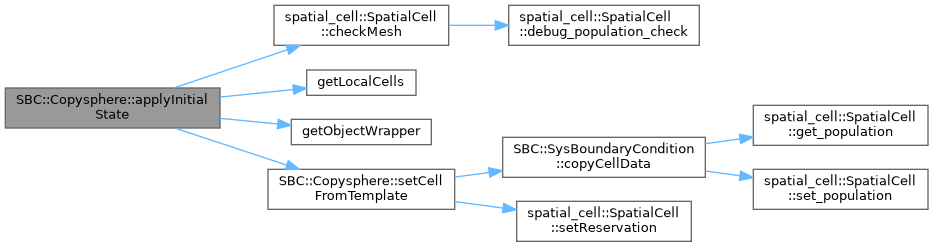

Here is the call graph for this function:

◆ assignSysBoundary()

void SBC::Copysphere::assignSysBoundary	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		fsgrids::technicalspan	technical,
		FieldSolverGrid &	fsgrid )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 160 of file copysphere.cpp.

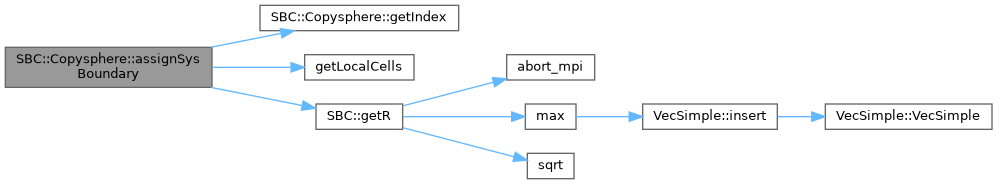

Here is the call graph for this function:

◆ fieldSolverBoundaryCondBVOLDerivatives()

void SBC::Copysphere::fieldSolverBoundaryCondBVOLDerivatives	(	fsgrids::volspan	vols,
		const fsgrid::FsStencil &	stencil,
		cuint	component )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 612 of file copysphere.cpp.

Here is the call graph for this function:

◆ fieldSolverBoundaryCondDerivatives()

void SBC::Copysphere::fieldSolverBoundaryCondDerivatives	(	fsgrids::dperbspan	dperb,
		fsgrids::dmomentsspan	dmoments,
		const fsgrid::FsStencil &	stencil,
		cuint	RKCase,
		cuint	component )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 606 of file copysphere.cpp.

Here is the call graph for this function:

◆ fieldSolverBoundaryCondElectricField()

void SBC::Copysphere::fieldSolverBoundaryCondElectricField	(	fsgrids::efieldspan	e,
		const fsgrid::FsStencil &	stencil,
		cuint	component )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 568 of file copysphere.cpp.

◆ fieldSolverBoundaryCondGradPeElectricField()

void SBC::Copysphere::fieldSolverBoundaryCondGradPeElectricField	(	fsgrids::egradpespan	EGradPe,
		const fsgrid::FsStencil &	stencil,
		cuint	component )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 600 of file copysphere.cpp.

◆ fieldSolverBoundaryCondHallElectricField()

void SBC::Copysphere::fieldSolverBoundaryCondHallElectricField	(	fsgrids::ehallspan	ehall,
		const fsgrid::FsStencil &	stencil,
		cuint	component )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 573 of file copysphere.cpp.

◆ fieldSolverBoundaryCondMagneticField()

Real SBC::Copysphere::fieldSolverBoundaryCondMagneticField	(	fsgrids::perbspan	b,
		fsgrids::constbgbspan	bgb,
		fsgrids::consttechnicalspan	technical,
		const std::array< Real, 3 > &	gridSpacing,
		const std::array< fsgrid::FsSize_t, 3 > &	globalCoordinates,
		const fsgrid::FsStencil &	stencil,
		cuint	component )

overridevirtual

We want here to

– Average perturbed face B from the nearest neighbours

– Retain only the normal components of perturbed face B

Implements SBC::SysBoundaryCondition.

Definition at line 480 of file copysphere.cpp.

◆ fieldSolverGetNormalDirection()

std::array< Real, 3 > SBC::Copysphere::fieldSolverGetNormalDirection	(	fsgrids::technicalspan	technical,
		FieldSolverGrid &	fsgrid,
		cint	i,
		cint	j,
		cint	k )

Definition at line 203 of file copysphere.cpp.

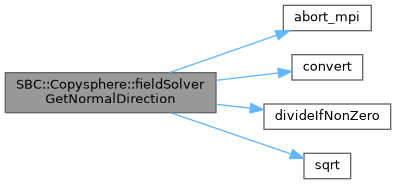

Here is the call graph for this function:

◆ generateTemplateCell()

void SBC::Copysphere::generateTemplateCell ( Project & project )

NOTE: This function must initialize all particle species!

Parameters

project

Definition at line 629 of file copysphere.cpp.

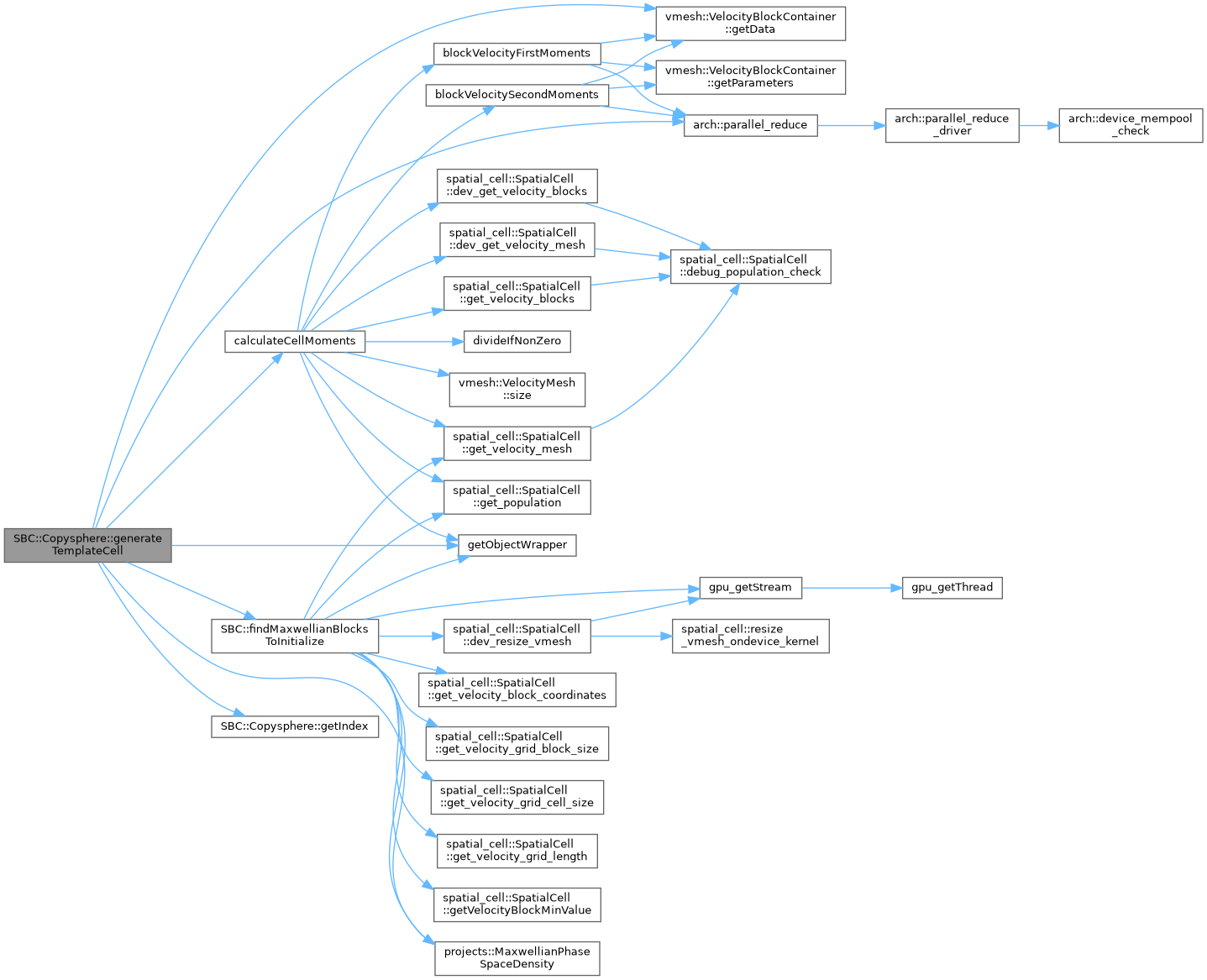

Here is the call graph for this function:

◆ getFaces()

void SBC::Copysphere::getFaces ( bool * faces )

overridevirtual

Function used to know which faces the boundary condition is applied to.

Parameters

faces Pointer to array of 6 bool in which the values are returned whether the corresponding face is of that type. Order: 0 x+; 1 x-; 2 y+; 3 y-; 4 z+; 5 z-

Function used in some cases to know which faces the system boundary condition is being applied to.

Parameters

faces Pointer to array of 6 bool in which the values are returned whether the corresponding face is of that type. Order: 0 x+; 1 x-; 2 y+; 3 y-; 4 z+; 5 z-

Implements SBC::SysBoundaryCondition.

Definition at line 740 of file copysphere.cpp.

◆ getIndex()

uint SBC::Copysphere::getIndex ( ) const

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 747 of file copysphere.cpp.

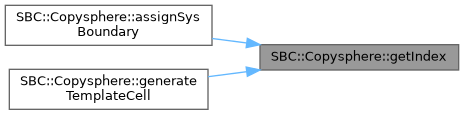

Here is the caller graph for this function:

◆ getName()

std::string SBC::Copysphere::getName ( ) const

overridevirtual

Reimplemented from SBC::SysBoundaryCondition.

Definition at line 739 of file copysphere.cpp.

◆ getParameters()

void SBC::Copysphere::getParameters ( )

overridevirtual

Reimplemented from SBC::SysBoundaryCondition.

Definition at line 76 of file copysphere.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initSysBoundary()

void SBC::Copysphere::initSysBoundary	(	creal &	t,
		Project &	project )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 122 of file copysphere.cpp.

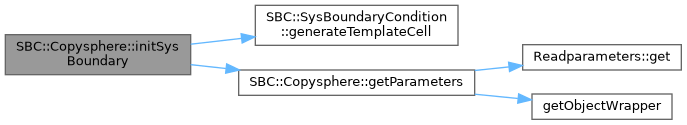

Here is the call graph for this function:

◆ setCellFromTemplate()

void SBC::Copysphere::setCellFromTemplate	(	SpatialCell *	cell,
		const uint	popID )

Definition at line 731 of file copysphere.cpp.

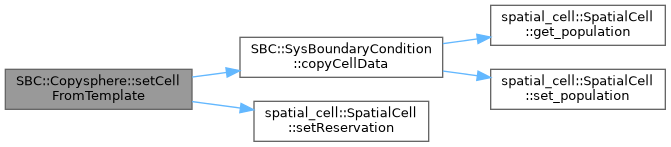

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updateState()

void SBC::Copysphere::updateState	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		fsgrids::technicalspan	technical,
		FieldSolverGrid &	fsgrid,
		fsgrids::perbspan	perb,
		fsgrids::bgbspan	bgb,
		creal	t )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 742 of file copysphere.cpp.

◆ vlasovBoundaryCondition()

void SBC::Copysphere::vlasovBoundaryCondition	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		const CellID &	cellID,
		const uint	popID,
		const bool	calculate_V_moments )

overridevirtual

This function computes the Vlasov (distribution function) boundary condition for the given particle species only. It is not! allowed to change block structure in cell.

Parameters

mpiGrid	Parallel grid.
cellID	Spatial cell ID.
popID	Particle species ID.

Implements SBC::SysBoundaryCondition.

Definition at line 619 of file copysphere.cpp.

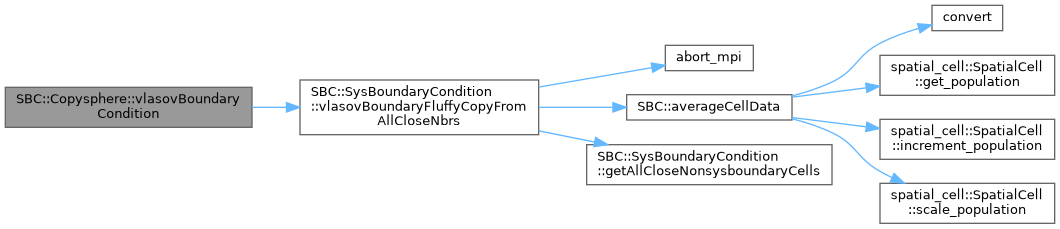

Here is the call graph for this function:

Member Data Documentation

◆ center

Real SBC::Copysphere::center[3]

Coordinates of the centre of the copy sphere.

Definition at line 112 of file copysphere.h.

◆ geometry

uint SBC::Copysphere::geometry

Geometry of the copy sphere, 0: inf-norm (diamond), 1: 1-norm (square), 2: 2-norm (circle, DEFAULT), 3: polar-plane cylinder with line dipole.

Definition at line 114 of file copysphere.h.

◆ radius

Real SBC::Copysphere::radius

Radius of the copy sphere.

Definition at line 113 of file copysphere.h.

◆ speciesParams

std::vector<CopysphereSpeciesParameters> SBC::Copysphere::speciesParams

Definition at line 116 of file copysphere.h.

◆ templateCell

spatial_cell::SpatialCell SBC::Copysphere::templateCell

Definition at line 119 of file copysphere.h.

◆ zeroPerB

bool SBC::Copysphere::zeroPerB

Definition at line 117 of file copysphere.h.

The documentation for this class was generated from the following files:

sysboundary/copysphere.h
sysboundary/copysphere.cpp

Public Member Functions

Static Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Copysphere()

◆ ~Copysphere()

Member Function Documentation

◆ addParameters()

◆ applyInitialState()

◆ assignSysBoundary()

◆ fieldSolverBoundaryCondBVOLDerivatives()

◆ fieldSolverBoundaryCondDerivatives()

◆ fieldSolverBoundaryCondElectricField()

◆ fieldSolverBoundaryCondGradPeElectricField()

◆ fieldSolverBoundaryCondHallElectricField()

◆ fieldSolverBoundaryCondMagneticField()

◆ fieldSolverGetNormalDirection()

◆ generateTemplateCell()

◆ getFaces()

◆ getIndex()

◆ getName()

◆ getParameters()

◆ initSysBoundary()

◆ setCellFromTemplate()

◆ updateState()

◆ vlasovBoundaryCondition()

Member Data Documentation

◆ center

◆ geometry

◆ radius

◆ speciesParams

◆ templateCell

◆ zeroPerB
