Base class for boundary conditions with settings and parameters read from file. More...

#include <inflow.h>

Inheritance diagram for SBC::Inflow:

[legend]

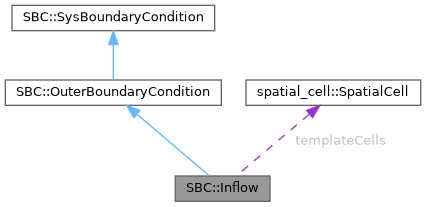

Collaboration diagram for SBC::Inflow:

[legend]

Public Member Functions
	Inflow ()
virtual	~Inflow ()
virtual void	initSysBoundary (creal &t, Project &project) override
virtual void	applyInitialState (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, fsgrids::perbspan perb, fsgrids::bgbspan bgb, Project &project) override
virtual void	updateState (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, fsgrids::perbspan perb, fsgrids::bgbspan bgb, creal t) override
virtual Real	fieldSolverBoundaryCondMagneticField (fsgrids::perbspan b, fsgrids::constbgbspan bgb, fsgrids::consttechnicalspan technical, const std::array< Real, 3 > &gridSpacing, const std::array< fsgrid::FsSize_t, 3 > &globalCoordinates, const fsgrid::FsStencil &stencil, cuint component) override
virtual void	fieldSolverBoundaryCondElectricField (fsgrids::efieldspan e, const fsgrid::FsStencil &stencil, cuint component) override
virtual void	fieldSolverBoundaryCondHallElectricField (fsgrids::ehallspan ehall, const fsgrid::FsStencil &stencil, cuint component) override
virtual void	fieldSolverBoundaryCondGradPeElectricField (fsgrids::egradpespan EGradPe, const fsgrid::FsStencil &stencil, cuint component) override
virtual void	fieldSolverBoundaryCondDerivatives (fsgrids::dperbspan dperb, fsgrids::dmomentsspan dmoments, const fsgrid::FsStencil &stencil, cuint RKCase, cuint component) override
virtual void	fieldSolverBoundaryCondBVOLDerivatives (fsgrids::volspan vols, const fsgrid::FsStencil &stencil, cuint component) override
virtual void	vlasovBoundaryCondition (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const CellID &cellID, const uint popID, const bool doCalcMomentsV) override
virtual void	getFaces (bool *faces) override
virtual std::string	getName () const override
virtual uint	getIndex () const =0
Public Member Functions inherited from SBC::OuterBoundaryCondition
virtual void	assignSysBoundary (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid)
Public Member Functions inherited from SBC::SysBoundaryCondition
	SysBoundaryCondition ()
virtual	~SysBoundaryCondition ()
virtual void	getParameters ()
virtual void	generateTemplateCell ()
virtual void	mapCellPotentialAndGetEXBDrift (std::array< Real, CellParams::N_SPATIAL_CELL_PARAMS > &cellParams)
virtual void	setupL2OutflowAtRestart (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid)
uint	getPrecedence () const
bool	isDynamic () const
bool	updateSysBoundaryConditionsAfterLoadBalance (const dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const std::vector< CellID > &local_cells_on_boundary)
bool	doApplyUponRestart () const
void	setPeriodicity (std::array< bool, 3 > isFacePeriodic)

Protected Member Functions
std::vector< std::vector< Real > >	loadFile (const char *file, unsigned int nParams)
void	loadInputData (const uint popID)
void	interpolate (const int inputDataIndex, const uint popID, creal t, Real *outputData)
void	generateTemplateCells (creal t)
virtual void	generateTemplateCell (spatial_cell::SpatialCell &templateCell, Real(&B)[3], int inputDataIndex, creal t)
void	setCellsFromTemplate (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const uint popID)
void	setBFromTemplate (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, fsgrids::perbspan perb, fsgrids::bgbspan bgb, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, const bool resetSolved)
Protected Member Functions inherited from SBC::SysBoundaryCondition
void	determineFace (bool *isThisCellOnAFace, const creal x, const creal y, const creal z, const creal dx, const creal dy, const creal dz, const bool excludeSlicesAndPeriodicDimensions=false) const
	Function used to determine on which face(s) if any the cell at given coordinates is.
void	determineFace (std::array< bool, 6 > &isThisCellOnAFace, const dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, CellID id, const bool excludeSlicesAndPeriodicDimensions=false)
	Function used to determine on which face(s) if any the cell with the given MPI id is on.
void	copyCellData (const SpatialCell from, SpatialCell to, const bool copyMomentsOnly, const uint popID, const bool copy_V_moments)
std::array< SpatialCell *, 27 > &	getFlowtoCells (const CellID &cellID)
std::array< Realf *, 27 >	getFlowtoCellsBlock (const std::array< SpatialCell *, 27 > flowtoCells, const vmesh::GlobalID blockGID, const uint popID)
int	nbrID (const int i, const int j, const int k)
void	vlasovBoundaryCopyFromTheClosestNbr (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const CellID &cellID, const bool &copyMomentsOnly, const uint popID, const bool calculate_V_moments)
void	vlasovBoundaryCopyFromTheClosestL1OutflowNbr (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const CellID &cellID, const bool &copyMomentsOnly, const uint popID, const bool calculate_V_moments)
void	vlasovBoundaryCopyFromAllClosestNbrs (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const CellID &cellID, const uint popID, const bool calculate_V_moments)
void	vlasovBoundaryFluffyCopyFromAllCloseNbrs (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const CellID &cellID, const uint popID, const bool calculate_V_moments, creal fluffiness)
std::array< int, 3 >	getTheClosestNonsysboundaryCell (fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, cint i, cint j, cint k)
std::vector< std::array< int, 3 > >	getAllClosestNonsysboundaryCells (fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, cint i, cint j, cint k)
CellID &	getTheClosestNonsysboundaryCell (const CellID &cellID)
std::vector< CellID > &	getAllClosestNonsysboundaryCells (const CellID &cellID)
std::vector< CellID > &	getAllCloseNonsysboundaryCells (const CellID &cellID)
Real	fieldBoundaryCopyFromSolvingNbrMagneticField (fsgrids::perbspan b, fsgrids::consttechnicalspan technical, const fsgrid::FsStencil &stencil, cuint component, cuint mask)
CellID &	getTheClosestL1OutflowCell (const CellID &cellID)
std::vector< CellID > &	getAllClosestL1OutflowCells (const CellID &cellID)

Protected Attributes
spatial_cell::SpatialCell	templateCells [6]
Real	templateB [6][3]
Real	tInterval
Real	tLastApply
std::vector< std::string >	faceList
std::vector< InflowSpeciesParameters >	speciesParams
Protected Attributes inherited from SBC::OuterBoundaryCondition
std::array< bool, 6 >	facesToProcess
Protected Attributes inherited from SBC::SysBoundaryCondition
uint	precedence
bool	dynamic
std::array< bool, 3 >	periodic
std::unordered_map< CellID, std::vector< CellID > >	allClosestNonsysboundaryCells
std::unordered_map< CellID, std::vector< CellID > >	allCloseNonsysboundaryCells
std::unordered_map< CellID, std::vector< CellID > >	allClosestL1OutflowCells
std::unordered_map< CellID, std::vector< CellID > >	allCloseL1OutflowCells
bool	applyUponRestart

Additional Inherited Members
Static Public Member Functions inherited from SBC::SysBoundaryCondition
static void	addParameters ()
static void	setCellDerivativesToZero (fsgrids::dperbspan dperb, fsgrids::dmomentsspan dmoments, const fsgrid::FsStencil &stencil, cuint component)
static void	setCellBVOLDerivativesToZero (fsgrids::volspan vols, const fsgrid::FsStencil &stencil, cuint component)

Detailed Description

Base class for boundary conditions with settings and parameters read from file.

Inflow is a base class for e.g. SysBoundaryConditon::Maxwellian. It defines methods to set boundary conditions on the faces of the simulation domain.

This class handles the import and interpolation in time of the input parameters read from file as well as the assignment of the state from the template cells.

The daughter classes have then to handle parameters and generate the template cells as wished from the data returned.

Definition at line 55 of file inflow.h.

Constructor & Destructor Documentation

◆ Inflow()

SBC::Inflow::Inflow ( )

Definition at line 46 of file inflow.cpp.

Here is the caller graph for this function:

◆ ~Inflow()

SBC::Inflow::~Inflow ( )

virtual

Definition at line 47 of file inflow.cpp.

Member Function Documentation

◆ applyInitialState()

void SBC::Inflow::applyInitialState	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		fsgrids::technicalspan	technical,
		FieldSolverGrid &	fsgrid,
		fsgrids::perbspan	perb,
		fsgrids::bgbspan	bgb,
		Project &	project )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 82 of file inflow.cpp.

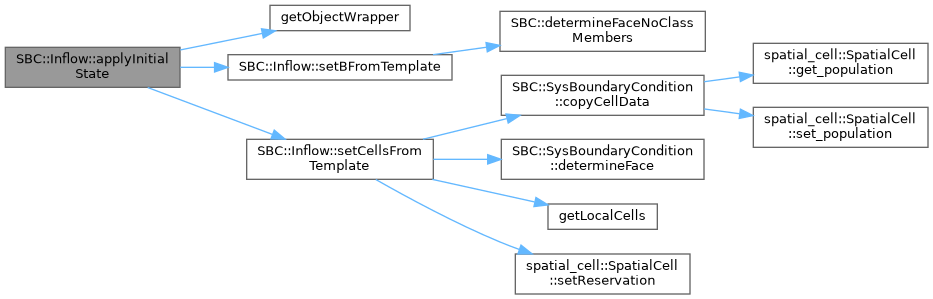

Here is the call graph for this function:

◆ fieldSolverBoundaryCondBVOLDerivatives()

void SBC::Inflow::fieldSolverBoundaryCondBVOLDerivatives	(	fsgrids::volspan	vols,
		const fsgrid::FsStencil &	stencil,
		cuint	component )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 198 of file inflow.cpp.

Here is the call graph for this function:

◆ fieldSolverBoundaryCondDerivatives()

void SBC::Inflow::fieldSolverBoundaryCondDerivatives	(	fsgrids::dperbspan	dperb,
		fsgrids::dmomentsspan	dmoments,
		const fsgrid::FsStencil &	stencil,
		cuint	RKCase,
		cuint	component )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 192 of file inflow.cpp.

Here is the call graph for this function:

◆ fieldSolverBoundaryCondElectricField()

void SBC::Inflow::fieldSolverBoundaryCondElectricField	(	fsgrids::efieldspan	e,
		const fsgrid::FsStencil &	stencil,
		cuint	component )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 154 of file inflow.cpp.

◆ fieldSolverBoundaryCondGradPeElectricField()

void SBC::Inflow::fieldSolverBoundaryCondGradPeElectricField	(	fsgrids::egradpespan	EGradPe,
		const fsgrid::FsStencil &	stencil,
		cuint	component )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 186 of file inflow.cpp.

◆ fieldSolverBoundaryCondHallElectricField()

void SBC::Inflow::fieldSolverBoundaryCondHallElectricField	(	fsgrids::ehallspan	ehall,
		const fsgrid::FsStencil &	stencil,
		cuint	component )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 159 of file inflow.cpp.

Here is the call graph for this function:

◆ fieldSolverBoundaryCondMagneticField()

Real SBC::Inflow::fieldSolverBoundaryCondMagneticField	(	fsgrids::perbspan	b,
		fsgrids::constbgbspan	bgb,
		fsgrids::consttechnicalspan	technical,
		const std::array< Real, 3 > &	gridSpacing,
		const std::array< fsgrid::FsSize_t, 3 > &	globalCoordinates,
		const fsgrid::FsStencil &	stencil,
		cuint	component )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 123 of file inflow.cpp.

Here is the call graph for this function:

◆ generateTemplateCell()

virtual void SBC::Inflow::generateTemplateCell	(	spatial_cell::SpatialCell &	templateCell,
		Real(&)	B[3],
		int	inputDataIndex,
		creal	t )

inlineprotectedvirtual

Reimplemented in SBC::Maxwellian.

Definition at line 120 of file inflow.h.

◆ generateTemplateCells()

void SBC::Inflow::generateTemplateCells ( creal t )

protected

Loops through the array of template cells and generates the ones needed. The function generateTemplateCell is defined in the child class to have the specific condition needed.

Parameters

t	Simulation time

See also: generateTemplateCell

Definition at line 375 of file inflow.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getFaces()

void SBC::Inflow::getFaces ( bool * faces )

overridevirtual

Function used to know which faces the boundary condition is applied to.

Parameters

faces Pointer to array of 6 bool in which the values are returned whether the corresponding face is of that type. Order: 0 x+; 1 x-; 2 y+; 3 y-; 4 z+; 5 z-

Function used in some cases to know which faces the system boundary condition is being applied to.

Parameters

faces Pointer to array of 6 bool in which the values are returned whether the corresponding face is of that type. Order: 0 x+; 1 x-; 2 y+; 3 y-; 4 z+; 5 z-

Implements SBC::SysBoundaryCondition.

Definition at line 286 of file inflow.cpp.

◆ getIndex()

virtual uint SBC::Inflow::getIndex ( ) const

pure virtual

Implements SBC::SysBoundaryCondition.

Implemented in SBC::Maxwellian.

◆ getName()

virtual std::string SBC::Inflow::getName ( ) const

inlineoverridevirtual

Reimplemented from SBC::SysBoundaryCondition.

Reimplemented in SBC::Maxwellian.

Definition at line 93 of file inflow.h.

◆ initSysBoundary()

void SBC::Inflow::initSysBoundary	(	creal &	t,
		Project &	project )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 49 of file inflow.cpp.

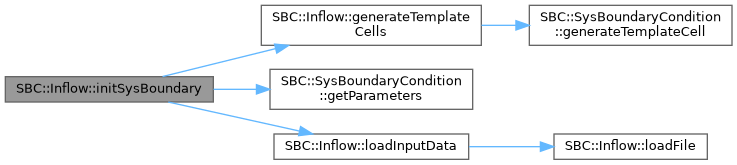

Here is the call graph for this function:

◆ interpolate()

void SBC::Inflow::interpolate	(	const int	inputDataIndex,
		const uint	popID,
		creal	t,
		Real *	outputData )

protected

Interpolate the input data to the given time. The first entry of each line is assumed to be the time.

Parameters

inputDataIndex	Index used to get the correct face's input data.
t	Current simulation time.
outputData	Pointer to the location where to write the result. Make sure from the calling side that nParams Real values can be written there!

Definition at line 390 of file inflow.cpp.

Here is the caller graph for this function:

◆ loadFile()

vector< std::vector< Real > > SBC::Inflow::loadFile	(	const char *	fn,
		unsigned int	nParams )

protected

Load inflow boundary data from given file. The number of entries per line is given by nParams which is defined as a parameter from the configuration file/command line.

Parameters

fn	Name of the data file.

Return values

dataset Vector of Real vectors.

Definition at line 307 of file inflow.cpp.

Here is the caller graph for this function:

◆ loadInputData()

void SBC::Inflow::loadInputData ( const uint popID )

protected

Definition at line 292 of file inflow.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setBFromTemplate()

void SBC::Inflow::setBFromTemplate	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		fsgrids::perbspan	perb,
		fsgrids::bgbspan	bgb,
		fsgrids::technicalspan	technical,
		FieldSolverGrid &	fsgrid,
		const bool	resetSolved )

protected

Definition at line 209 of file inflow.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setCellsFromTemplate()

void SBC::Inflow::setCellsFromTemplate	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		const uint	popID )

protected

Definition at line 250 of file inflow.cpp.

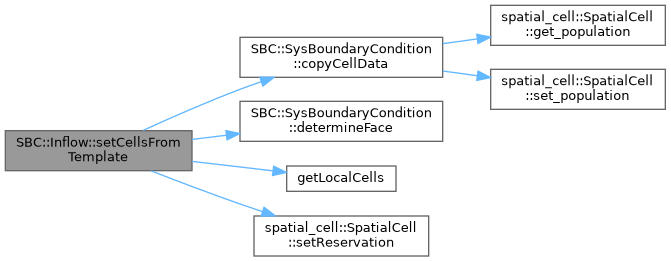

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updateState()

void SBC::Inflow::updateState	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		fsgrids::technicalspan	technical,
		FieldSolverGrid &	fsgrid,
		fsgrids::perbspan	perb,
		fsgrids::bgbspan	bgb,
		creal	t )

overridevirtual

Implements SBC::SysBoundaryCondition.

Definition at line 97 of file inflow.cpp.

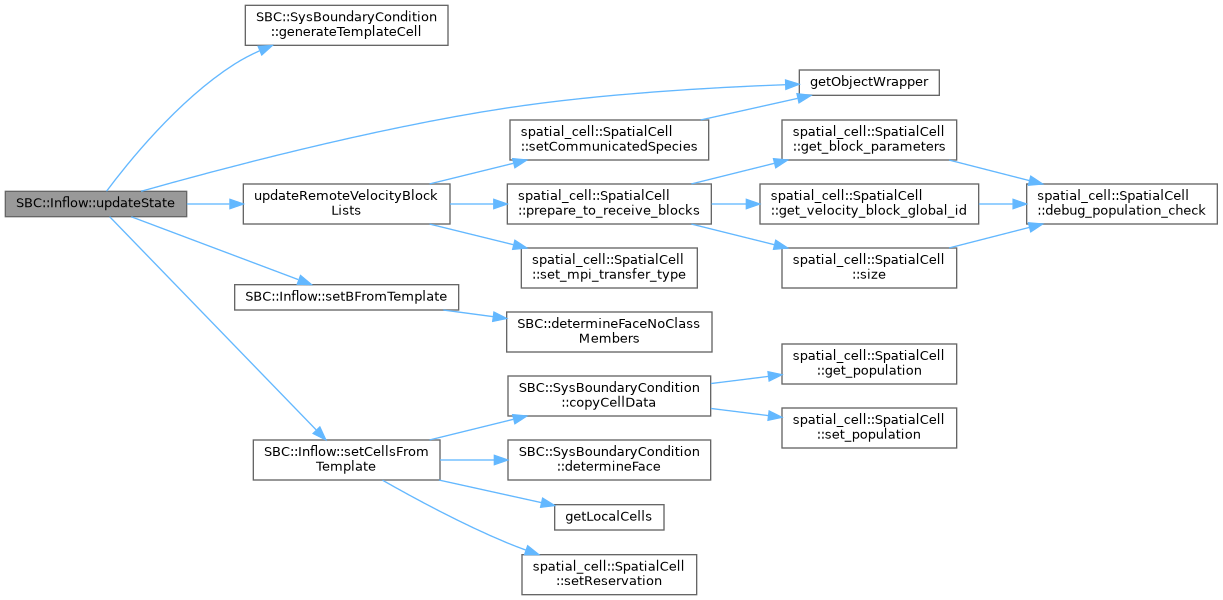

Here is the call graph for this function:

◆ vlasovBoundaryCondition()

void SBC::Inflow::vlasovBoundaryCondition	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		const CellID &	cellID,
		const uint	popID,
		const bool	calculate_V_moments )

overridevirtual

This function computes the Vlasov (distribution function) boundary condition for the given particle species only. It is not! allowed to change block structure in cell.

Parameters

mpiGrid	Parallel grid.
cellID	Spatial cell ID.
popID	Particle species ID.

Implements SBC::SysBoundaryCondition.

Definition at line 203 of file inflow.cpp.

Member Data Documentation

◆ faceList

std::vector<std::string> SBC::Inflow::faceList

protected

List of faces on which inflow boundary conditions are to be applied ([xyz][+-]).

Definition at line 113 of file inflow.h.

◆ speciesParams

std::vector<InflowSpeciesParameters> SBC::Inflow::speciesParams

protected

Definition at line 114 of file inflow.h.

◆ templateB

Real SBC::Inflow::templateB[6][3]

protected

Definition at line 107 of file inflow.h.

◆ templateCells

spatial_cell::SpatialCell SBC::Inflow::templateCells[6]

protected

Array of template spatial cells replicated over the corresponding simulation volume face. Only the template for an active face is actually being touched at all by the code.

Definition at line 106 of file inflow.h.

◆ tInterval

Real SBC::Inflow::tInterval

protected

Time interval for applying the dynamic BC.

Definition at line 109 of file inflow.h.

◆ tLastApply

Real SBC::Inflow::tLastApply

protected

Last simulation time the dynamic BC is applied.

Definition at line 111 of file inflow.h.

The documentation for this class was generated from the following files:

sysboundary/inflow.h
sysboundary/inflow.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Inflow()

◆ ~Inflow()

Member Function Documentation

◆ applyInitialState()

◆ fieldSolverBoundaryCondBVOLDerivatives()

◆ fieldSolverBoundaryCondDerivatives()

◆ fieldSolverBoundaryCondElectricField()

◆ fieldSolverBoundaryCondGradPeElectricField()

◆ fieldSolverBoundaryCondHallElectricField()

◆ fieldSolverBoundaryCondMagneticField()

◆ generateTemplateCell()

◆ generateTemplateCells()

◆ getFaces()

◆ getIndex()

◆ getName()

◆ initSysBoundary()

◆ interpolate()

◆ loadFile()

◆ loadInputData()

◆ setBFromTemplate()

◆ setCellsFromTemplate()

◆ updateState()

◆ vlasovBoundaryCondition()

Member Data Documentation

◆ faceList

◆ speciesParams

◆ templateB

◆ templateCells

◆ tInterval

◆ tLastApply
