Londrillo – Del Zanna upwind constrained transport field solver. More...

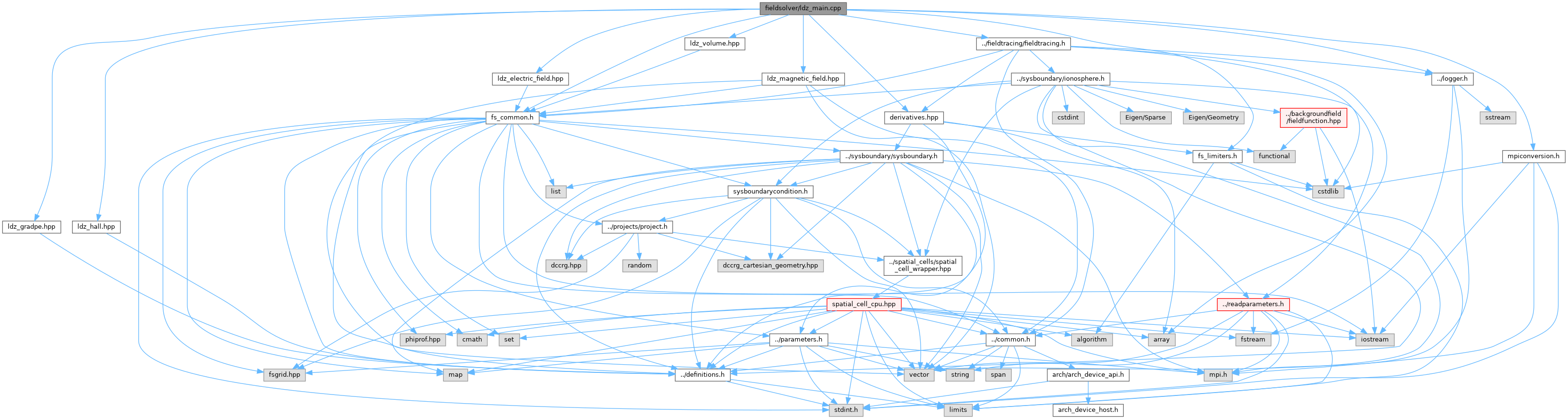

#include "ldz_electric_field.hpp"#include "ldz_magnetic_field.hpp"#include "ldz_hall.hpp"#include "ldz_gradpe.hpp"#include "ldz_volume.hpp"#include "fs_common.h"#include "derivatives.hpp"#include "fs_limiters.h"#include "mpiconversion.h"#include "../fieldtracing/fieldtracing.h"#include "../logger.h"
Go to the source code of this file.
Functions | |
| bool | propagateFields (fsgrids::perbspan perb, fsgrids::perbspan perbdt2, fsgrids::efieldspan e, fsgrids::efieldspan edt2, fsgrids::ehallspan ehall, fsgrids::egradpespan egradpe, fsgrids::egradpespan egradpedt2, fsgrids::momentsspan moments, fsgrids::momentsspan momentsdt2, fsgrids::dperbspan dperb, fsgrids::dmomentsspan dmoments, fsgrids::dmomentsspan dmomentsdt2, fsgrids::bgbspan bgb, fsgrids::volspan vol, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, SysBoundary &sysBoundaries, creal &dt, cuint subcycles) |
| Top-level field propagation function. | |
Variables | |
| Logger | logFile |
Detailed Description
Londrillo – Del Zanna upwind constrained transport field solver.
On the divergence-free condition in Godunov-type schemes for ideal magnetohydrodynamics: the upwind constrained transport method, P. Londrillo and L. Del Zanna, J. Comp. Phys., 195, 2004. http://dx.doi.org/10.1016/j.jcp.2003.09.016
Reconstructions taken from: Efficient, high accuracy ADER-WENO schemes for hydrodynamics and divergence-free magnetohydrodynamics, D. S. Balsara, T. Rumpf, M. Dumbser, C.-D. Munz, J. Comp. Phys, 228, 2480-2516, 2009. http://dx.doi.org/10.1016/j.jcp.2008.12.003 and Divergence-free reconstruction of magnetic fields and WENO schemes for magnetohydrodynamics, D. S. Balsara, J. Comp. Phys., 228, 5040-5056, 2009. http://dx.doi.org/10.1016/j.jcp.2009.03.038
***** NOTATION USED FOR VARIABLES FOLLOWS THE ONES USED *****
***** IN THE ABOVEMENTIONED PUBLICATION(S) *****
Definition in file ldz_main.cpp.
Function Documentation
◆ propagateFields()
| bool propagateFields | ( | fsgrids::perbspan | perb, |
| fsgrids::perbspan | perbdt2, | ||
| fsgrids::efieldspan | e, | ||
| fsgrids::efieldspan | edt2, | ||
| fsgrids::ehallspan | ehall, | ||
| fsgrids::egradpespan | egradpe, | ||
| fsgrids::egradpespan | egradpedt2, | ||
| fsgrids::momentsspan | moments, | ||
| fsgrids::momentsspan | momentsdt2, | ||
| fsgrids::dperbspan | dperb, | ||
| fsgrids::dmomentsspan | dmoments, | ||
| fsgrids::dmomentsspan | dmomentsdt2, | ||
| fsgrids::bgbspan | bgb, | ||
| fsgrids::volspan | vol, | ||
| fsgrids::technicalspan | technical, | ||
| FieldSolverGrid & | fsgrid, | ||
| SysBoundary & | sysBoundaries, | ||
| creal & | dt, | ||
| cuint | subcycles ) |
Top-level field propagation function.
Propagates the magnetic field, computes the derivatives and the upwinded electric field, then computes the volume-averaged field values. Takes care of the Runge-Kutta iteration at the top level, the functions called get as an argument the element from the enum defining the current stage and handle their job correspondingly.
- Parameters
-
perb fsgrid holding perturbed magnetic field perbdt2 fsgrid holding perturbed magnetic field at Runge-Kutta half-step e fsgrid holding electric field edt2 fsgrid holding electric field ehall fsgrid holding Hall term electric field egradpe fsgrid holding gradient of electron pressure electric field egradpedt2 fsgrid holding gradient of electron pressure electric field at Runge-Kutta half-step moments fsgrid holding moments momentsdt2 fsgrid holding moments at Runge-Kutta half-step dperb fsgrid holding perturbed magnetic field derivatives dmoments fsgrid holding moments derivatives dmomentsdt2 fsgrid holding moments derivatives at Runge-Kutta half-step bgb fsgrid holding background magnetic field vol fsgrid holding volume magnetic field technical fsgrid holding technical parameters fsgrid fsgrids container sysBoundaries Container of existing system boundaries dt Length of the time step subcycles Number of subcycles to compute.

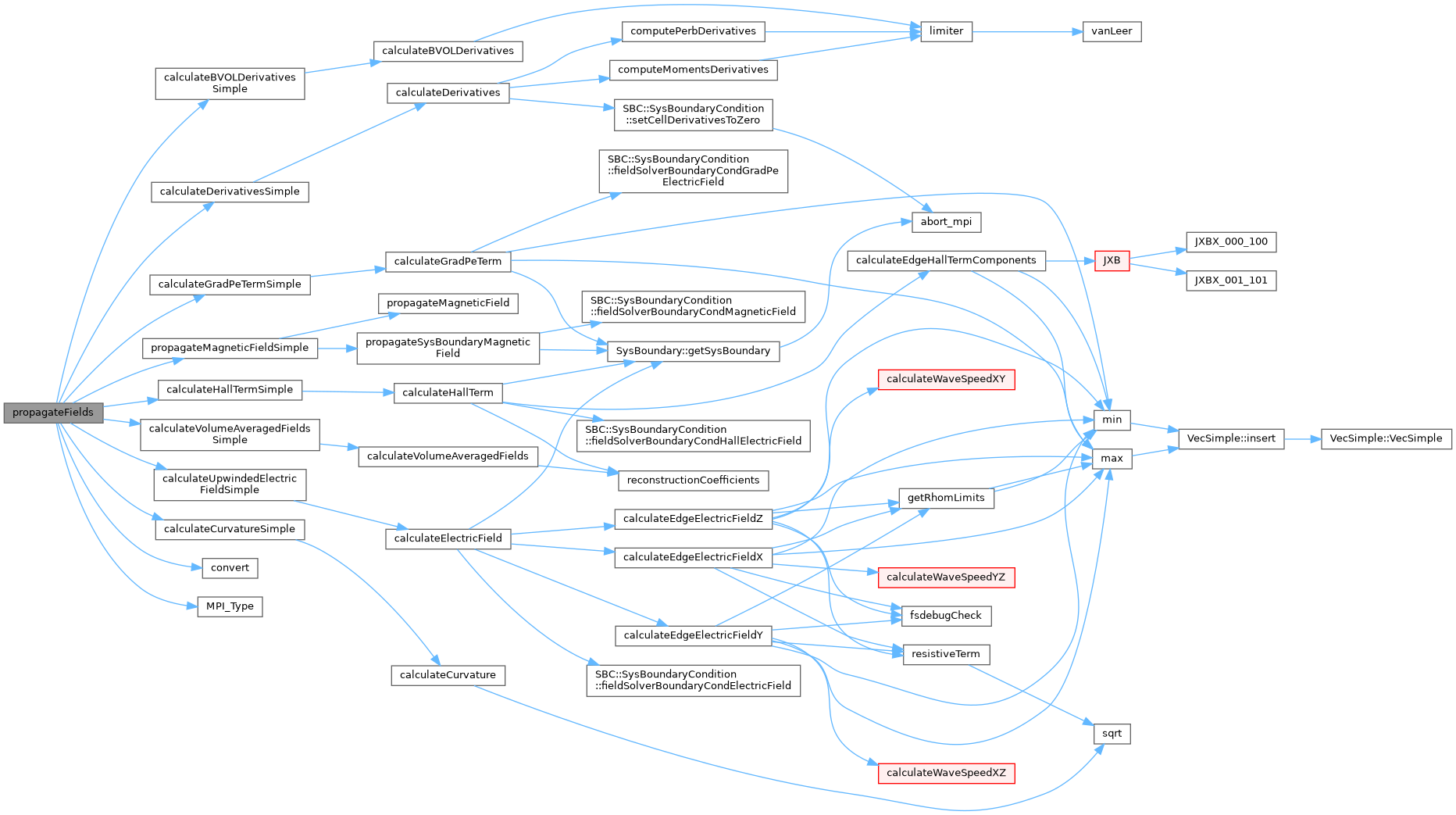

- See also
- propagateMagneticFieldSimple calculateDerivativesSimple calculateUpwindedElectricFieldSimple calculateVolumeAveragedFields calculateBVOLDerivativesSimple
Definition at line 91 of file ldz_main.cpp.
