#include <cstdlib>
#include "fs_common.h"
#include "derivatives.hpp"
#include "fs_limiters.h"
#include <Eigen/Geometry>

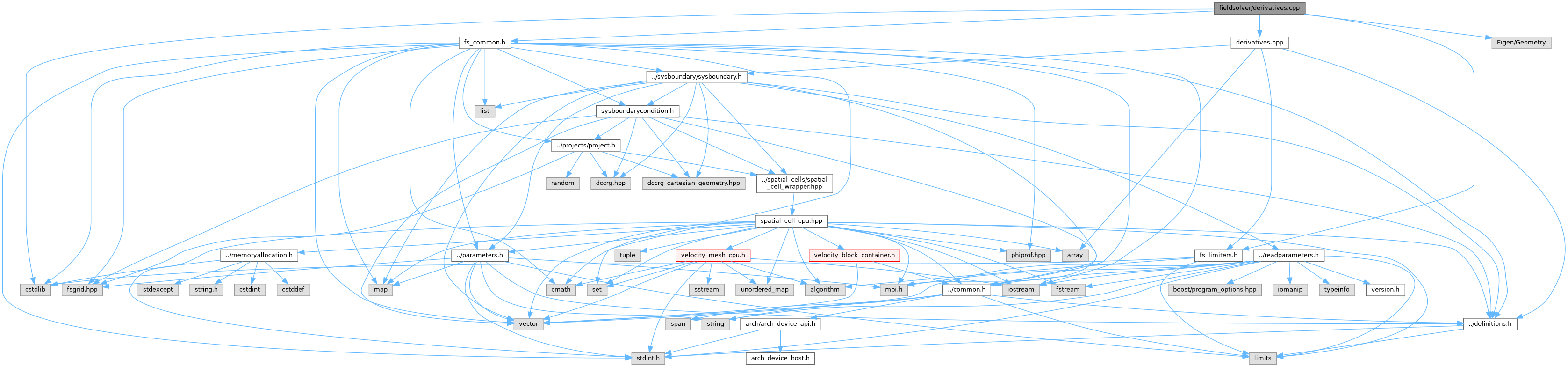

Include dependency graph for derivatives.cpp:

Classes
struct	DerivativesData< T, N >

Functions
void	computeMomentsDerivatives (fsgrids::constmomentsspan moments, fsgrids::dmomentsspan dmoments, const fsgrid::FsStencil &stencil, const bool atSysBoundary)
void	computePerbDerivatives (fsgrids::perbspan perb, fsgrids::dperbspan dperb, const fsgrid::FsStencil &stencil, bool dontCompute2ndDerivatives, bool atSysBoundary, cuint sysBoundaryFlag)
void	calculateDerivatives (fsgrids::perbspan perb, fsgrids::constmomentsspan moments, fsgrids::dperbspan dperb, fsgrids::dmomentsspan dmoments, const fsgrid::FsStencil &stencil, cuint sysBoundaryFlag, cuint sysBoundaryLayer, const bool doMoments)
	Low-level spatial derivatives calculation.
void	calculateDerivativesSimple (fsgrids::perbspan perb, fsgrids::momentsspan moments, fsgrids::dperbspan dperb, fsgrids::dmomentsspan dmoments, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, const bool doMoments)
	High-level derivative calculation wrapper function.
void	calculateBVOLDerivatives (fsgrids::volspan vol, fsgrids::consttechnicalspan technical, const fsgrid::FsStencil &stencil)
	Low-level spatial derivatives calculation.
void	calculateBVOLDerivativesSimple (fsgrids::volspan vol, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid)
	High-level derivative calculation wrapper function.
void	calculateCurvature (fsgrids::volspan vol, fsgrids::constbgbspan bgb, const fsgrid::FsStencil &stencil, const std::array< Real, 3 > &gridSpacing)
	Low-level curvature calculation.
void	calculateCurvatureSimple (fsgrids::volspan vol, fsgrids::constbgbspan bgb, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid)
	High-level curvature calculation wrapper function.
static std::array< Real, 3 >	getPerBVol (SpatialCell *cell)
	Returns perturbed volumetric B of cell.
static std::array< Real, 3 >	getBVol (SpatialCell *cell)
	Returns volumetric B of cell.
static std::array< Real, 3 >	getMomentumDensity (SpatialCell *cell)
	Calculates momentum density of cell.
static Real	calculateU (SpatialCell *cell)
	Calculates energy density for spatial cell.
static Real	calculateAnisotropy (const Eigen::Matrix3d &rot, const std::array< Real, 6 > &P)
	Calculates pressure anistotropy from B and Pi.
void	calculateScaledDeltas (SpatialCell cell, std::vector< SpatialCell > &neighbors)
	Low-level scaled gradients calculation.
void	calculateScaledDeltasSimple (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid)
	High-level scaled gradient calculation wrapper function.

Function Documentation

◆ calculateAnisotropy()

Real calculateAnisotropy	(	const Eigen::Matrix3d &	rot,
		const std::array< Real, 6 > &	P )

static

Calculates pressure anistotropy from B and Pi.

Parameters

rot	Eigen rotation matrix for parallel/perpendicular pressure
P	elements of pressure order in order: P_11, P_22, P_33, P_23, P_13, P_12

Definition at line 505 of file derivatives.cpp.

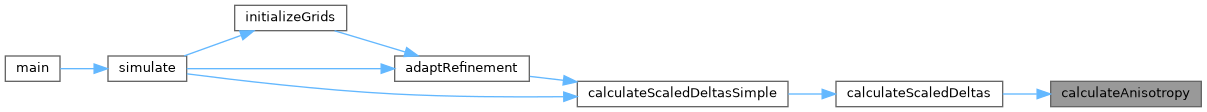

Here is the caller graph for this function:

◆ calculateBVOLDerivatives()

void calculateBVOLDerivatives	(	fsgrids::volspan	vol,
		fsgrids::consttechnicalspan	technical,
		const fsgrid::FsStencil &	stencil )

Low-level spatial derivatives calculation.

Calculate the spatial derivatives of BVOL or set them to zero.

For sysBoundaryLayer 1 or 2, we are near a boundary, and we wish to use regular centered differences instead of slope limiter-adjusted values. This is to minimize oscillations as a smooth behaviour is required near artificial boundaries, unlike at boundaries and shocks inside the simulation domain.

Parameters

vol	fsGrid holding the volume averaged fields
technical	fsGrid holding technical information (such as boundary types)
stencil	fsgrid stencil of current cell

See also: calculateDerivatives calculateBVOLDerivativesSimple calculateDerivativesSimple

Definition at line 295 of file derivatives.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calculateBVOLDerivativesSimple()

void calculateBVOLDerivativesSimple	(	fsgrids::volspan	vol,
		fsgrids::technicalspan	technical,
		FieldSolverGrid &	fsgrid )

High-level derivative calculation wrapper function.

BVOL has been calculated locally by calculateVolumeAveragedFields but not communicated. For the acceleration step one needs the cross-derivatives of BVOL

Parameters

vol	fsGrid holding the volume averaged fields
technical	fsGrid holding technical information (such as boundary types)
fsgrid	fsgrid container

See also: calculateDerivatives calculateBVOLDerivatives calculateDerivativesSimple

Definition at line 361 of file derivatives.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calculateCurvature()

void calculateCurvature	(	fsgrids::volspan	vol,
		fsgrids::constbgbspan	bgb,
		const fsgrid::FsStencil &	stencil,
		const std::array< Real, 3 > &	gridSpacing )

Low-level curvature calculation.

Parameters

vol	fsGrid holding the volume averaged fields
bgb	fsGrid holding the background fields
stencil	fsgrid stencil
gridSpacing	cell sizes in x,y,z

http://fusionwiki.ciemat.es/wiki/Magnetic_curvature

See also: calculateDerivatives calculateBVOLDerivativesSimple calculateDerivativesSimple

Definition at line 393 of file derivatives.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calculateCurvatureSimple()

void calculateCurvatureSimple	(	fsgrids::volspan	vol,
		fsgrids::constbgbspan	bgb,
		fsgrids::technicalspan	technical,
		FieldSolverGrid &	fsgrid )

High-level curvature calculation wrapper function.

Parameters

vol	fsGrid holding the volume averaged fields
bgb	fsGrid holding the background fields
technical	fsGrid holding technical information (such as boundary types)
fsgrid	fsgrid container

See also: calculateDerivatives calculateBVOLDerivatives calculateDerivativesSimple

Definition at line 440 of file derivatives.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calculateDerivatives()

void calculateDerivatives	(	fsgrids::perbspan	perb,
		fsgrids::constmomentsspan	moments,
		fsgrids::dperbspan	dperb,
		fsgrids::dmomentsspan	dmoments,
		const fsgrid::FsStencil &	stencil,
		cuint	sysBoundaryFlag,
		cuint	sysBoundaryLayer,
		const bool	doMoments )

Low-level spatial derivatives calculation.

Calculate the spatial derivatives or apply the derivative boundary conditions.

Parameters

perb	fsGrid holding the perturbed B quantities
moments	fsGrid holding the moment quantities
dperb	fsGrid holding the derivatives of perturbed B
dmoments	fsGrid holding the derviatives of moments
stencil	fsgrid stencil for the cell
sysBoundaryFlag	system boundary flag for the cell
sysBoundaryLayer	system boundary layer for the cell
doMoments	Bool telling whether the derivatives for moments need updating too.

See also: calculateDerivativesSimple calculateBVOLDerivativesSimple calculateBVOLDerivatives

Definition at line 209 of file derivatives.cpp.

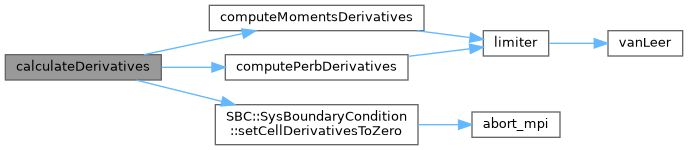

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calculateDerivativesSimple()

void calculateDerivativesSimple	(	fsgrids::perbspan	perb,
		fsgrids::momentsspan	moments,
		fsgrids::dperbspan	dperb,
		fsgrids::dmomentsspan	dmoments,
		fsgrids::technicalspan	technical,
		FieldSolverGrid &	fsgrid,
		const bool	doMoments )

High-level derivative calculation wrapper function.

B has to be updated because after the system boundary update in propagateMagneticFieldSimple there is no consistent state of B yet everywhere.

Then the derivatives are calculated.

Parameters

perb	fsGrid holding the perturbed B quantities
moments	fsGrid holding the moment quantities
dperb	fsGrid holding the derivatives of perturbed B
dmoments	fsGrid holding the derviatives of moments
technical	fsGrid holding technical information (such as boundary types)
fsgrid	fsgrid container
doMoments	If true, the derivatives of moments (rho, V, P) are communicated to neighbours and their derivatives updated.

See also: calculateDerivatives calculateBVOLDerivativesSimple calculateBVOLDerivatives

Definition at line 254 of file derivatives.cpp.

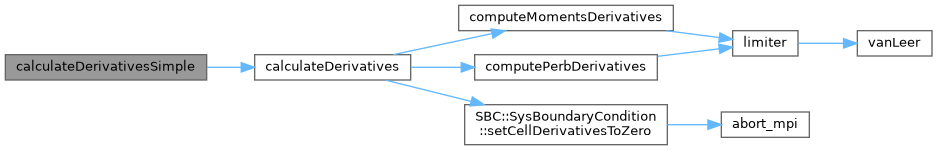

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calculateScaledDeltas()

void calculateScaledDeltas	(	SpatialCell *	cell,
		std::vector< SpatialCell * > &	neighbors )

Low-level scaled gradients calculation.

For the SpatialCell* cell and its neighbors, calculate scaled gradients and their maximum alpha The gradients are the same as in the GUMICS simulation, see Janhunen, P., Palmroth, M., Laitinen, T., Honkonen, I., Juusola, L., Facsko, G., & Pulkkinen, T. I. (2012). The GUMICS-4 global MHD magnetosphere-ionosphere coupling simulation. Journal of Atmospheric and Solar - Terrestrial Physics, 80, 48-59. https://doi.org/10.1016/j.jastp.2012.03.006

Definition at line 535 of file derivatives.cpp.

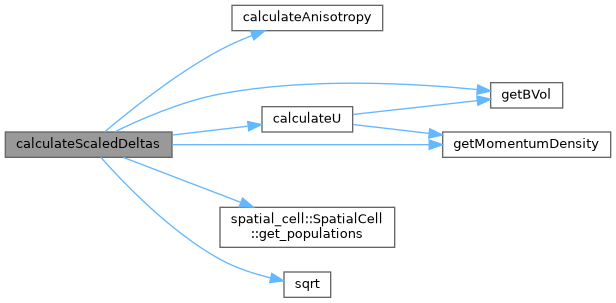

Here is the call graph for this function:

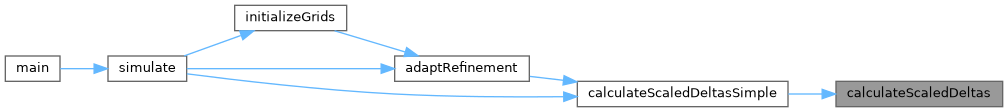

Here is the caller graph for this function:

◆ calculateScaledDeltasSimple()

void calculateScaledDeltasSimple ( dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > & mpiGrid )

High-level scaled gradient calculation wrapper function.

Calculates gradients needed for alpha everywhere in the grid

Definition at line 664 of file derivatives.cpp.

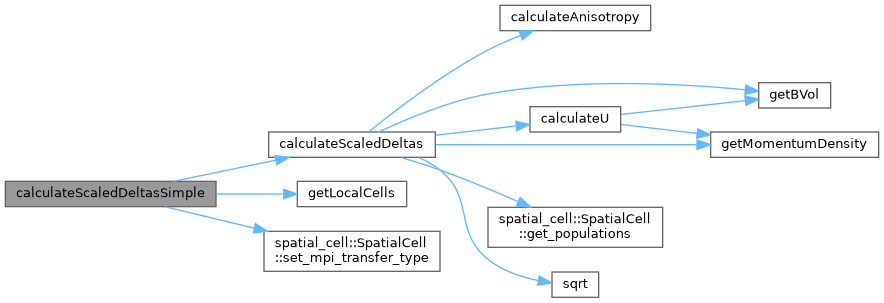

Here is the call graph for this function:

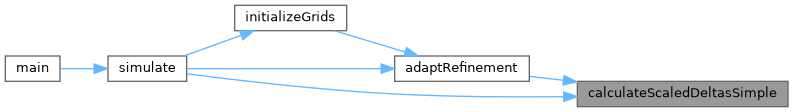

Here is the caller graph for this function:

◆ calculateU()

Real calculateU ( SpatialCell * cell )

static

Calculates energy density for spatial cell.

Definition at line 493 of file derivatives.cpp.

Here is the call graph for this function:

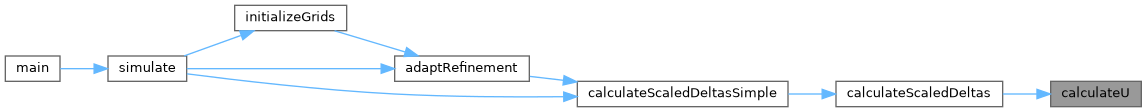

Here is the caller graph for this function:

◆ computeMomentsDerivatives()

void computeMomentsDerivatives	(	fsgrids::constmomentsspan	moments,
		fsgrids::dmomentsspan	dmoments,
		const fsgrid::FsStencil &	stencil,
		const bool	atSysBoundary )

Definition at line 40 of file derivatives.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computePerbDerivatives()

void computePerbDerivatives	(	fsgrids::perbspan	perb,
		fsgrids::dperbspan	dperb,
		const fsgrid::FsStencil &	stencil,
		bool	dontCompute2ndDerivatives,
		bool	atSysBoundary,
		cuint	sysBoundaryFlag )

Definition at line 124 of file derivatives.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getBVol()

std::array< Real, 3 > getBVol ( SpatialCell * cell )

static

Returns volumetric B of cell.

Definition at line 474 of file derivatives.cpp.

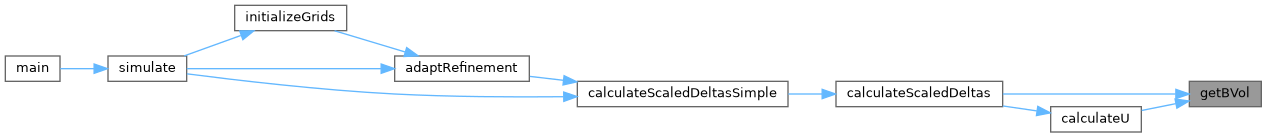

Here is the caller graph for this function:

◆ getMomentumDensity()

std::array< Real, 3 > getMomentumDensity ( SpatialCell * cell )

static

Calculates momentum density of cell.

Definition at line 483 of file derivatives.cpp.

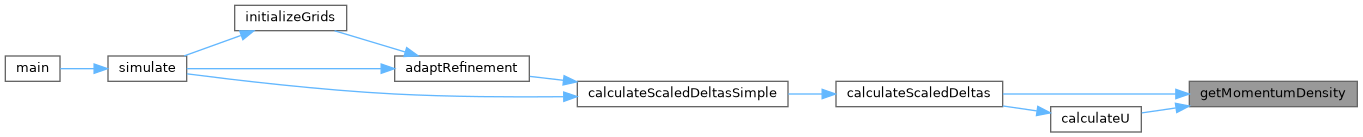

Here is the caller graph for this function:

◆ getPerBVol()

std::array< Real, 3 > getPerBVol ( SpatialCell * cell )

static

Returns perturbed volumetric B of cell.

Definition at line 465 of file derivatives.cpp.
