ldz_electric_field.cpp File Reference

#include <algorithm>
#include <cstdlib>
#include "fs_common.h"
#include "ldz_electric_field.hpp"

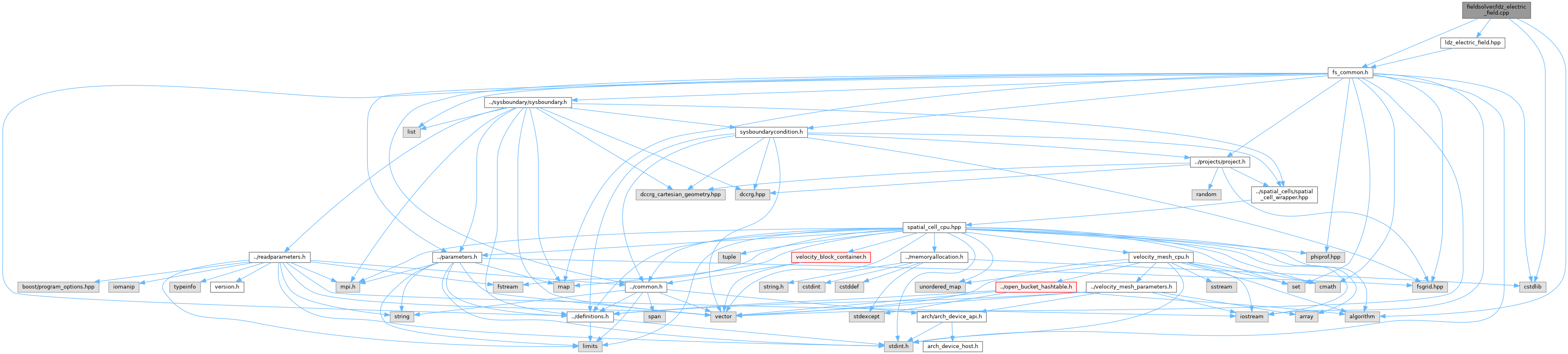

Include dependency graph for ldz_electric_field.cpp:

Go to the source code of this file.

Classes
struct	Wavespeeds
struct	Limits
struct	Reconstructions
struct	UpwindField
struct	CardinalIndices
struct	DataArrays

Functions
Wavespeeds	calculateWaveSpeedYZ (fsgrids::perbspan perB, fsgrids::constmomentsspan moments, fsgrids::constdperbspan dPerB, fsgrids::constdmomentsspan dMoments, fsgrids::constbgbspan BgB, const std::array< Real, 3 > &gridSpacing, const Limits &rhomLimits, size_t self, size_t nbr, Real By, Real Bz, Real dBydx, Real dBydz, Real dBzdx, Real dBzdy, Real ydir, Real zdir)
	Low-level helper function.
Wavespeeds	calculateWaveSpeedXZ (fsgrids::perbspan perB, fsgrids::constmomentsspan moments, fsgrids::constdperbspan dPerB, fsgrids::constdmomentsspan dMoments, fsgrids::constbgbspan BgB, const std::array< Real, 3 > &gridSpacing, const Limits &rhomLimits, size_t self, size_t nbr, Real Bx, Real Bz, Real dBxdy, Real dBxdz, Real dBzdx, Real dBzdy, Real xdir, Real zdir)
	Low-level helper function.
Wavespeeds	calculateWaveSpeedXY (fsgrids::perbspan perB, fsgrids::constmomentsspan moments, fsgrids::constdperbspan dPerB, fsgrids::constdmomentsspan dMoments, fsgrids::constbgbspan BgB, const std::array< Real, 3 > &gridSpacing, const Limits &rhomLimits, size_t self, size_t nbr, Real Bx, Real By, Real dBxdy, Real dBxdz, Real dBydx, Real dBydz, Real xdir, Real ydir)
	Low-level helper function.
void	fsdebugCheck (const fsgrid::FsStencil &stencil, size_t len, const char *file, uint32_t line)
Limits	getRhomLimits (const std::array< std::array< Real, fsgrids::moments::N_MOMENTS >, 4 > &moments)
Real	resistiveTerm (const auto &bgb, const auto &perb, const auto &dperb, Real rhoq, std::array< size_t, 2 > indices, std::array< Real, 2 > spacing)
void	calculateEdgeElectricFieldX (fsgrids::perbspan perb, fsgrids::constdperbspan dperb, fsgrids::efieldspan e, fsgrids::constehallspan ehall, fsgrids::constegradpespan egradpe, fsgrids::constmomentsspan moments, fsgrids::constdmomentsspan dmoments, fsgrids::constbgbspan bgb, fsgrids::technicalspan technical, const fsgrid::FsStencil &stencil, int32_t RKCase, const std::array< Real, 3 > &gridSpacing)
	Low-level electric field propagation function.
void	calculateEdgeElectricFieldY (fsgrids::perbspan perb, fsgrids::constdperbspan dperb, fsgrids::efieldspan e, fsgrids::constehallspan ehall, fsgrids::constegradpespan egradpe, fsgrids::constmomentsspan moments, fsgrids::constdmomentsspan dmoments, fsgrids::constbgbspan bgb, fsgrids::technicalspan technical, const fsgrid::FsStencil &stencil, int32_t RKCase, const std::array< Real, 3 > &gridSpacing)
	Low-level electric field propagation function.
void	calculateEdgeElectricFieldZ (fsgrids::perbspan perb, fsgrids::constdperbspan dperb, fsgrids::efieldspan e, fsgrids::constehallspan ehall, fsgrids::constegradpespan egradpe, fsgrids::constmomentsspan moments, fsgrids::constdmomentsspan dmoments, fsgrids::constbgbspan bgb, fsgrids::technicalspan technical, const fsgrid::FsStencil &stencil, int32_t RKCase, const std::array< Real, 3 > &gridSpacing)
	Low-level electric field propagation function.
void	calculateElectricField (fsgrids::perbspan perb, fsgrids::constdperbspan dperb, fsgrids::efieldspan e, fsgrids::constehallspan ehall, fsgrids::constegradpespan egradpe, fsgrids::constmomentsspan moments, fsgrids::constdmomentsspan dmoments, fsgrids::constbgbspan bgb, fsgrids::technicalspan technical, const fsgrid::FsStencil &stencil, const std::array< Real, 3 > &gridSpacing, SysBoundary &sysBoundaries, int32_t RKCase)
	Electric field propagation function.
void	calculateUpwindedElectricFieldSimple (fsgrids::perbspan perb, fsgrids::perbspan perbdt2, fsgrids::efieldspan e, fsgrids::efieldspan edt2, fsgrids::ehallspan ehall, fsgrids::egradpespan egradpe, fsgrids::egradpespan egradpedt2, fsgrids::momentsspan moments, fsgrids::momentsspan momentsdt2, fsgrids::dperbspan dperb, fsgrids::dmomentsspan dmoments, fsgrids::dmomentsspan dmomentsdt2, fsgrids::bgbspan bgb, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, SysBoundary &sysBoundaries, int32_t RKCase, const bool communicateEGradPeOrMomentsDerivatives)
	High-level electric field computation function.

Function Documentation

calculateEdgeElectricFieldX()

void calculateEdgeElectricFieldX	(	fsgrids::perbspan	perb,
		fsgrids::constdperbspan	dperb,
		fsgrids::efieldspan	e,
		fsgrids::constehallspan	ehall,
		fsgrids::constegradpespan	egradpe,
		fsgrids::constmomentsspan	moments,
		fsgrids::constdmomentsspan	dmoments,
		fsgrids::constbgbspan	bgb,
		fsgrids::technicalspan	technical,
		const fsgrid::FsStencil &	stencil,
		int32_t	RKCase,
		const std::array< Real, 3 > &	gridSpacing )

Low-level electric field propagation function.

Computes the upwinded electric field X component along the cell's corresponding edge as the cross product of B and V in the YZ plane. Also includes the calculation of the maximally allowed time step.

Expects that the correct RHO and B fields are being passed, depending on the stage of the Runge-Kutta time stepping method.

Note that the background B field is excluded from the diffusive term calculations because they are equivalent to a current term and the background field is curl-free.

Parameters

perb	fsGrid holding the perturbed B quantities
dperb	fsGrid holding the derivatives of perturbed B
e	fsGrid holding the electric field
ehall	fsGrid holding the Hall contributions to the electric field
egradpe	fsGrid holding the electron pressure gradient E field
moments	fsGrid holding the moment quantities
dmoments	fsGrid holding the derviatives of moments
bgb	fsGrid holding the background B quantities
technical	fsGrid holding technical information (such as boundary types)
stencil	current cell's fsgrid stencil
RKCase	Element in the enum defining the Runge-Kutta method steps
gridSpacing	fsgrid cell size in x,y,z

Definition at line 448 of file ldz_electric_field.cpp.

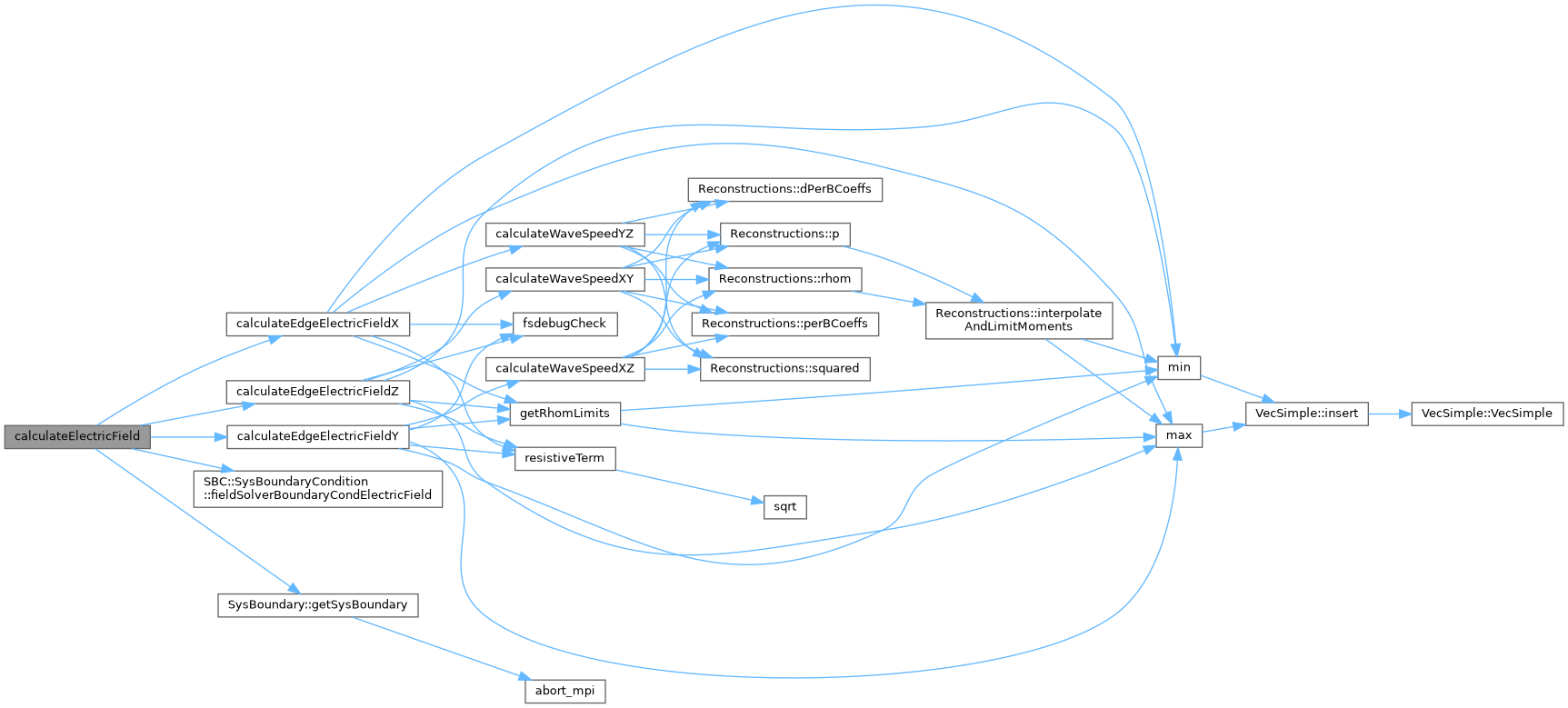

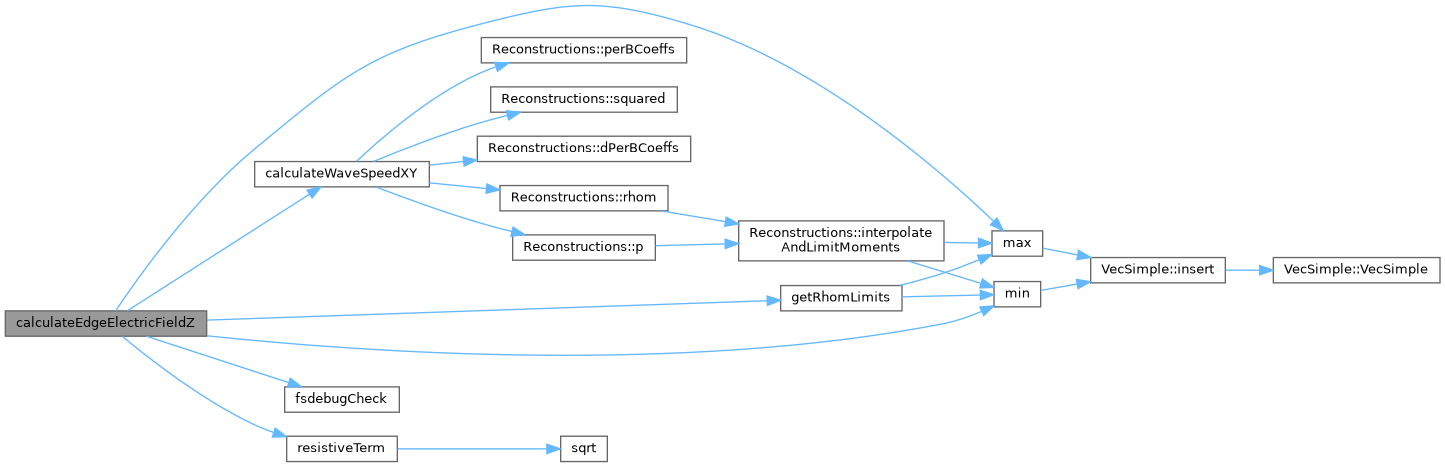

Here is the call graph for this function:

Here is the caller graph for this function:

calculateEdgeElectricFieldY()

void calculateEdgeElectricFieldY	(	fsgrids::perbspan	perb,
		fsgrids::constdperbspan	dperb,
		fsgrids::efieldspan	e,
		fsgrids::constehallspan	ehall,
		fsgrids::constegradpespan	egradpe,
		fsgrids::constmomentsspan	moments,
		fsgrids::constdmomentsspan	dmoments,
		fsgrids::constbgbspan	bgb,
		fsgrids::technicalspan	technical,
		const fsgrid::FsStencil &	stencil,
		int32_t	RKCase,
		const std::array< Real, 3 > &	gridSpacing )

Low-level electric field propagation function.

Computes the upwinded electric field Y component along the cell's corresponding edge as the cross product of B and V in the XZ plane. Also includes the calculation of the maximally allowed time step.

Expects that the correct RHO and B fields are being passed, depending on the stage of the Runge-Kutta time stepping method.

Note that the background B field is excluded from the diffusive term calculations because they are equivalent to a current term and the background field is curl-free.

Parameters

perb	fsGrid holding the perturbed B quantities
dperb	fsGrid holding the derivatives of perturbed B
e	fsGrid holding the electric field
ehall	fsGrid holding the Hall contributions to the electric field
egradpe	fsGrid holding the electron pressure gradient E field
moments	fsGrid holding the moment quantities
dmoments	fsGrid holding the derviatives of moments
bgb	fsGrid holding the background B quantities
technical	fsGrid holding technical information (such as boundary types)
stencil	current cell's fsgrid stencil
RKCase	Element in the enum defining the Runge-Kutta method steps
gridSpacing	fsgrid cell size in x,y,z

Definition at line 671 of file ldz_electric_field.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

calculateEdgeElectricFieldZ()

void calculateEdgeElectricFieldZ	(	fsgrids::perbspan	perb,
		fsgrids::constdperbspan	dperb,
		fsgrids::efieldspan	e,
		fsgrids::constehallspan	ehall,
		fsgrids::constegradpespan	egradpe,
		fsgrids::constmomentsspan	moments,
		fsgrids::constdmomentsspan	dmoments,
		fsgrids::constbgbspan	bgb,
		fsgrids::technicalspan	technical,
		const fsgrid::FsStencil &	stencil,
		int32_t	RKCase,
		const std::array< Real, 3 > &	gridSpacing )

Low-level electric field propagation function.

Computes the upwinded electric field Z component along the cell's corresponding edge as the cross product of B and V in the XY plane. Also includes the calculation of the maximally allowed time step.

Expects that the correct RHO and B fields are being passed, depending on the stage of the Runge-Kutta time stepping method.

Note that the background B field is excluded from the diffusive term calculations because they are equivalent to a current term and the background field is curl-free.

Parameters

perb	fsGrid holding the perturbed B quantities
dperb	fsGrid holding the derivatives of perturbed B
e	fsGrid holding the electric field
ehall	fsGrid holding the Hall contributions to the electric field
egradpe	fsGrid holding the electron pressure gradient E field
moments	fsGrid holding the moment quantities
dmoments	fsGrid holding the derviatives of moments
bgb	fsGrid holding the background B quantities
technical	fsGrid holding technical information (such as boundary types)
stencil	current cell's fsgrid stencil
RKCase	Element in the enum defining the Runge-Kutta method steps
gridSpacing	fsgrid cell size in x,y,z

Definition at line 891 of file ldz_electric_field.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

calculateElectricField()

void calculateElectricField	(	fsgrids::perbspan	perb,
		fsgrids::constdperbspan	dperb,
		fsgrids::efieldspan	e,
		fsgrids::constehallspan	ehall,
		fsgrids::constegradpespan	egradpe,
		fsgrids::constmomentsspan	moments,
		fsgrids::constdmomentsspan	dmoments,
		fsgrids::constbgbspan	bgb,
		fsgrids::technicalspan	technical,
		const fsgrid::FsStencil &	stencil,
		const std::array< Real, 3 > &	gridSpacing,
		SysBoundary &	sysBoundaries,
		int32_t	RKCase )

Electric field propagation function.

Calls the general or the system boundary electric field propagation functions.

Parameters

perb	fsGrid holding the perturbed B quantities
dperb	fsGrid holding the derivatives of perturbed B
e	fsGrid holding the electric field
ehall	fsGrid holding the Hall contributions to the electric field
egradpe	fsGrid holding the electron pressure gradient E field
moments	fsGrid holding the moment quantities
dmoments	fsGrid holding the derviatives of moments
bgb	fsGrid holding the background B quantities
technical	fsGrid holding technical information (such as boundary types)
stencil	current cell's fsgrid stencil
gridSpacing	fsgrid cell size in x,y,z
sysBoundaries	System boundary conditions existing
RKCase	Element in the enum defining the Runge-Kutta method steps

See also

calculateUpwindedElectricFieldSimple calculateEdgeElectricFieldX calculateEdgeElectricFieldY calculateEdgeElectricFieldZ

Definition at line 1112 of file ldz_electric_field.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

calculateUpwindedElectricFieldSimple()

void calculateUpwindedElectricFieldSimple	(	fsgrids::perbspan	perb,
		fsgrids::perbspan	perbdt2,
		fsgrids::efieldspan	e,
		fsgrids::efieldspan	edt2,
		fsgrids::ehallspan	ehall,
		fsgrids::egradpespan	egradpe,
		fsgrids::egradpespan	egradpedt2,
		fsgrids::momentsspan	moments,
		fsgrids::momentsspan	momentsdt2,
		fsgrids::dperbspan	dperb,
		fsgrids::dmomentsspan	dmoments,
		fsgrids::dmomentsspan	dmomentsdt2,
		fsgrids::bgbspan	bgb,
		fsgrids::technicalspan	technical,
		FieldSolverGrid &	fsgrid,
		SysBoundary &	sysBoundaries,
		int32_t	RKCase,
		const bool	communicateEGradPeOrMomentsDerivatives )

High-level electric field computation function.

Transfers the derivatives, calculates the edge electric fields and transfers the new electric fields.

Parameters

perb	fsGrid holding the perturbed B quantities at runge-kutta t=0
perbdt2	fsGrid holding the perturbed B quantities at runge-kutta t=0.5
e	fsGrid holding the Electric field quantities at runge-kutta t=0
edt2	fsGrid holding the Electric field quantities at runge-kutta t=0.5
ehall	fsGrid holding the Hall contributions to the electric field
egradpe	fsGrid holding the electron pressure gradient E field
egradpedt2	fsGrid holding the electron pressure gradient E field
moments	fsGrid holding the moment quantities at runge-kutta t=0
momentsdt2	fsGrid holding the moment quantities at runge-kutta t=0.5
dperb	fsGrid holding the derivatives of perturbed B
dmoments	fsGrid holding the derivatives of moments
dmomentsdt2	fsGrid holding the derivatives of moments at runge-kutta t=0.5
bgb	fsGrid holding the background B quantities
technical	fsGrid holding technical information (such as boundary types)
fsgrid	fsgrids container
sysBoundaries	System boundary conditions existing
RKCase	Element in the enum defining the Runge-Kutta method steps
communicateEGradPeOrMomentsDerivatives	Boolean flag whether grad(Pe) electric field or moments need a ghost update

See also

calculateElectricField calculateEdgeElectricFieldX calculateEdgeElectricFieldY calculateEdgeElectricFieldZ

Definition at line 1177 of file ldz_electric_field.cpp.

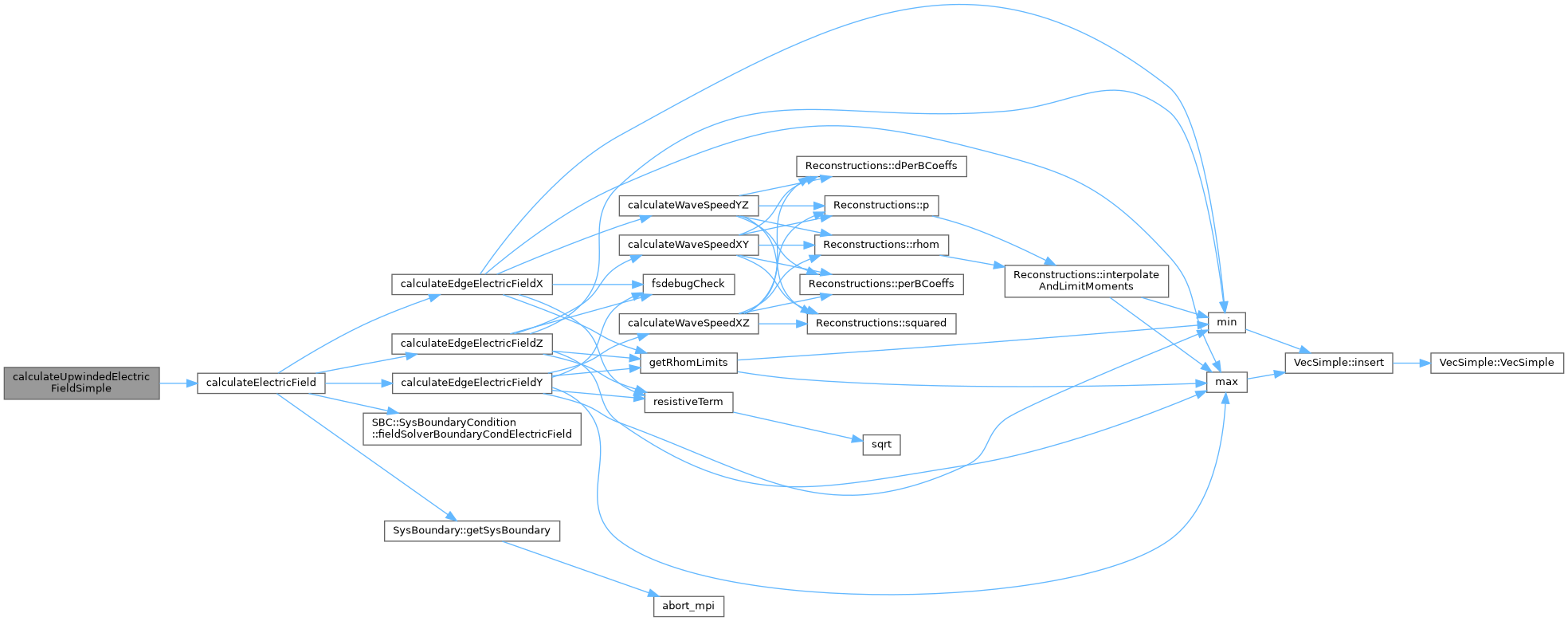

Here is the call graph for this function:

Here is the caller graph for this function:

calculateWaveSpeedXY()

Wavespeeds calculateWaveSpeedXY	(	fsgrids::perbspan	perB,
		fsgrids::constmomentsspan	moments,
		fsgrids::constdperbspan	dPerB,
		fsgrids::constdmomentsspan	dMoments,
		fsgrids::constbgbspan	BgB,
		const std::array< Real, 3 > &	gridSpacing,
		const Limits &	rhomLimits,
		size_t	self,
		size_t	nbr,
		Real	Bx,
		Real	By,
		Real	dBxdy,
		Real	dBxdz,
		Real	dBydx,
		Real	dBydz,
		Real	xdir,
		Real	ydir )

Low-level helper function.

Computes the magnetosonic speed in the XY plane. Used in upwinding the electric field Z component, at the interface between cells self and nbr.

Expects that the correct RHO and B fields are being passed, depending on the stage of the Runge-Kutta time stepping method.

If fields are not propagated, returns 0.0 as there is no information propagating.

Parameters

perB	fsGrid holding the perturbed B quantities
moments	fsGrid holding the moment quantities
dPerB	fsGrid holding the derivatives of perturbed B
dMoments	fsGrid holding the derviatives of moments
BgB	fsGrid holding the background B quantities
gridSpacing	grid cell size in x,y,z
rhomLimits	allowed min and max density when interpolating
self	Current cell index
nbr	Neighbor cell index
Bx	Current cell's Bx
By	Current cell's By
dBxdy	dBxdy derivative
dBxdz	dBxdz derivative
dBydx	dBydx derivative
dBydz	dBydz derivative
xdir	+1 or -1 depending on the interpolation direction in x
ydir	+1 or -1 depending on the interpolation direction in y

Definition at line 301 of file ldz_electric_field.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

calculateWaveSpeedXZ()

Wavespeeds calculateWaveSpeedXZ	(	fsgrids::perbspan	perB,
		fsgrids::constmomentsspan	moments,
		fsgrids::constdperbspan	dPerB,
		fsgrids::constdmomentsspan	dMoments,
		fsgrids::constbgbspan	BgB,
		const std::array< Real, 3 > &	gridSpacing,
		const Limits &	rhomLimits,
		size_t	self,
		size_t	nbr,
		Real	Bx,
		Real	Bz,
		Real	dBxdy,
		Real	dBxdz,
		Real	dBzdx,
		Real	dBzdy,
		Real	xdir,
		Real	zdir )

Low-level helper function.

Computes the magnetosonic speed in the XZ plane. Used in upwinding the electric field Y component, at the interface between cells self and nbr.

Expects that the correct RHO and B fields are being passed, depending on the stage of the Runge-Kutta time stepping method.

If fields are not propagated, returns 0.0 as there is no information propagating.

Parameters

perB	fsGrid holding the perturbed B quantities
moments	fsGrid holding the moment quantities
dPerB	fsGrid holding the derivatives of perturbed B
dMoments	fsGrid holding the derviatives of moments
BgB	fsGrid holding the background B quantities
gridSpacing	grid cell size in x,y,z
rhomLimits	allowed min and max density when interpolating
self	Current cell index
nbr	Neighbor cell index
Bx	Current cell's Bx
Bz	Current cell's Bz
dBxdy	dBxdy derivative
dBxdz	dBxdz derivative
dBzdx	dBzdx derivative
dBzdy	dBzdy derivative
xdir	+1 or -1 depending on the interpolation direction in x
zdir	+1 or -1 depending on the interpolation direction in z

Definition at line 247 of file ldz_electric_field.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

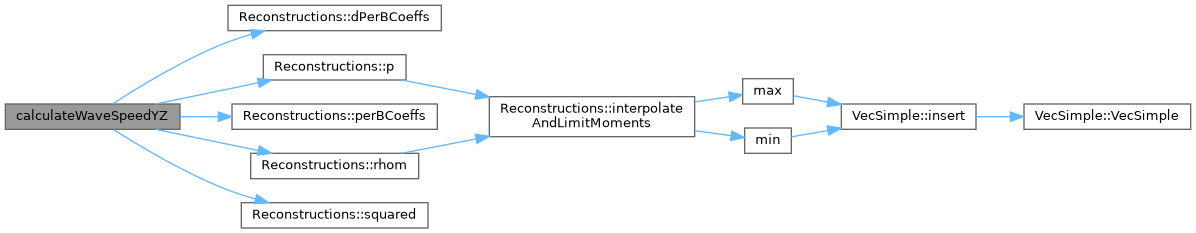

calculateWaveSpeedYZ()

Wavespeeds calculateWaveSpeedYZ	(	fsgrids::perbspan	perB,
		fsgrids::constmomentsspan	moments,
		fsgrids::constdperbspan	dPerB,
		fsgrids::constdmomentsspan	dMoments,
		fsgrids::constbgbspan	BgB,
		const std::array< Real, 3 > &	gridSpacing,
		const Limits &	rhomLimits,
		size_t	self,
		size_t	nbr,
		Real	By,
		Real	Bz,
		Real	dBydx,
		Real	dBydz,
		Real	dBzdx,
		Real	dBzdy,
		Real	ydir,
		Real	zdir )

Low-level helper function.

Computes the magnetosonic speed in the YZ plane. Used in upwinding the electric field X component, at the interface between cells self and nbr.

Expects that the correct RHO and B fields are being passed, depending on the stage of the Runge-Kutta time stepping method.

If fields are not propagated, returns 0.0 as there is no information propagating.

Parameters

perB	fsGrid holding the perturbed B quantities
moments	fsGrid holding the moment quantities
dPerB	fsGrid holding the derivatives of perturbed B
dMoments	fsGrid holding the derviatives of moments
BgB	fsGrid holding the background B quantities
gridSpacing	grid cell size in x,y,z
rhomLimits	allowed min and max density when interpolating
self	Current cell index
nbr	Neighbor cell index
By	Current cell's By
Bz	Current cell's Bz
dBydx	dBydx derivative
dBydz	dBydz derivative
dBzdx	dBzdx derivative
dBzdy	dBzdy derivative
ydir	+1 or -1 depending on the interpolation direction in y
zdir	+1 or -1 depending on the interpolation direction in z

Definition at line 193 of file ldz_electric_field.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

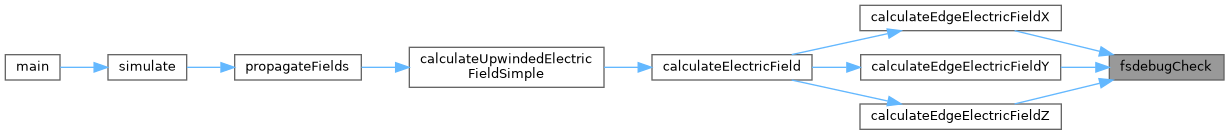

fsdebugCheck()

void fsdebugCheck	(	const fsgrid::FsStencil &	stencil,
		size_t	len,
		const char *	file,
		uint32_t	line )

Get min and max density of the four neighbors, used for limiting/clamping the results of interpolation.

Definition at line 328 of file ldz_electric_field.cpp.

Here is the caller graph for this function:

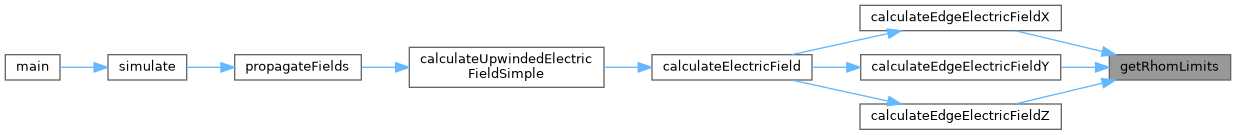

getRhomLimits()

Limits getRhomLimits

(

const std::array< std::array< Real, fsgrids::moments::N_MOMENTS >, 4 > &

moments

)

Definition at line 343 of file ldz_electric_field.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

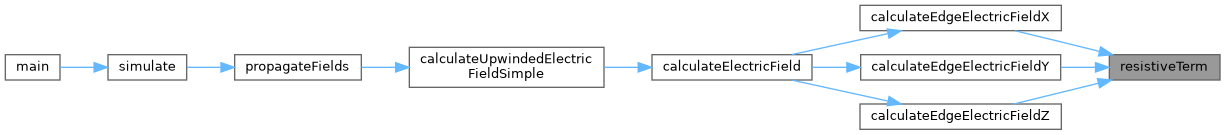

resistiveTerm()

Real resistiveTerm	(	const auto &	bgb,
		const auto &	perb,
		const auto &	dperb,
		Real	rhoq,
		std::array< size_t, 2 >	indices,
		std::array< Real, 2 >	spacing )

Definition at line 357 of file ldz_electric_field.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:
