#include <cstdlib>
#include <iostream>
#include <cmath>
#include <vector>
#include <map>
#include <list>
#include <set>
#include <stdint.h>
#include <fsgrid.hpp>
#include <phiprof.hpp>
#include "../definitions.h"
#include "../common.h"
#include "../parameters.h"
#include "../projects/project.h"
#include "../sysboundary/sysboundary.h"
#include "../sysboundary/sysboundarycondition.h"

Include dependency graph for fs_common.h:

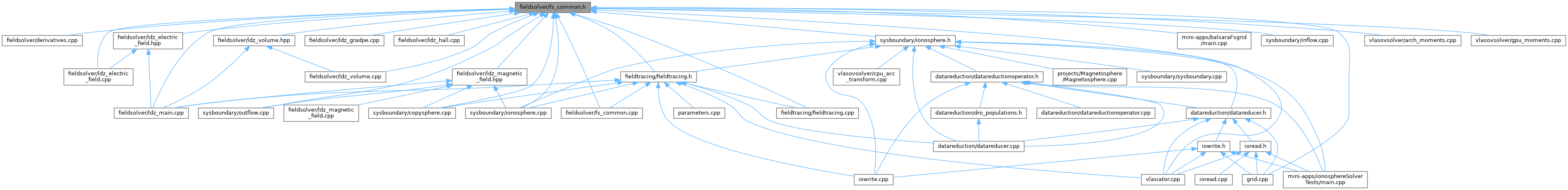

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	Rec

Enumerations

enum Rec::Rec {
Rec::a_0 , Rec::a_x , Rec::a_y , Rec::a_z ,
Rec::a_xx , Rec::a_yy , Rec::a_zz , Rec::a_xy ,
Rec::a_xz , Rec::a_yz , Rec::a_xxx , Rec::a_xxy ,
Rec::a_xyy , Rec::a_xxz , Rec::a_xzz , Rec::a_xyz ,
Rec::b_0 , Rec::b_x , Rec::b_y , Rec::b_z ,
Rec::b_xx , Rec::b_yy , Rec::b_zz , Rec::b_xy ,
Rec::b_xz , Rec::b_yz , Rec::b_xxy , Rec::b_xyy ,
Rec::b_yyy , Rec::b_yyz , Rec::b_yzz , Rec::b_xyz ,
Rec::c_0 , Rec::c_x , Rec::c_y , Rec::c_z ,
Rec::c_xx , Rec::c_yy , Rec::c_zz , Rec::c_xy ,
Rec::c_xz , Rec::c_yz , Rec::c_xxz , Rec::c_xzz ,
Rec::c_yyz , Rec::c_yzz , Rec::c_xyz , Rec::c_zzz ,
Rec::N_REC_COEFFICIENTS
}

Functions
bool	propagateFields (fsgrids::perbspan perb, fsgrids::perbspan perbdt2, fsgrids::efieldspan e, fsgrids::efieldspan edt2, fsgrids::ehallspan ehall, fsgrids::egradpespan egradpe, fsgrids::egradpespan egradpedt2, fsgrids::momentsspan moments, fsgrids::momentsspan momentsdt2, fsgrids::dperbspan dperb, fsgrids::dmomentsspan dmoments, fsgrids::dmomentsspan dmomentsdt2, fsgrids::bgbspan bgb, fsgrids::volspan vol, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, SysBoundary &sysBoundaries, creal &dt, cuint subcycles)
	Top-level field propagation function.
Real	divideIfNonZero (creal rhoV, creal rho)
	Helper function.
std::array< Real, Rec::N_REC_COEFFICIENTS >	reconstructionCoefficients (fsgrids::perbspan perb, fsgrids::constdperbspan dperb, const fsgrid::FsStencil &stencil, Real reconstructionOrder)
	Low-level helper function.
std::array< Real, 3 >	interpolatePerturbedB (fsgrids::perbspan perb, fsgrids::constdperbspan dperb, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, std::map< std::array< int, 3 >, std::array< Real, Rec::N_REC_COEFFICIENTS > > &reconstructionCoefficientsCache, cint i, cint j, cint k, const std::array< Real, 3 > x)
std::array< Real, 3 >	interpolateCurlB (fsgrids::perbspan perb, fsgrids::constdperbspan dperb, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, std::map< std::array< int, 3 >, std::array< Real, Rec::N_REC_COEFFICIENTS > > &reconstructionCoefficientsCache, cint i, cint j, cint k, const std::array< Real, 3 > x)

Variables
const Real	HALF = 0.5
const Real	MINUS = -1.0
const Real	PLUS = +1.0
const Real	THIRD = 1.0/3.0
const Real	FOURTH = 1.0/4.0
const Real	SIXTH = 1.0/6.0
const Real	EIGTH = 1.0/8.0
const Real	TENTH = 1.0/10.0
const Real	TWELWTH = 1.0/12.0
const Real	TWO = 2.0
const Real	ZERO = 0.0
static creal	EPS = 1.0e-30

Function Documentation

◆ divideIfNonZero()

Real divideIfNonZero	(	creal	numerator,
		creal	denominator )

Helper function.

Divides the first value by the second or returns zero if the denominator is zero.

Parameters

numerator	Numerator
denominator	Denominator

Definition at line 33 of file fs_common.cpp.

Here is the caller graph for this function:

◆ interpolateCurlB()

std::array< Real, 3 > interpolateCurlB	(	fsgrids::perbspan	perb,
		fsgrids::constdperbspan	dperb,
		fsgrids::technicalspan	technical,
		FieldSolverGrid &	fsgrid,
		std::map< std::array< int, 3 >, std::array< Real, Rec::N_REC_COEFFICIENTS > > &	reconstructionCoefficientsCache,
		cint	i,
		cint	j,
		cint	k,
		const std::array< Real, 3 >	x )

Interpolate curl(perturbed B) to arbitrary x,y,z in cell Uses the reconstruction coefficients and equations from Divergence-free reconstruction of magnetic fields and WENO schemes for magnetohydrodynamics D.S. Balsara, J. Comp. Phys., 228, 2009 doi:10.1016/j.jcp.2009.03.038 and the wxMaxima file at doc/fieldsolver/Balsara_curlB_at_arbitrary_xyz.wxmx

Parameters

perb	perturbed B fsGrid
dperb	perturbed B derivatives fsGrid
technical	technical fsGrid
fsgrid	fsgfrid container
i	local fsGrid x-index
j	local fsGrid y-index
k	local fsGrid z-index
x	3D global simulation x,y,z coordinates of point to interpolate to

Definition at line 273 of file fs_common.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ interpolatePerturbedB()

std::array< Real, 3 > interpolatePerturbedB	(	fsgrids::perbspan	perb,
		fsgrids::constdperbspan	dperb,
		fsgrids::technicalspan	technical,
		FieldSolverGrid &	fsgrid,
		std::map< std::array< int, 3 >, std::array< Real, Rec::N_REC_COEFFICIENTS > > &	reconstructionCoefficientsCache,
		cint	i,
		cint	j,
		cint	k,
		const std::array< Real, 3 >	x )

Interpolate perturbed B to arbitrary x,y,z in cell Uses the reconstruction coefficients and equations from Divergence-free reconstruction of magnetic fields and WENO schemes for magnetohydrodynamics D.S. Balsara, J. Comp. Phys., 228, 2009 doi:10.1016/j.jcp.2009.03.038

Parameters

perb	perturbed B fsGrid
dperb	perturbed B derivatives fsGrid
technical	technical fsGrid
reconstructionCoefficientsCache	map for cached values
i	local fsGrid x-index
j	local fsGrid y-index
k	local fsGrid z-index
x	3D global simulation x,y,z coordinates of point to interpolate to

Definition at line 200 of file fs_common.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ propagateFields()

bool propagateFields	(	fsgrids::perbspan	perb,
		fsgrids::perbspan	perbdt2,
		fsgrids::efieldspan	e,
		fsgrids::efieldspan	edt2,
		fsgrids::ehallspan	ehall,
		fsgrids::egradpespan	egradpe,
		fsgrids::egradpespan	egradpedt2,
		fsgrids::momentsspan	moments,
		fsgrids::momentsspan	momentsdt2,
		fsgrids::dperbspan	dperb,
		fsgrids::dmomentsspan	dmoments,
		fsgrids::dmomentsspan	dmomentsdt2,
		fsgrids::bgbspan	bgb,
		fsgrids::volspan	vol,
		fsgrids::technicalspan	technical,
		FieldSolverGrid &	fsgrid,
		SysBoundary &	sysBoundaries,
		creal &	dt,
		cuint	subcycles )

Top-level field propagation function.

Propagates the magnetic field, computes the derivatives and the upwinded electric field, then computes the volume-averaged field values. Takes care of the Runge-Kutta iteration at the top level, the functions called get as an argument the element from the enum defining the current stage and handle their job correspondingly.

Parameters

perb	fsgrid holding perturbed magnetic field
perbdt2	fsgrid holding perturbed magnetic field at Runge-Kutta half-step
e	fsgrid holding electric field
edt2	fsgrid holding electric field
ehall	fsgrid holding Hall term electric field
egradpe	fsgrid holding gradient of electron pressure electric field
egradpedt2	fsgrid holding gradient of electron pressure electric field at Runge-Kutta half-step
moments	fsgrid holding moments
momentsdt2	fsgrid holding moments at Runge-Kutta half-step
dperb	fsgrid holding perturbed magnetic field derivatives
dmoments	fsgrid holding moments derivatives
dmomentsdt2	fsgrid holding moments derivatives at Runge-Kutta half-step
bgb	fsgrid holding background magnetic field
vol	fsgrid holding volume magnetic field
technical	fsgrid holding technical parameters
fsgrid	fsgrids container
sysBoundaries	Container of existing system boundaries
dt	Length of the time step
subcycles	Number of subcycles to compute.

See also: propagateMagneticFieldSimple calculateDerivativesSimple calculateUpwindedElectricFieldSimple calculateVolumeAveragedFields calculateBVOLDerivativesSimple

Definition at line 91 of file ldz_main.cpp.

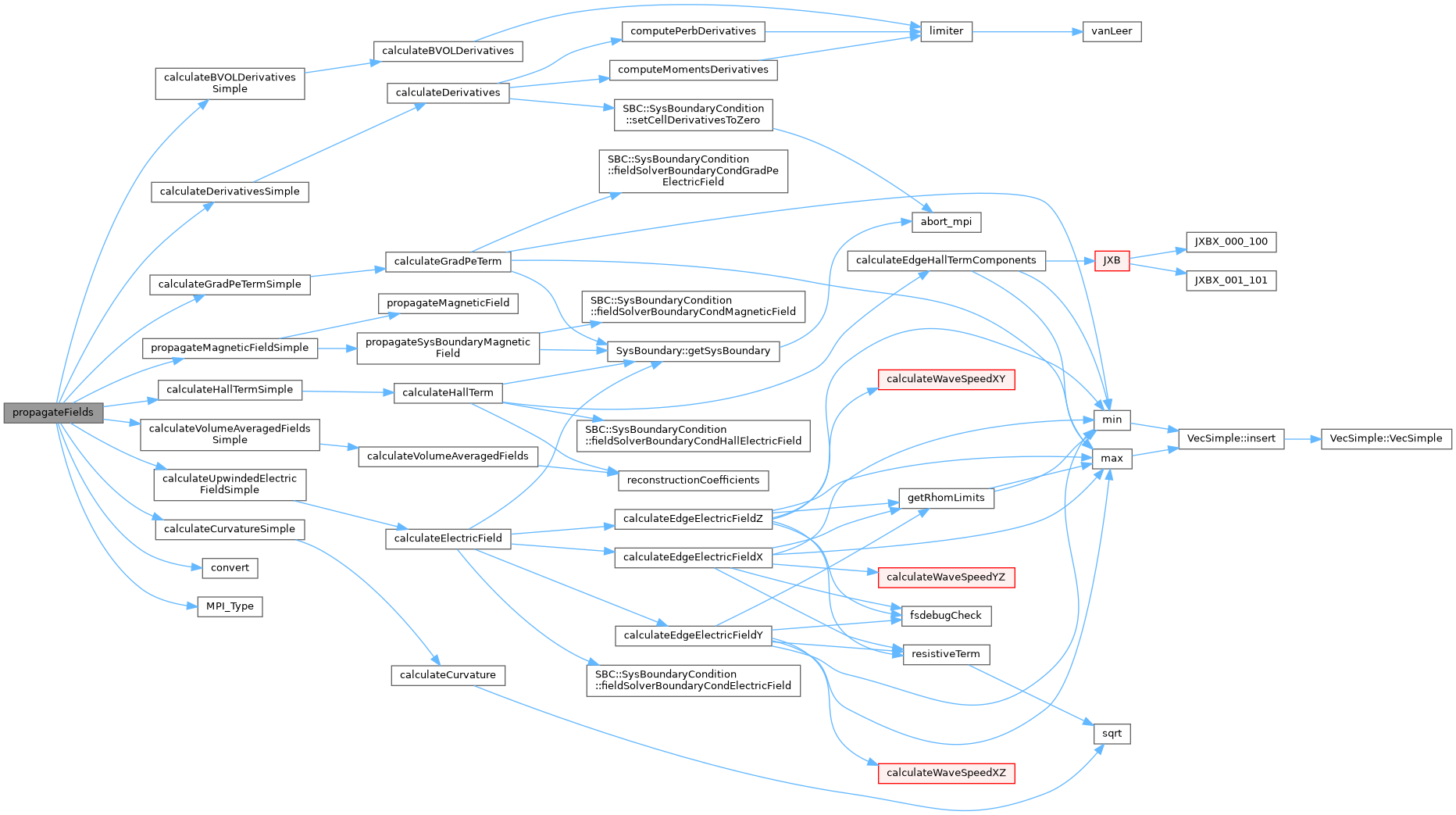

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reconstructionCoefficients()

std::array< Real, Rec::N_REC_COEFFICIENTS > reconstructionCoefficients	(	fsgrids::perbspan	perb,
		fsgrids::constdperbspan	dperb,
		const fsgrid::FsStencil &	stencil,
		Real	reconstructionOrder )

Low-level helper function.

Computes the reconstruction coefficients used for field component reconstruction. Only implemented for 2nd and 3rd order.

Parameters

perb	fsGrid holding the perturbed B quantities
dperb	fsGrid holding the derivatives of perturbed B
stencil	fsgrid stencil for the current cell
reconstructionOrder	Reconstruction order of the fields after Balsara 2009, 2 used for BVOL, 3 used for 2nd-order Hall term calculations.

Definition at line 53 of file fs_common.cpp.

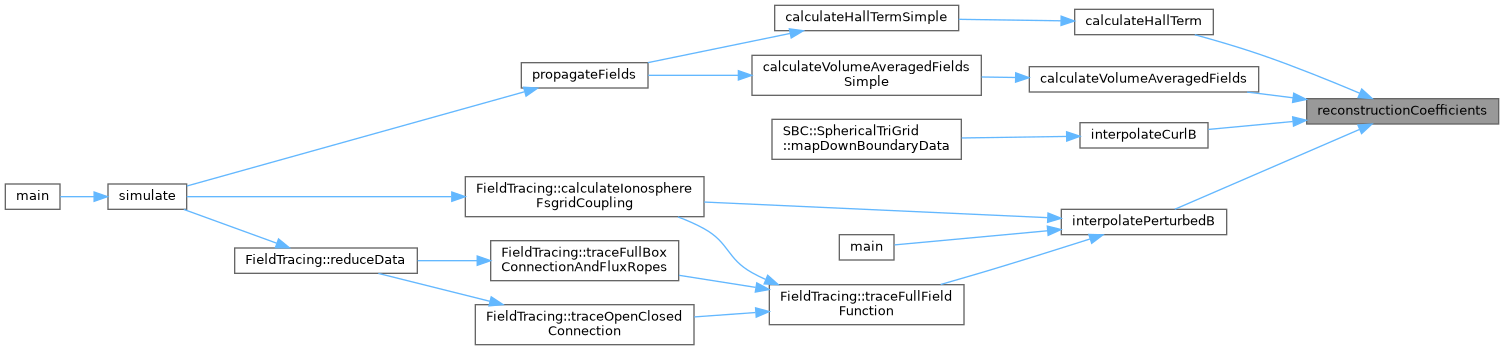

Here is the caller graph for this function:

Variable Documentation

◆ EIGTH

const Real EIGTH = 1.0/8.0

Definition at line 55 of file fs_common.h.

◆ EPS

creal EPS = 1.0e-30

static

Definition at line 61 of file fs_common.h.

◆ FOURTH

const Real FOURTH = 1.0/4.0

Definition at line 53 of file fs_common.h.

◆ HALF

const Real HALF = 0.5

Definition at line 49 of file fs_common.h.

◆ MINUS

const Real MINUS = -1.0

Definition at line 50 of file fs_common.h.

◆ PLUS

const Real PLUS = +1.0

Definition at line 51 of file fs_common.h.

◆ SIXTH

const Real SIXTH = 1.0/6.0

Definition at line 54 of file fs_common.h.

◆ TENTH

const Real TENTH = 1.0/10.0

Definition at line 56 of file fs_common.h.

◆ THIRD

const Real THIRD = 1.0/3.0

Definition at line 52 of file fs_common.h.

◆ TWELWTH

const Real TWELWTH = 1.0/12.0

Definition at line 57 of file fs_common.h.

◆ TWO

const Real TWO = 2.0

Definition at line 58 of file fs_common.h.

◆ ZERO

const Real ZERO = 0.0

Definition at line 59 of file fs_common.h.
