#include <limits>
#include <string>
#include <vector>
#include <span>
#include "definitions.h"
#include "arch/arch_device_api.h"

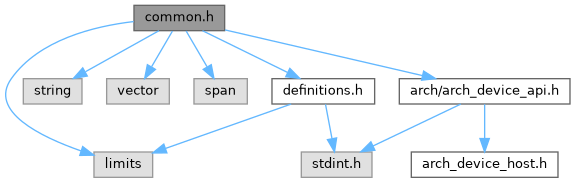

Include dependency graph for common.h:

Go to the source code of this file.

Classes
struct	fsgrids::technical
struct	globalflags

Namespaces
namespace	Neighborhoods
namespace	BlockParams
namespace	CellParams
namespace	bvolderivatives
namespace	vderivatives
namespace	fsgrids
namespace	sysboundarytype
namespace	compute
namespace	donow
namespace	hook
namespace	physicalconstants

Macros
#define	CHECK_FLOAT(x)
#define	sqr(x)
#define	pow2(x)
#define	pow3(x)
#define	MASTER_RANK 0
#define	MAX_BLOCKS_PER_DIM 256
#define	WID (4)

Typedefs
typedef std::span< std::array< Real, fsgrids::bfield::N_BFIELD > >	fsgrids::perbspan
typedef std::span< const std::array< Real, fsgrids::bfield::N_BFIELD > >	fsgrids::constperbspan
typedef std::span< std::array< Real, fsgrids::efield::N_EFIELD > >	fsgrids::efieldspan
typedef std::span< const std::array< Real, fsgrids::efield::N_EFIELD > >	fsgrids::constefieldspan
typedef std::span< std::array< Real, fsgrids::ehall::N_EHALL > >	fsgrids::ehallspan
typedef std::span< const std::array< Real, fsgrids::ehall::N_EHALL > >	fsgrids::constehallspan
typedef std::span< std::array< Real, fsgrids::egradpe::N_EGRADPE > >	fsgrids::egradpespan
typedef std::span< const std::array< Real, fsgrids::egradpe::N_EGRADPE > >	fsgrids::constegradpespan
typedef std::span< std::array< Real, fsgrids::dperb::N_DPERB > >	fsgrids::dperbspan
typedef std::span< const std::array< Real, fsgrids::dperb::N_DPERB > >	fsgrids::constdperbspan
typedef std::span< std::array< Real, bgbfield::N_BGB > >	fsgrids::bgbspan
typedef std::span< const std::array< Real, bgbfield::N_BGB > >	fsgrids::constbgbspan
typedef std::span< std::array< Real, fsgrids::moments::N_MOMENTS > >	fsgrids::momentsspan
typedef std::span< const std::array< Real, fsgrids::moments::N_MOMENTS > >	fsgrids::constmomentsspan
typedef std::span< std::array< Real, fsgrids::dmoments::N_DMOMENTS > >	fsgrids::dmomentsspan
typedef std::span< const std::array< Real, fsgrids::dmoments::N_DMOMENTS > >	fsgrids::constdmomentsspan
typedef std::span< std::array< Real, fsgrids::volfields::N_VOL > >	fsgrids::volspan
typedef std::span< const std::array< Real, fsgrids::volfields::N_VOL > >	fsgrids::constvolspan
typedef std::span< technical >	fsgrids::technicalspan
typedef std::span< const technical >	fsgrids::consttechnicalspan

Enumerations
enum	{ Neighborhoods::VLASOV_SOLVER , Neighborhoods::VLASOV_SOLVER_X , Neighborhoods::VLASOV_SOLVER_Y , Neighborhoods::VLASOV_SOLVER_Z , Neighborhoods::VLASOV_SOLVER_TARGET_X , Neighborhoods::VLASOV_SOLVER_TARGET_Y , Neighborhoods::VLASOV_SOLVER_TARGET_Z , Neighborhoods::SYSBOUNDARIES , Neighborhoods::SYSBOUNDARIES_EXTENDED , Neighborhoods::NEAREST , Neighborhoods::FULL , Neighborhoods::DIST_FUNC , Neighborhoods::SHIFT_P_X , Neighborhoods::SHIFT_P_Y , Neighborhoods::SHIFT_P_Z , Neighborhoods::SHIFT_M_X , Neighborhoods::SHIFT_M_Y , Neighborhoods::SHIFT_M_Z , Neighborhoods::VLASOV_SOLVER_X_GHOST , Neighborhoods::VLASOV_SOLVER_Y_GHOST , Neighborhoods::VLASOV_SOLVER_Z_GHOST , Neighborhoods::VLASOV_SOLVER_GHOST , Neighborhoods::VLASOV_SOLVER_GHOST_REQNEIGH , Neighborhoods::N_NEIGHBORHOODS }
enum	{ BlockParams::VXCRD , BlockParams::VYCRD , BlockParams::VZCRD , BlockParams::DVX , BlockParams::DVY , BlockParams::DVZ , BlockParams::N_VELOCITY_BLOCK_PARAMS }
enum	{ CellParams::XCRD , CellParams::YCRD , CellParams::ZCRD , CellParams::DX , CellParams::DY , CellParams::DZ , CellParams::RHOM , CellParams::VX , CellParams::VY , CellParams::VZ , CellParams::RHOQ , CellParams::RHOM_DT2 , CellParams::VX_DT2 , CellParams::VY_DT2 , CellParams::VZ_DT2 , CellParams::RHOQ_DT2 , CellParams::BGBXVOL , CellParams::BGBYVOL , CellParams::BGBZVOL , CellParams::PERBXVOL , CellParams::PERBYVOL , CellParams::PERBZVOL , CellParams::EXGRADPE , CellParams::EYGRADPE , CellParams::EZGRADPE , CellParams::RHOM_R , CellParams::VX_R , CellParams::VY_R , CellParams::VZ_R , CellParams::RHOQ_R , CellParams::RHOM_V , CellParams::VX_V , CellParams::VY_V , CellParams::VZ_V , CellParams::RHOQ_V , CellParams::P_11 , CellParams::P_22 , CellParams::P_33 , CellParams::P_23 , CellParams::P_13 , CellParams::P_12 , CellParams::P_11_DT2 , CellParams::P_22_DT2 , CellParams::P_33_DT2 , CellParams::P_23_DT2 , CellParams::P_13_DT2 , CellParams::P_12_DT2 , CellParams::P_11_R , CellParams::P_22_R , CellParams::P_33_R , CellParams::P_23_R , CellParams::P_13_R , CellParams::P_12_R , CellParams::P_11_V , CellParams::P_22_V , CellParams::P_33_V , CellParams::P_23_V , CellParams::P_12_V , CellParams::P_13_V , CellParams::EXVOL , CellParams::EYVOL , CellParams::EZVOL , CellParams::MAXVDT , CellParams::MAXRDT , CellParams::MAXFDT , CellParams::LBWEIGHTCOUNTER , CellParams::ISCELLSAVINGF , CellParams::FSGRID_RANK , CellParams::FSGRID_BOUNDARYTYPE , CellParams::CELLID , CellParams::REFINEMENT_LEVEL , CellParams::CONNECTION , CellParams::CONNECTION_FW_X , CellParams::CONNECTION_FW_Y , CellParams::CONNECTION_FW_Z , CellParams::CONNECTION_BW_X , CellParams::CONNECTION_BW_Y , CellParams::CONNECTION_BW_Z , CellParams::CURVATUREX , CellParams::CURVATUREY , CellParams::CURVATUREZ , CellParams::FLUXROPE , CellParams::AMR_DRHO , CellParams::AMR_DU , CellParams::AMR_DPSQ , CellParams::AMR_DBSQ , CellParams::AMR_DB , CellParams::AMR_ALPHA1 , CellParams::AMR_ALPHA2 , CellParams::P_ANISOTROPY , CellParams::AMR_VORTICITY , CellParams::RECENTLY_REFINED , CellParams::BULKV_FORCING_X , CellParams::BULKV_FORCING_Y , CellParams::BULKV_FORCING_Z , CellParams::NU0 , CellParams::N_SPATIAL_CELL_PARAMS }
enum	{ bvolderivatives::dPERBXVOLdx , bvolderivatives::dPERBXVOLdy , bvolderivatives::dPERBXVOLdz , bvolderivatives::dPERBYVOLdx , bvolderivatives::dPERBYVOLdy , bvolderivatives::dPERBYVOLdz , bvolderivatives::dPERBZVOLdx , bvolderivatives::dPERBZVOLdy , bvolderivatives::dPERBZVOLdz , bvolderivatives::N_BVOL_DERIVATIVES }
enum	{ vderivatives::dVxdx , vderivatives::dVxdy , vderivatives::dVxdz , vderivatives::dVydx , vderivatives::dVydy , vderivatives::dVydz , vderivatives::dVzdx , vderivatives::dVzdy , vderivatives::dVzdz , vderivatives::N_V_DERIVATIVES }
enum	fsgrids::bfield : int { fsgrids::PERBX , fsgrids::PERBY , fsgrids::PERBZ , fsgrids::N_BFIELD }
enum	fsgrids::efield { fsgrids::EX , fsgrids::EY , fsgrids::EZ , fsgrids::N_EFIELD }
enum	fsgrids::ehall { fsgrids::EXHALL_000_100 , fsgrids::EYHALL_000_010 , fsgrids::EZHALL_000_001 , fsgrids::EYHALL_100_110 , fsgrids::EZHALL_100_101 , fsgrids::EXHALL_010_110 , fsgrids::EZHALL_010_011 , fsgrids::EZHALL_110_111 , fsgrids::EXHALL_001_101 , fsgrids::EYHALL_001_011 , fsgrids::EYHALL_101_111 , fsgrids::EXHALL_011_111 , fsgrids::N_EHALL }
enum	fsgrids::egradpe { fsgrids::EXGRADPE , fsgrids::EYGRADPE , fsgrids::EZGRADPE , fsgrids::N_EGRADPE }
enum	fsgrids::moments { fsgrids::RHOM , fsgrids::RHOQ , fsgrids::VX , fsgrids::VY , fsgrids::VZ , fsgrids::P_11 , fsgrids::P_22 , fsgrids::P_33 , fsgrids::N_MOMENTS }
enum	fsgrids::dperb { fsgrids::dPERBxdy , fsgrids::dPERBxdz , fsgrids::dPERBydx , fsgrids::dPERBydz , fsgrids::dPERBzdx , fsgrids::dPERBzdy , fsgrids::dPERBxdyy , fsgrids::dPERBxdzz , fsgrids::dPERBxdyz , fsgrids::dPERBydxx , fsgrids::dPERBydzz , fsgrids::dPERBydxz , fsgrids::dPERBzdxx , fsgrids::dPERBzdyy , fsgrids::dPERBzdxy , fsgrids::N_DPERB }
enum	fsgrids::dmoments { fsgrids::drhomdx , fsgrids::drhomdy , fsgrids::drhomdz , fsgrids::drhoqdx , fsgrids::drhoqdy , fsgrids::drhoqdz , fsgrids::dp11dx , fsgrids::dp11dy , fsgrids::dp11dz , fsgrids::dp22dx , fsgrids::dp22dy , fsgrids::dp22dz , fsgrids::dp33dx , fsgrids::dp33dy , fsgrids::dp33dz , fsgrids::dVxdx , fsgrids::dVxdy , fsgrids::dVxdz , fsgrids::dVydx , fsgrids::dVydy , fsgrids::dVydz , fsgrids::dVzdx , fsgrids::dVzdy , fsgrids::dVzdz , fsgrids::dPedx , fsgrids::dPedy , fsgrids::dPedz , fsgrids::N_DMOMENTS }
enum	fsgrids::bgbfield : int { fsgrids::BGBX , fsgrids::BGBY , fsgrids::BGBZ , fsgrids::BGBXVOL , fsgrids::BGBYVOL , fsgrids::BGBZVOL , fsgrids::BGBXVDCORR , fsgrids::BGBYVDCORR , fsgrids::BGBZVDCORR , fsgrids::dBGBxdy , fsgrids::dBGBxdz , fsgrids::dBGBydx , fsgrids::dBGBydz , fsgrids::dBGBzdx , fsgrids::dBGBzdy , fsgrids::dBGBXVOLdx , fsgrids::dBGBXVOLdy , fsgrids::dBGBXVOLdz , fsgrids::dBGBYVOLdx , fsgrids::dBGBYVOLdy , fsgrids::dBGBYVOLdz , fsgrids::dBGBZVOLdx , fsgrids::dBGBZVOLdy , fsgrids::dBGBZVOLdz , fsgrids::N_BGB }
enum	fsgrids::volfields { fsgrids::PERBXVOL , fsgrids::PERBYVOL , fsgrids::PERBZVOL , fsgrids::dPERBXVOLdx , fsgrids::dPERBXVOLdy , fsgrids::dPERBXVOLdz , fsgrids::dPERBYVOLdx , fsgrids::dPERBYVOLdy , fsgrids::dPERBYVOLdz , fsgrids::dPERBZVOLdx , fsgrids::dPERBZVOLdy , fsgrids::dPERBZVOLdz , fsgrids::EXVOL , fsgrids::EYVOL , fsgrids::EZVOL , fsgrids::CURVATUREX , fsgrids::CURVATUREY , fsgrids::CURVATUREZ , fsgrids::N_VOL }
enum	ionosphereParameters { SOURCE , SIGMA , SIGMA12 , SIGMA13 , SIGMA21 , SIGMA22 , SIGMA23 , SIGMA31 , SIGMA32 , SIGMA33 , SIGMAP , SIGMAH , SIGMAPARALLEL , PRECIP , RHON , TEMPERATURE , NODE_BX , NODE_BY , NODE_BZ , UPMAPPED_BX , UPMAPPED_BY , UPMAPPED_BZ , SOLUTION , BEST_SOLUTION , RESIDUAL , RRESIDUAL , ZPARAM , ZZPARAM , PPPARAM , PPARAM , N_IONOSPHERE_PARAMETERS }
enum	{ sysboundarytype::DO_NOT_COMPUTE , sysboundarytype::NOT_SYSBOUNDARY , sysboundarytype::IONOSPHERE , sysboundarytype::OUTFLOW , sysboundarytype::MAXWELLIAN , sysboundarytype::COPYSPHERE , sysboundarytype::OUTER_BOUNDARY_PADDING , sysboundarytype::N_SYSBOUNDARY_CONDITIONS }
enum	{ RK_ORDER1 , RK_ORDER2_STEP1 , RK_ORDER2_STEP2 }
enum	{ donow::SAVE , donow::DORC , donow::DOLB , donow::DOMR , donow::N_DONOW }
enum	{ hook::END_OF_TIME_STEP }

Functions
void	bailout (const bool condition, const std::string &message)
	A function to stop the simulation if the boolean condition is true. Raises a flag which gets MPI_Reduced and initiates bailout. [bailout] parameters set details.
void	bailout (const bool condition, const char *const file, const int line)
	A function to stop the simulation if the boolean condition is true. Raises a flag which gets MPI_Reduced and initiates bailout. [bailout] parameters set details.
void	bailout (const bool condition, const std::string &message, const char *const file, const int line)
	A function to stop the simulation if the boolean condition is true. Raises a flag which gets MPI_Reduced and initiates bailout. [bailout] parameters set details.
void	abort_mpi (const std::string str, const int err_type=0)
template<typename INT>
ARCH_HOSTDEV INT	cellIndex (const INT &i, const INT &j, const INT &k)
template<typename T>
int	sign (const T &value)
const std::vector< CellID > &	getLocalCells ()

Variables
const uint	compute::BX = (1 << 0)
const uint	compute::BY = (1 << 1)
const uint	compute::BZ = (1 << 2)
const uint	compute::EX = (1 << 3)
const uint	compute::EY = (1 << 4)
const uint	compute::EZ = (1 << 5)
const int	WID2 = WID*WID
const int	WID3 = WID2*WID
const int	SIZE_VELBLOCK = WID3
const Real	physicalconstants::EPS_0 = 8.85418782e-12
const Real	physicalconstants::MU_0 = 1.25663706e-6
const Real	physicalconstants::K_B = 1.3806503e-23
const Real	physicalconstants::CHARGE = 1.60217653e-19
const Real	physicalconstants::MASS_ELECTRON = 9.10938188e-31
const Real	physicalconstants::MASS_PROTON = 1.67262158e-27
const Real	physicalconstants::R_E = 6.3712e6

Macro Definition Documentation

◆ CHECK_FLOAT

#define CHECK_FLOAT ( x )

Value:

{}

Definition at line 42 of file common.h.

◆ MASTER_RANK

#define MASTER_RANK 0

Definition at line 67 of file common.h.

◆ MAX_BLOCKS_PER_DIM

#define MAX_BLOCKS_PER_DIM 256

Definition at line 73 of file common.h.

◆ pow2

#define pow2 ( x )

Value:

sqr(x)

sqr

#define sqr(x)

Definition common.h:63

Definition at line 64 of file common.h.

◆ pow3

#define pow3 ( x )

Value:

((x)*(x)*(x))

Definition at line 65 of file common.h.

◆ sqr

#define sqr ( x )

Value:

((x)*(x))

Definition at line 63 of file common.h.

◆ WID

#define WID (4)

Number of cells per coordinate in a velocity block. Defaults to the historical 4.

Definition at line 514 of file common.h.

Enumeration Type Documentation

◆ anonymous enum

anonymous enum

Steps in Runge-Kutta methods

Enumerator
RK_ORDER1	First order method, one step (and initialisation)
RK_ORDER2_STEP1	Two-step second order method, first step
RK_ORDER2_STEP2	Two-step second order method, second step

Definition at line 508 of file common.h.

◆ ionosphereParameters

enum ionosphereParameters

Enumerator
SOURCE	Field aligned current source term (Ampere). Note: this is current, not density.
SIGMA
SIGMA12
SIGMA13
SIGMA21
SIGMA22
SIGMA23	Overall conductivity tensor
SIGMA31
SIGMA32
SIGMA33
SIGMAP	Scalar Pedersen conductivity
SIGMAH	Scalar Hall conductivity
SIGMAPARALLEL	Scalar parallel conductivity
PRECIP	Precipitation
RHON	Downmapped magnetospheric plasma number density
TEMPERATURE	Downmapped electron temperature
NODE_BX
NODE_BY
NODE_BZ	Magnetic field at the node
UPMAPPED_BX
UPMAPPED_BY
UPMAPPED_BZ	Magnetic field at the upper and of the mapping fieldline
SOLUTION	Currently considered solution potential
BEST_SOLUTION	Best solution found so far
RESIDUAL	Residual of the current solution
RRESIDUAL
ZPARAM
ZZPARAM
PPPARAM
PPARAM
N_IONOSPHERE_PARAMETERS

Definition at line 458 of file common.h.

Function Documentation

◆ abort_mpi()

void abort_mpi	(	const std::string	str,
		const int	err_type )

Helper function for error handling. err_type default to 0.

Definition at line 90 of file common.cpp.

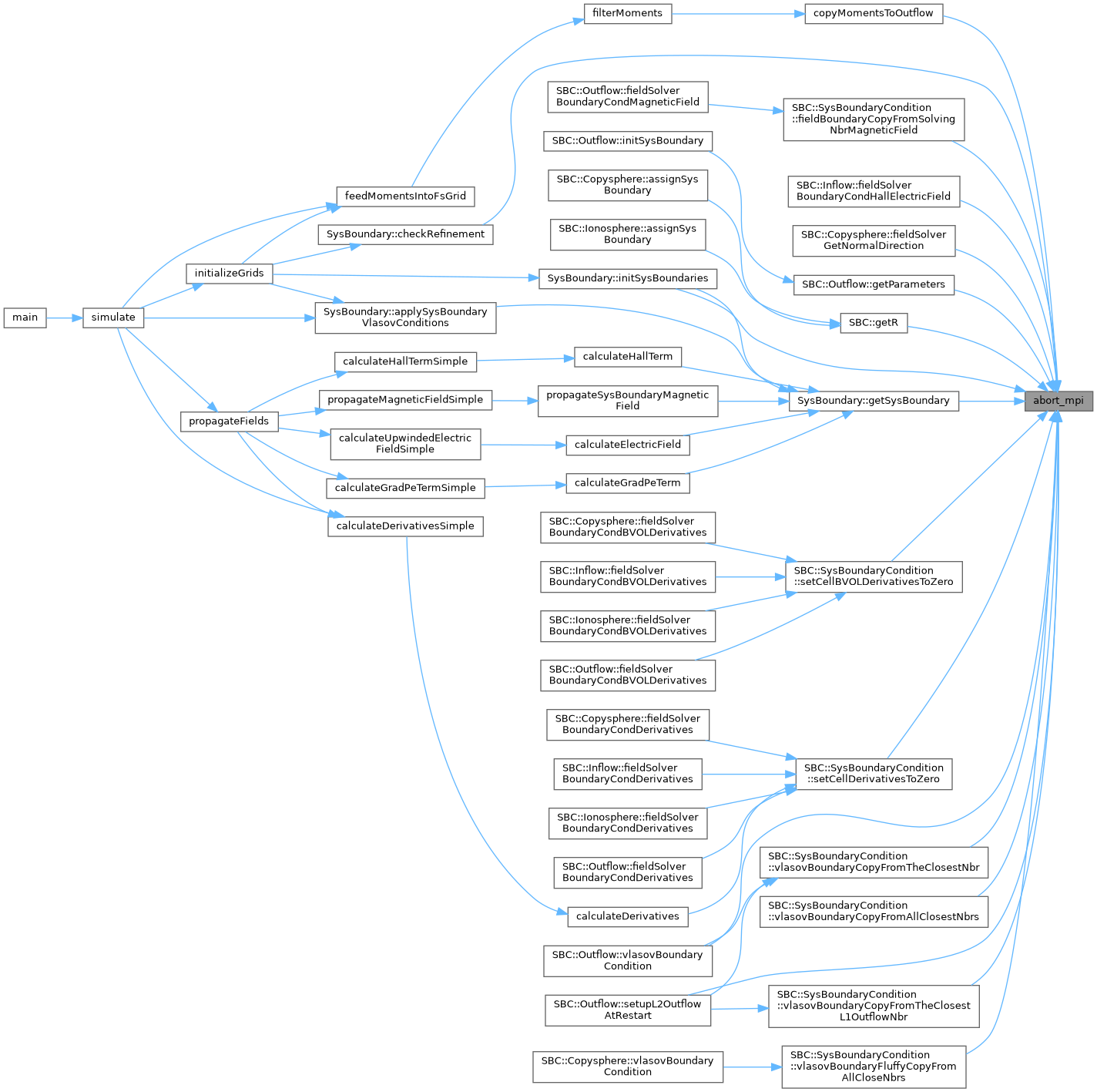

Here is the caller graph for this function:

◆ bailout() [1/3]

void bailout	(	const bool	condition,
		const char *const	file,
		const int	line )

A function to stop the simulation if the boolean condition is true. Raises a flag which gets MPI_Reduced and initiates bailout. [bailout] parameters set details.

Parameters

condition	if true, bailout is initiated
file	code file where bailout was called (use FILE in the call)
line	code line where bailout was called (use LINE in the call)

Definition at line 68 of file common.cpp.

Here is the call graph for this function:

◆ bailout() [2/3]

void bailout	(	const bool	condition,
		const std::string &	message )

A function to stop the simulation if the boolean condition is true. Raises a flag which gets MPI_Reduced and initiates bailout. [bailout] parameters set details.

Parameters

condition	if true, bailout is initiated
message	information message printed to cerr

Definition at line 82 of file common.cpp.

Here is the call graph for this function:

◆ bailout() [3/3]

void bailout	(	const bool	condition,
		const std::string &	message,
		const char *const	file,
		const int	line )

A function to stop the simulation if the boolean condition is true. Raises a flag which gets MPI_Reduced and initiates bailout. [bailout] parameters set details.

Parameters

condition	if true, bailout is initiated
message	information message printed to cerr
file	code file where bailout was called (use FILE in the call)
line	code line where bailout was called (use LINE in the call)

Definition at line 36 of file common.cpp.

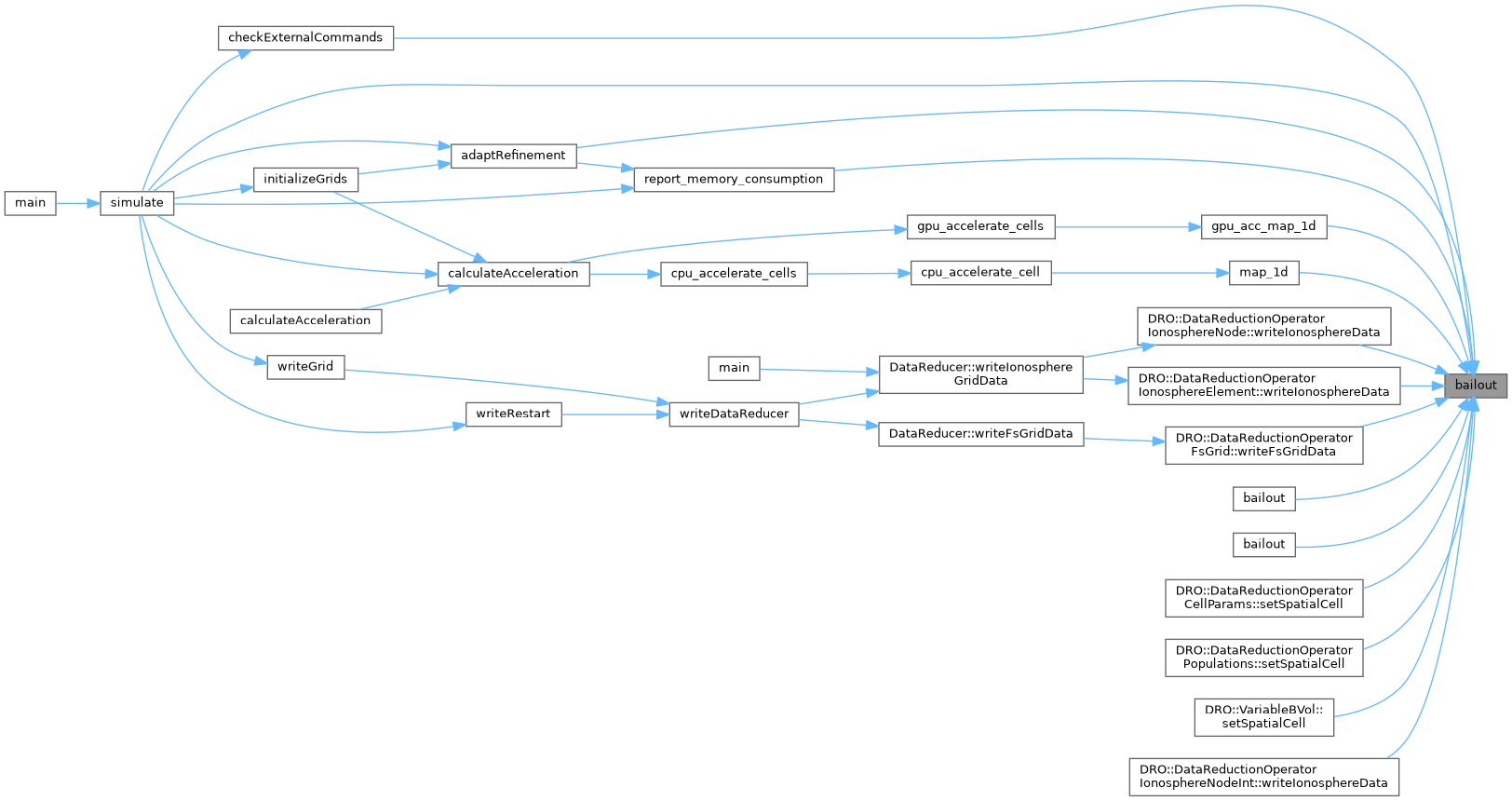

Here is the caller graph for this function:

◆ cellIndex()

template<typename INT>

ARCH_HOSTDEV INT cellIndex	(	const INT &	i,
		const INT &	j,
		const INT &	k )

inline

Get the cellindex in the velocity space block

Definition at line 522 of file common.h.

◆ getLocalCells()

const std::vector< CellID > & getLocalCells ( )

Get local cell IDs. This function creates a cached copy of the cell ID lists to significantly improve performance. The cell ID cache is recalculated every time the mesh partitioning changes.

Returns: Local cell IDs.

Definition at line 39 of file main.cpp.

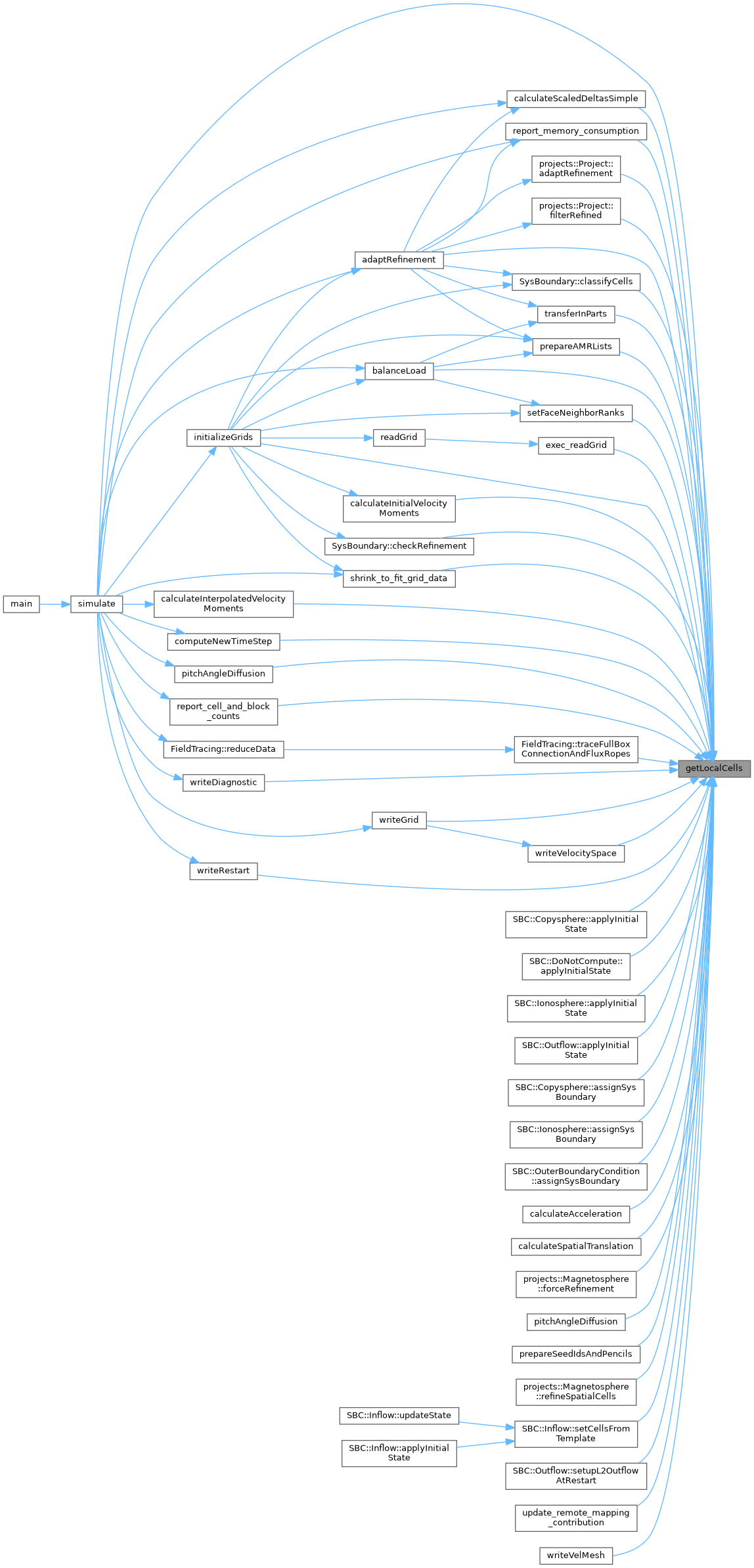

Here is the caller graph for this function:

◆ sign()

template<typename T>

int sign ( const T & value )

inline

Definition at line 528 of file common.h.

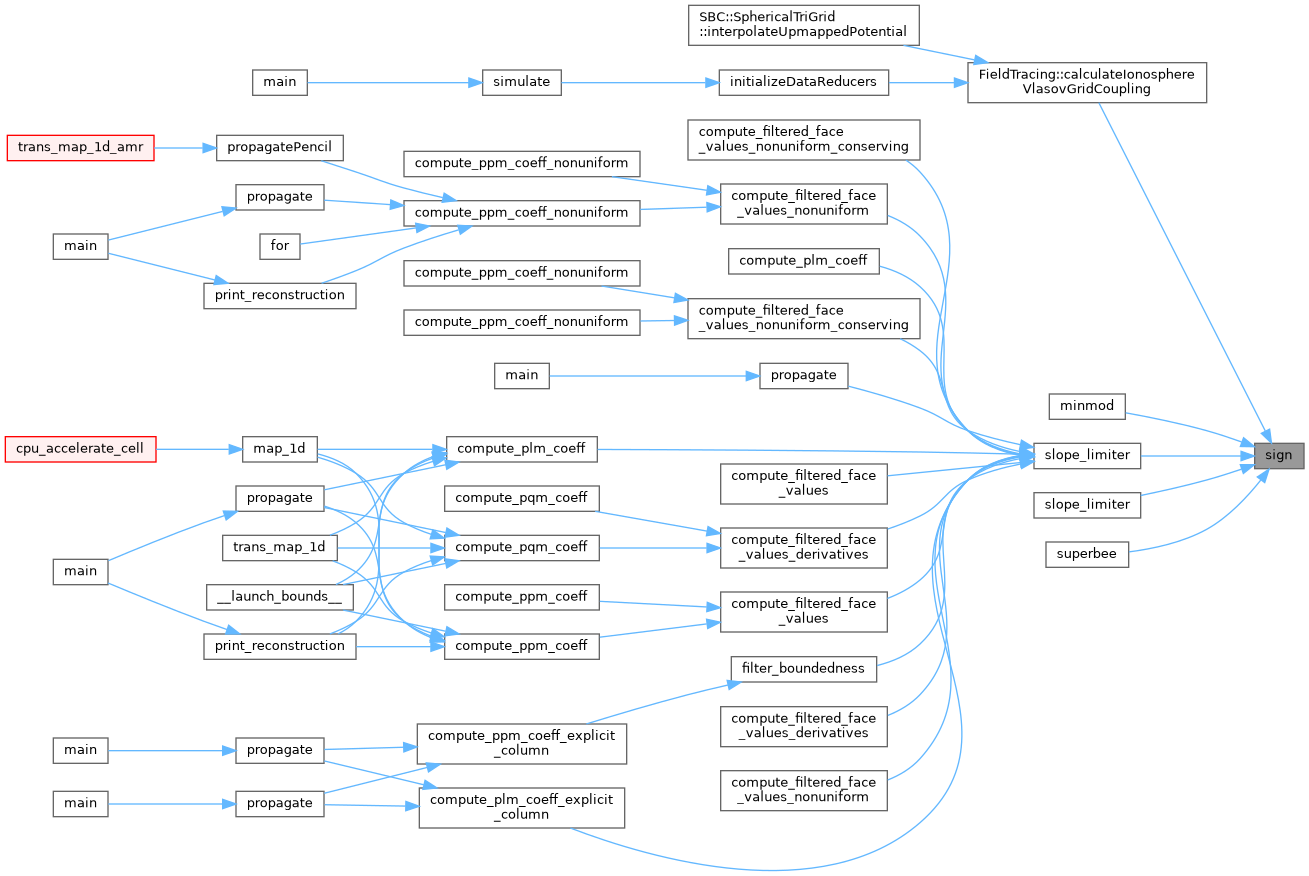

Here is the caller graph for this function:

Variable Documentation

◆ SIZE_VELBLOCK

const int SIZE_VELBLOCK = WID3

Number of cells in a velocity block.

Definition at line 526 of file common.h.

◆ WID2

const int WID2 = WID*WID

Number of cells per 2D slab in a velocity block.

Definition at line 516 of file common.h.

◆ WID3

const int WID3 = WID2*WID

Number of cells in a velocity block.

Definition at line 517 of file common.h.
