iowrite.h File Reference

#include "grid.h"
#include "mpi.h"
#include <dccrg.hpp>
#include <dccrg_cartesian_geometry.hpp>
#include <string>
#include <vector>
#include <vlsv_writer.h>
#include "definitions.h"
#include "spatial_cells/spatial_cell_wrapper.hpp"
#include "datareduction/datareducer.h"

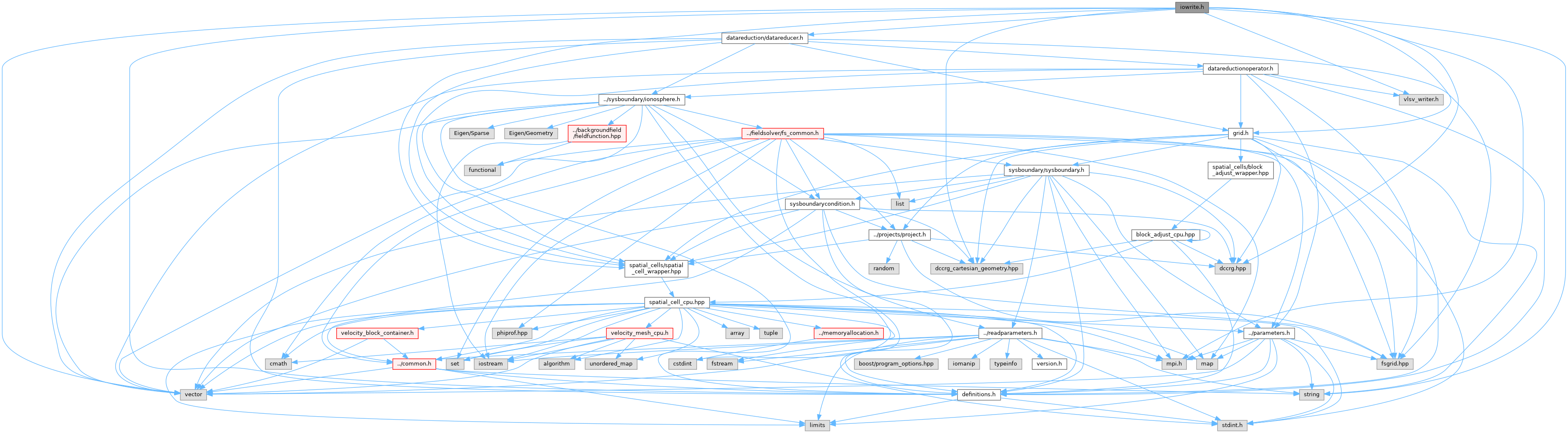

Include dependency graph for iowrite.h:

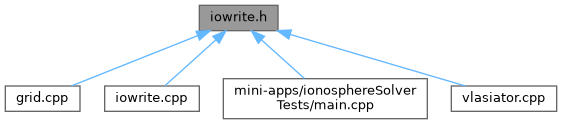

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
bool	writeGrid (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const FieldSolverData &fieldSolverData, fsgrids::consttechnicalspan technical, const std::string &versionInfo, const std::string &configInfo, DataReducer *dataReducer, const uint &index, const int &stripe, const bool writeGhosts, bool compress_vdfs=false)
	Write out system into a vlsv file.
bool	writeRestart (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const FieldSolverData &fieldSolverData, fsgrids::consttechnicalspan technical, const std::string &versionInfo, const std::string &configInfo, DataReducer &dataReducer, const std::string &name, const uint &fileIndex, const bool dateInFileName, const int &stripe, bool compress_vdfs)
	Write out a restart of the simulation into a vlsv file. All block data in remote cells will be reset.
bool	writeDiagnostic (const dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, DataReducer &dataReducer)
	Write out simulation diagnostics into diagnostic.txt.
bool	writeVelocitySpace (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, vlsv::Writer &vlsvWriter, int index, const std::vector< uint64_t > &cells)
bool	writeVelocityDistributionData (vlsv::Writer &vlsvWriter, const dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const std::vector< uint64_t > &cells, MPI_Comm comm)
bool	writeIonosphereGridMetadata (vlsv::Writer &vlsvWriter)

Function Documentation

writeDiagnostic()

bool writeDiagnostic	(	const dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		DataReducer &	dataReducer )

Write out simulation diagnostics into diagnostic.txt.

Parameters

mpiGrid	The DCCRG grid with spatial cells
dataReducer	Contains datareductionoperators that are used to compute diagnostic data

Definition at line 2422 of file iowrite.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

writeGrid()

bool writeGrid	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		const FieldSolverData &	fieldSolverData,
		fsgrids::consttechnicalspan	technical,
		const std::string &	versionInfo,
		const std::string &	configInfo,
		DataReducer *	dataReducer,
		const uint &	outputFileTypeIndex,
		const int &	stripe,
		const bool	writeGhosts,
		bool	compress_vdfs )

Write out system into a vlsv file.

Parameters

mpiGrid	The DCCRG grid with spatial cells
dataReducer	Contains datareductionoperators that are used to compute data that is added into file
index	Index to call the correct member of the various parameter vectors
writeGhosts	Write ghost zones
mpiGrid	The DCCRG grid with spatial cells
dataReducer	Contains datareductionoperators that are used to compute data that is added into file
index	Index to call the correct member of the various parameter vectors
writeGhosts	If true, writes out ghost cells (cells that exist on the process boundary so other process' cells)

Definition at line 1829 of file iowrite.cpp.

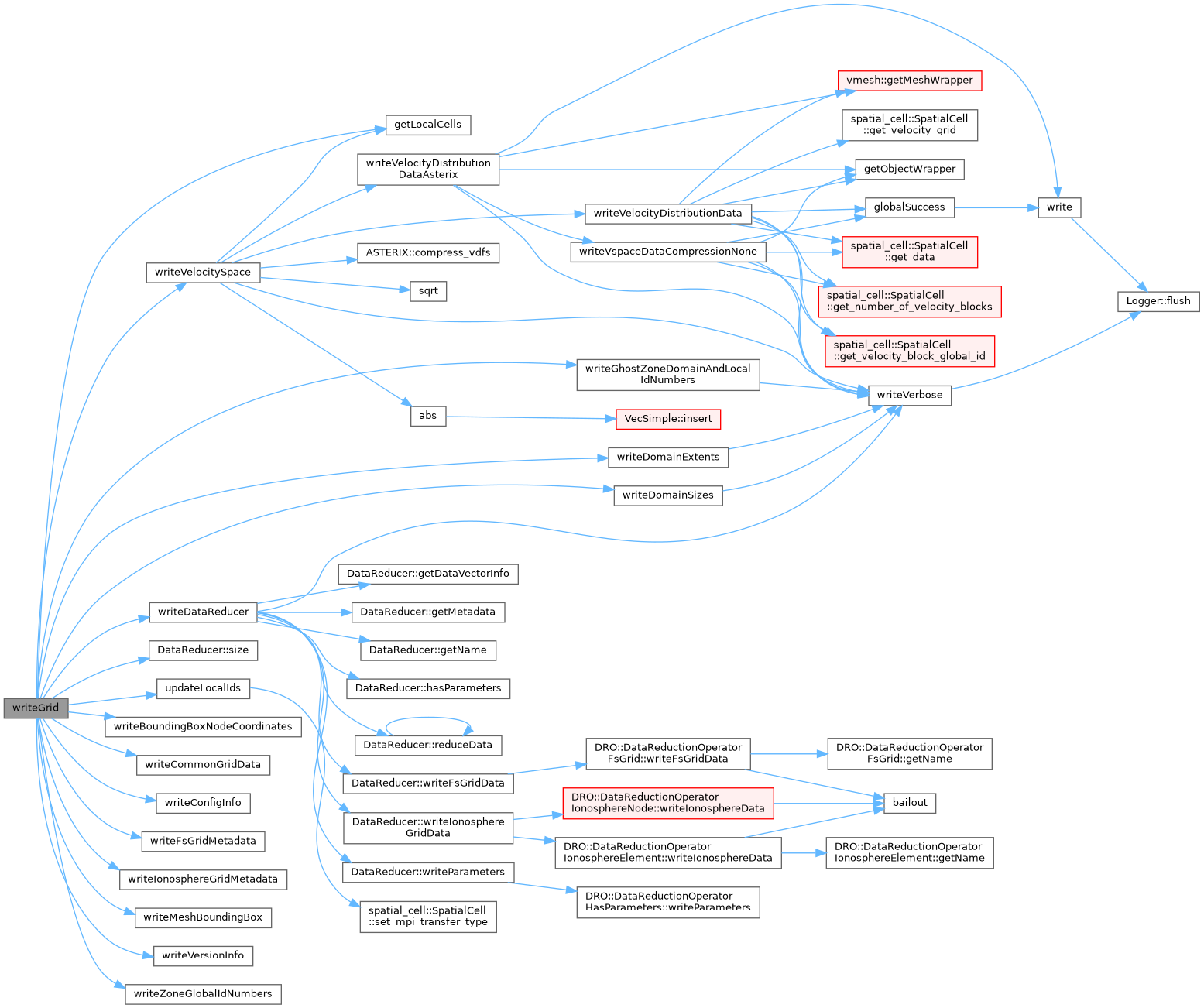

Here is the call graph for this function:

Here is the caller graph for this function:

writeIonosphereGridMetadata()

bool writeIonosphereGridMetadata

(

vlsv::Writer &

vlsvWriter

)

Writes the mesh metadata for Visit to read the Ionosphere grid and its variables.

Definition at line 1496 of file iowrite.cpp.

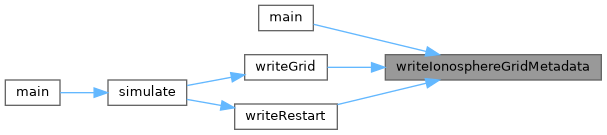

Here is the caller graph for this function:

writeRestart()

bool writeRestart	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		const FieldSolverData &	fieldSolverData,
		fsgrids::consttechnicalspan	technical,
		const std::string &	versionInfo,
		const std::string &	configInfo,
		DataReducer &	dataReducer,
		const std::string &	name,
		const uint &	fileIndex,
		const bool	dateInFileName,
		const int &	stripe,
		bool	compress_vdfs )

Write out a restart of the simulation into a vlsv file. All block data in remote cells will be reset.

Parameters

mpiGrid	The DCCRG grid with spatial cells
perBGrid	fsgrid with perturbed B
EGrid	fsgrid with E
EHallGrid	fsgrid with Hall term
EGradPeGrid	fsgrid with E grad(Pe) term
momentsGrid	fsgrid with moments
dPerBGrid	fsgrid with derivatives of perturbed B
dMomentsGrid	fsgrid with derivatives of moments
BgBGrid	fsgrid with background B
volGrid	fsgrid with volume fields
technicalGrid	fsgrid with technical info
versionInfo	version info string
configInfo	cfg file string
dataReducer	Contains datareductionoperators that are used to compute data that is added into file
name	File name prefix, file will be called "name.index.vlsv"
fileIndex	File index, file will be called "name.index.vlsv"
dateInFileName	Write the date (restarts) or not (recovers)
stripe	lustre stripe count

writeVelocityDistributionData()

bool writeVelocityDistributionData	(	vlsv::Writer &	vlsvWriter,
		const dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		const std::vector< uint64_t > &	cells,
		MPI_Comm	comm )

writeVelocitySpace()

bool writeVelocitySpace	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		vlsv::Writer &	vlsvWriter,
		int	index,
		const std::vector< uint64_t > &	cells )
