#include <datareducer.h>

Public Member Functions
	DataReducer ()
	~DataReducer ()
bool	addOperator (DRO::DataReductionOperator *op)
bool	getDataVectorInfo (const unsigned int &operatorID, std::string &dataType, unsigned int &dataSize, unsigned int &vectorSize) const
bool	addMetadata (const unsigned int operatorID, std::string unit, std::string unitLaTeX, std::string variableLaTeX, std::string unitConversion)
bool	getMetadata (const unsigned int &operatorID, std::string &unit, std::string &unitLaTeX, std::string &variableLaTeX, std::string &unitConversion) const
std::string	getName (const unsigned int &operatorID) const
bool	hasParameters (const unsigned int &operatorID) const
bool	reduceData (const SpatialCell cell, const unsigned int &operatorID, char buffer)
bool	reduceDiagnostic (const SpatialCell cell, const unsigned int &operatorID, Real result)
unsigned int	size () const
bool	writeParameters (const unsigned int &operatorID, vlsv::Writer &vlsvWriter)
bool	writeFsGridData (const FieldSolverData &fieldSolverData, const std::string &meshName, const unsigned int operatorID, vlsv::Writer &vlsvWriter, const bool writeAsFloat=false)
bool	writeIonosphereGridData (SBC::SphericalTriGrid &grid, const std::string &meshName, const unsigned int operatorID, vlsv::Writer &vlsvWriter)

Private Member Functions
	DataReducer (const DataReducer &dr)

Private Attributes
std::vector< DRO::DataReductionOperator * >	operators

Detailed Description

The purpose of DataReducer is to contain DRO::DataReductionOperators, and apply them to simulation data when writing output files. Files containing full distribution functions of every spatial cell require so much disk space that they cannot be written out so often as user would want. Thus, derived quantities need to be calculated for every spatial cell, which are then written to data files. This process is here called data reduction.

Definition at line 42 of file datareducer.h.

Constructor & Destructor Documentation

◆ DataReducer() [1/2]

DataReducer::DataReducer ( )

Constructor for class DataReducer.

Definition at line 2887 of file datareducer.cpp.

Here is the caller graph for this function:

◆ ~DataReducer()

DataReducer::~DataReducer ( )

Destructor for class DataReducer. All stored DataReductionOperators are deleted.

Definition at line 2892 of file datareducer.cpp.

◆ DataReducer() [2/2]

DataReducer::DataReducer ( const DataReducer & dr )

private

Private copy-constructor to prevent copying the class.

Here is the call graph for this function:

Member Function Documentation

◆ addMetadata()

bool DataReducer::addMetadata	(	const unsigned int	operatorID,
		std::string	unit,
		std::string	unitLaTeX,
		std::string	variableLaTeX,
		std::string	unitConversion )

Add a metadata to the specified DRO::DataReductionOperator.

Parameters

operatorID	ID number of the DataReductionOperator to add metadata to
unit	string with the physical unit of the DRO result
unitLaTeX	LaTeX-formatted string with the physical unit of the DRO result
variableLaTeX	LaTeX-formatted string with a descriptive short name for the DRO result
conversionFactor	floating point conversion factor between DRO result and SI units

Returns: If true, the given metadata was added successfully.

Definition at line 2941 of file datareducer.cpp.

Here is the caller graph for this function:

◆ addOperator()

bool DataReducer::addOperator ( DRO::DataReductionOperator * op )

Add a new DRO::DataReductionOperator which has been created with new operation. DataReducer will take care of deleting it.

Returns: If true, the given DRO::DataReductionOperator was added successfully.

Definition at line 2904 of file datareducer.cpp.

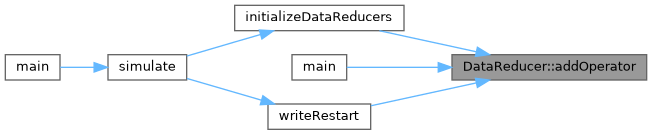

Here is the caller graph for this function:

◆ getDataVectorInfo()

bool DataReducer::getDataVectorInfo	(	const unsigned int &	operatorID,
		std::string &	dataType,
		unsigned int &	dataSize,
		unsigned int &	vectorSize ) const

Get info on the type of data calculated by the given DataReductionOperator. A DataReductionOperator writes an array on disk. Each element of the array is a vector with n elements. Finally, each vector element has a byte size, as given by the sizeof function.

Parameters

operatorID	ID number of the DataReductionOperator whose output data info is requested.
dataType	Basic datatype, must be int, uint, or float.
dataSize	Byte size of written datatype, for example double-precision floating points have byte size of sizeof(double).
vectorSize	How many elements are in the vector returned by the DataReductionOperator.

Returns: If true, DataReductionOperator was found and it returned sensible values.

Definition at line 2928 of file datareducer.cpp.

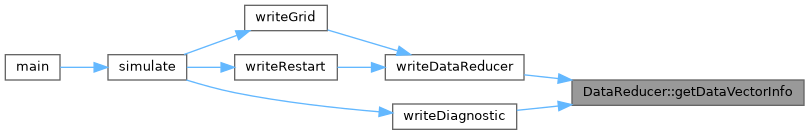

Here is the caller graph for this function:

◆ getMetadata()

bool DataReducer::getMetadata	(	const unsigned int &	operatorID,
		std::string &	unit,
		std::string &	unitLaTeX,
		std::string &	variableLaTeX,
		std::string &	unitConversion ) const

Get metadata on the unit of data calculated by the given DataReductionOperator.

Parameters

operatorID	ID number of the DataReductionOperator whose output unit metadata is requested.
unit	Physical unit of variable
unitLaTeX	Physical unit of variable, written using LaTeX notation
unitConversion	Floating point value of conversion factor to SI units

Returns: If true, DataReductionOperator was found and it returned sensible values.

Definition at line 2953 of file datareducer.cpp.

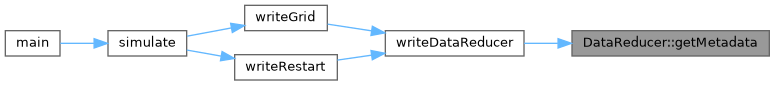

Here is the caller graph for this function:

◆ getName()

std::string DataReducer::getName ( const unsigned int & operatorID ) const

Get the name of a DataReductionOperator.

Parameters

operatorID ID number of the operator whose name is requested.

Returns: Name of the operator.

Definition at line 2913 of file datareducer.cpp.

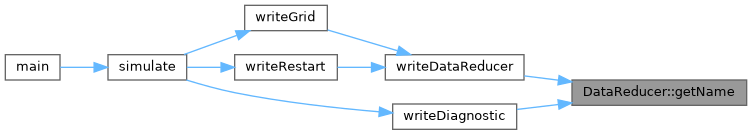

Here is the caller graph for this function:

◆ hasParameters()

bool DataReducer::hasParameters ( const unsigned int & operatorID ) const

Ask a DataReductionOperator if it wants to write parameters to the vlsv file header

Parameters

operatorID ID number of the DataReductionOperator.

Returns: If true, then VLSVWriter should be passed to the DataReductionOperator.

Definition at line 2961 of file datareducer.cpp.

Here is the caller graph for this function:

◆ reduceData()

bool DataReducer::reduceData	(	const SpatialCell *	cell,
		const unsigned int &	operatorID,
		char *	buffer )

Request a DataReductionOperator to calculate its output data and to write it to the given buffer.

Parameters

cell	Pointer to spatial cell whose data is to be reduced.
operatorID	ID number of the applied DataReductionOperator.
buffer	Buffer in which DataReductionOperator should write its data.

Returns: If true, DataReductionOperator calculated and wrote data successfully.

Definition at line 2972 of file datareducer.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reduceDiagnostic()

bool DataReducer::reduceDiagnostic	(	const SpatialCell *	cell,
		const unsigned int &	operatorID,
		Real *	result )

Request a DataReductionOperator to calculate its output data and to write it to the given variable.

Parameters

cell	Pointer to spatial cell whose data is to be reduced.
operatorID	ID number of the applied DataReductionOperator.
result	Real variable in which DataReductionOperator should write its result.

Returns: If true, DataReductionOperator calculated and wrote data successfully.

Definition at line 2987 of file datareducer.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ size()

unsigned int DataReducer::size ( ) const

Get the number of DataReductionOperators stored in DataReducer.

Returns: Number of DataReductionOperators stored in DataReducer.

Definition at line 2999 of file datareducer.cpp.

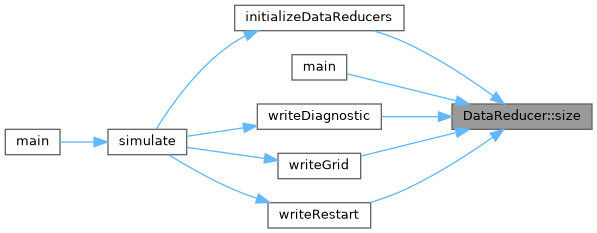

Here is the caller graph for this function:

◆ writeFsGridData()

bool DataReducer::writeFsGridData	(	const FieldSolverData &	fieldSolverData,
		const std::string &	meshName,
		const unsigned int	operatorID,
		vlsv::Writer &	vlsvWriter,
		const bool	writeAsFloat = false )

Write all data thet the given DataReductionOperator wants to obtain from fsgrid into the output file.

Definition at line 3015 of file datareducer.cpp.

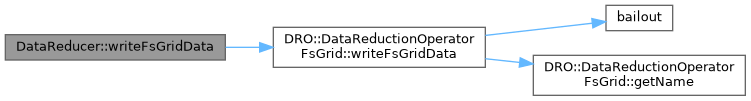

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeIonosphereGridData()

bool DataReducer::writeIonosphereGridData	(	SBC::SphericalTriGrid &	grid,
		const std::string &	meshName,
		const unsigned int	operatorID,
		vlsv::Writer &	vlsvWriter )

Definition at line 3030 of file datareducer.cpp.

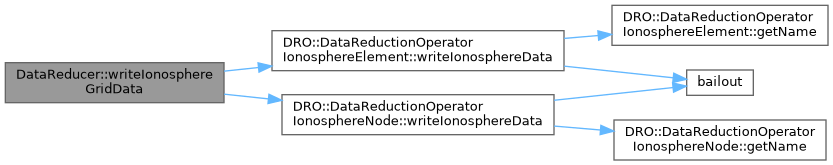

Here is the call graph for this function:

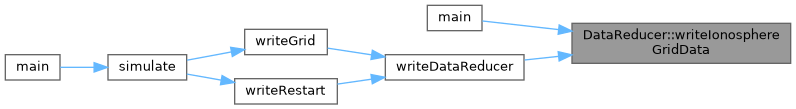

Here is the caller graph for this function:

◆ writeParameters()

bool DataReducer::writeParameters	(	const unsigned int &	operatorID,
		vlsv::Writer &	vlsvWriter )

Write parameters related to given DataReductionOperator to the output file.

Parameters

operatorID	ID number of the selected DataReductionOperator.
vlsvWriter	VLSV file writer that has output file open.

Returns: If true, DataReductionOperator wrote its parameters successfully.

Definition at line 3005 of file datareducer.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ operators

std::vector<DRO::DataReductionOperator*> DataReducer::operators

private

A container for all DRO::DataReductionOperators stored in DataReducer.

Definition at line 69 of file datareducer.h.

The documentation for this class was generated from the following files:

datareduction/datareducer.h
datareduction/datareducer.cpp
