gridGlue.hpp File Reference

#include "../definitions.h"
#include <fsgrid.hpp>
#include <vector>
#include <array>
#include <map>
#include <set>

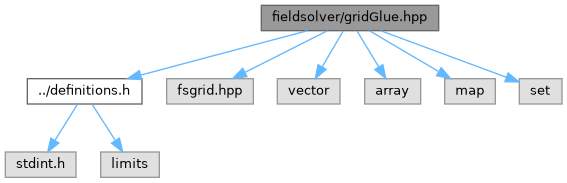

Include dependency graph for gridGlue.hpp:

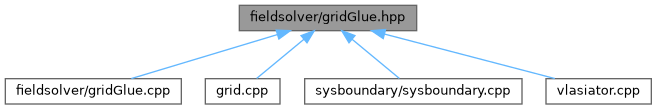

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Enumerations

enum

FieldsToCommunicate {   PERBXVOL , PERBYVOL , PERBZVOL , dPERBXVOLdx ,   dPERBXVOLdy , dPERBXVOLdz , dPERBYVOLdx , dPERBYVOLdy ,   dPERBYVOLdz , dPERBZVOLdx , dPERBZVOLdy , dPERBZVOLdz ,   BGBXVOL , BGBYVOL , BGBZVOL , EXGRADPE ,   EYGRADPE , EZGRADPE , EXVOL , EYVOL ,   EZVOL , CURVATUREX , CURVATUREY , CURVATUREZ ,   dVxdx , dVxdy , dVxdz , dVydx ,   dVydy , dVydz , dVzdx , dVzdy ,   dVzdz , N_FIELDSTOCOMMUNICATE }

Functions
std::vector< CellID >	mapDccrgIdToFsGridGlobalID (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, CellID dccrgID)
void	feedMomentsIntoFsGrid (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const std::vector< CellID > &cells, fsgrid::FsData< std::array< Real, fsgrids::moments::N_MOMENTS > > &moments, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, bool dt2=false)
void	getFieldsFromFsGrid (fsgrids::constvolspan volumefields, fsgrids::constbgbspan bgb, fsgrids::constegradpespan egradpe, fsgrids::constdmomentsspan dmoments, fsgrids::consttechnicalspan technical, FieldSolverGrid &fsgrid, dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const std::vector< CellID > &cells)
void	getBgFieldsAndDerivativesFromFsGrid (fsgrid::FsData< std::array< Real, fsgrids::bgbfield::N_BGB > > &bgb, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid, dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const std::vector< CellID > &cells)
int	getNumberOfCellsOnMaxRefLvl (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const std::vector< CellID > &cells)
void	feedBoundaryIntoFsGrid (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const std::vector< CellID > &cells, fsgrids::technicalspan technical, FieldSolverGrid &fsgrid)
template<int STENCIL>
void	computeCoupling (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const std::vector< CellID > &cells, fsgrid::FsGrid< STENCIL > &fsgrid, fsgrids::technicalspan technical)

Variables
std::map< int, std::set< CellID > >	onDccrgMapRemoteProcessGlobal
std::map< int, std::set< CellID > >	onFsgridMapRemoteProcessGlobal
std::map< CellID, std::vector< int64_t > >	onFsgridMapCellsGlobal

Enumeration Type Documentation

FieldsToCommunicate

enum FieldsToCommunicate

Enumerator
PERBXVOL
PERBYVOL
PERBZVOL
dPERBXVOLdx
dPERBXVOLdy
dPERBXVOLdz
dPERBYVOLdx
dPERBYVOLdy
dPERBYVOLdz
dPERBZVOLdx
dPERBZVOLdy
dPERBZVOLdz
BGBXVOL
BGBYVOL
BGBZVOL
EXGRADPE
EYGRADPE
EZGRADPE
EXVOL
EYVOL
EZVOL
CURVATUREX
CURVATUREY
CURVATUREZ
dVxdx
dVxdy
dVxdz
dVydx
dVydy
dVydz
dVzdx
dVzdy
dVzdz
N_FIELDSTOCOMMUNICATE

Definition at line 14 of file gridGlue.hpp.

Function Documentation

computeCoupling()

template<int STENCIL>

void computeCoupling	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		const std::vector< CellID > &	cells,
		fsgrid::FsGrid< STENCIL > &	fsgrid,
		fsgrids::technicalspan	technical )

Definition at line 122 of file gridGlue.hpp.

Here is the call graph for this function:

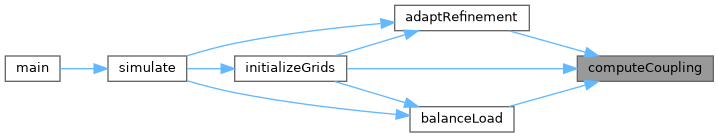

Here is the caller graph for this function:

feedBoundaryIntoFsGrid()

void feedBoundaryIntoFsGrid	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		const std::vector< CellID > &	cells,
		fsgrids::technicalspan	technical,
		FieldSolverGrid &	fsgrid )

feedMomentsIntoFsGrid()

void feedMomentsIntoFsGrid	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		const std::vector< CellID > &	cells,
		fsgrid::FsData< std::array< Real, fsgrids::moments::N_MOMENTS > > &	moments,
		fsgrids::technicalspan	technical,
		FieldSolverGrid &	fsgrid,
		bool	dt2 = false )

Take input moments from DCCRG grid and put them into the Fieldsolver grid

Parameters

mpiGrid	The DCCRG grid carrying rho, rhoV and P
cells	List of local cells
moments	fsgrid for moments quantities
technical	fsgrid with technical parameters
fsgrid	fsgrid container
dt2	Whether to copy base moments, or _DT2 moments

This function assumes that proper grid coupling has been set up.

getBgFieldsAndDerivativesFromFsGrid()

void getBgFieldsAndDerivativesFromFsGrid	(	fsgrid::FsData< std::array< Real, fsgrids::bgbfield::N_BGB > > &	bgb,
		fsgrids::technicalspan	technical,
		FieldSolverGrid &	fsgrid,
		dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		const std::vector< CellID > &	cells )

Copy background B fields and store them into DCCRG

Parameters

bgb	fsgrid for background magnetic field
technical	fsgrid with technical parameters
fsgrid	fsgrids container
mpiGrid	The DCCRG grid
cells	List of local DCCRG cells

This function assumes that proper grid coupling has been set up.

getFieldsFromFsGrid()

void getFieldsFromFsGrid	(	fsgrids::constvolspan	volumefields,
		fsgrids::constbgbspan	bgb,
		fsgrids::constegradpespan	egradpe,
		fsgrids::constdmomentsspan	dmoments,
		fsgrids::consttechnicalspan	technical,
		FieldSolverGrid &	fsgrid,
		dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		const std::vector< CellID > &	cells )

Copy field solver result (VOLB, VOLE, VOLPERB derivatives, gradpe) and store them back into DCCRG

Parameters

volumefields	fsgrid for volume-averaged fields
bgb	fsgrid for background magnetic field
egradpe	fsgrid for grad(Pe) component of electric field
dmoments	fsgrid for moments derivatives
technical	fsgrid with technical parameters
fsgrid	fsgrids container
mpiGrid	The DCCRG grid
cells	List of local DCCRG cells

This function assumes that proper grid coupling has been set up.

getNumberOfCellsOnMaxRefLvl()

int getNumberOfCellsOnMaxRefLvl	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		const std::vector< CellID > &	cells )

mapDccrgIdToFsGridGlobalID()

std::vector< CellID > mapDccrgIdToFsGridGlobalID	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		CellID	dccrgID )

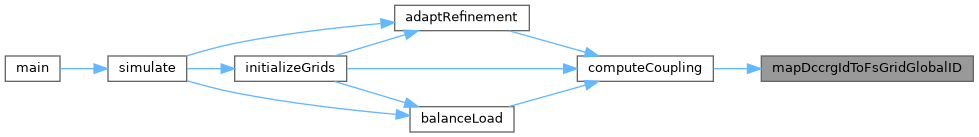

Here is the caller graph for this function:

Variable Documentation

onDccrgMapRemoteProcessGlobal

std::map<int, std::set<CellID> > onDccrgMapRemoteProcessGlobal

extern

Definition at line 11 of file gridGlue.cpp.

onFsgridMapCellsGlobal

std::map<CellID, std::vector<int64_t> > onFsgridMapCellsGlobal

extern

Definition at line 13 of file gridGlue.cpp.

onFsgridMapRemoteProcessGlobal

std::map<int, std::set<CellID> > onFsgridMapRemoteProcessGlobal

extern

Definition at line 12 of file gridGlue.cpp.
