DRO::VariableNonMaxwellianity Class Reference

#include <datareductionoperator.h>

Inheritance diagram for DRO::VariableNonMaxwellianity:

Collaboration diagram for DRO::VariableNonMaxwellianity:

Public Member Functions
	VariableNonMaxwellianity (cuint popID)
	Non-Maxwellianity Calculates for a population the dimensionless parameter defined by Graham et al. (2021) as epsilon_M = integral[abs(f-g)]dv3 / 2n where f: measured VDF for a population g: a model bi-Maxwellian with the same number density, bulk speed and temperature as the measured VDF n: population number density.
virtual	~VariableNonMaxwellianity ()
virtual bool	getDataVectorInfo (std::string &dataType, unsigned int &dataSize, unsigned int &vectorSize) const
virtual std::string	getName () const
virtual bool	reduceData (const SpatialCell *cell, char *buffer)
virtual bool	setSpatialCell (const SpatialCell *cell)
Public Member Functions inherited from DRO::DataReductionOperator
	DataReductionOperator ()
virtual	~DataReductionOperator ()
virtual bool	getUnitMetadata (std::string &_unit, std::string &_unitLaTeX, std::string &_variableLaTeX, std::string &_unitConversion)
virtual bool	setUnitMetadata (std::string &_unit, std::string &_unitLaTeX, std::string &_variableLaTeX, std::string &_unitConversion)
virtual bool	reduceDiagnostic (const SpatialCell *cell, Real *result)

Protected Attributes
Real	rho
Real	V0 [3]
Real	b_par [3]
Real	b_perp1 [3]
Real	b_perp2 [3]
Real	T_par
Real	T_perp
Real	epsilon
uint	popID
std::string	popName
Protected Attributes inherited from DRO::DataReductionOperator
std::string	unit
std::string	unitLaTeX
std::string	variableLaTeX
std::string	unitConversion

Detailed Description

Definition at line 654 of file datareductionoperator.h.

Constructor & Destructor Documentation

VariableNonMaxwellianity()

DRO::VariableNonMaxwellianity::VariableNonMaxwellianity

(

cuint

_popID

)

Non-Maxwellianity Calculates for a population the dimensionless parameter defined by Graham et al. (2021) as epsilon_M = integral[abs(f-g)]dv3 / 2n where f: measured VDF for a population g: a model bi-Maxwellian with the same number density, bulk speed and temperature as the measured VDF n: population number density.

No extra parameters need to be set in cfg file. Note that the definition is different from the original parameter introduced by Greco et al. (2012). The following formulation of epsilon_M is used here to calculate the value with only velocity cells where the VDF is saved:

Assuming regions of velocity space A and B, where f>0 in A, and f=0 in B: epsilon_M = (integral_A[abs(f-g)]dv3 + integral_B[g]dv3) / 2n = (integral_A[abs(f-g)]dv3 + n - integral_A[g]dv3) / 2n = integral_A[abs(f-g) - g]dv3 / 2n + 1/2

Definition at line 1914 of file datareductionoperator.cpp.

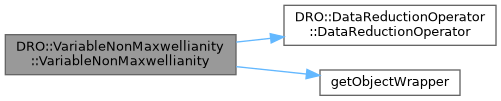

Here is the call graph for this function:

~VariableNonMaxwellianity()

DRO::VariableNonMaxwellianity::~VariableNonMaxwellianity ( )

virtual

Definition at line 1917 of file datareductionoperator.cpp.

Member Function Documentation

getDataVectorInfo()

bool DRO::VariableNonMaxwellianity::getDataVectorInfo ( std::string & dataType, unsigned int & dataSize, unsigned int & vectorSize ) const

virtual

Implements DRO::DataReductionOperator.

Definition at line 1921 of file datareductionoperator.cpp.

getName()

std::string DRO::VariableNonMaxwellianity::getName ( ) const

virtual

Implements DRO::DataReductionOperator.

Definition at line 1919 of file datareductionoperator.cpp.

reduceData()

bool DRO::VariableNonMaxwellianity::reduceData ( const SpatialCell * cell, char * buffer )

virtual

Reduce the data and write the data vector to the given vlsv output buffer.

Parameters

cell	the SpatialCell to reduce data out of
buffer	Buffer in which the reduced data is written.

Returns

If true, DataReductionOperator reduced data successfully.

Reimplemented from DRO::DataReductionOperator.

Definition at line 1929 of file datareductionoperator.cpp.

Here is the call graph for this function:

setSpatialCell()

bool DRO::VariableNonMaxwellianity::setSpatialCell ( const SpatialCell * cell )

virtual

Implements DRO::DataReductionOperator.

Definition at line 1999 of file datareductionoperator.cpp.

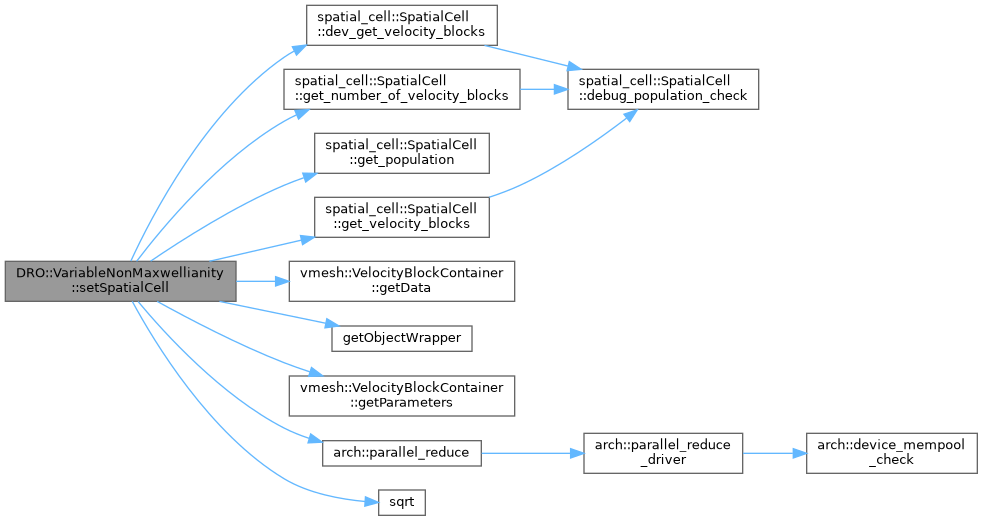

Here is the call graph for this function:

Member Data Documentation

b_par

Real DRO::VariableNonMaxwellianity::b_par[3]

protected

Definition at line 667 of file datareductionoperator.h.

b_perp1

Real DRO::VariableNonMaxwellianity::b_perp1[3]

protected

Definition at line 668 of file datareductionoperator.h.

b_perp2

Real DRO::VariableNonMaxwellianity::b_perp2[3]

protected

Definition at line 669 of file datareductionoperator.h.

epsilon

Real DRO::VariableNonMaxwellianity::epsilon

protected

Definition at line 672 of file datareductionoperator.h.

popID

uint DRO::VariableNonMaxwellianity::popID

protected

Definition at line 673 of file datareductionoperator.h.

popName

std::string DRO::VariableNonMaxwellianity::popName

protected

Definition at line 674 of file datareductionoperator.h.

rho

Real DRO::VariableNonMaxwellianity::rho

protected

Definition at line 665 of file datareductionoperator.h.

T_par

Real DRO::VariableNonMaxwellianity::T_par

protected

Definition at line 670 of file datareductionoperator.h.

T_perp

Real DRO::VariableNonMaxwellianity::T_perp

protected

Definition at line 671 of file datareductionoperator.h.

V0

Real DRO::VariableNonMaxwellianity::V0[3]

protected

Definition at line 666 of file datareductionoperator.h.

---

The documentation for this class was generated from the following files:

• datareduction/datareductionoperator.h
• datareduction/datareductionoperator.cpp
