cpu_acc_intersections.cpp File Reference

#include <algorithm>
#include <cmath>
#include <utility>
#include <Eigen/Geometry>
#include "../common.h"
#include "cpu_acc_intersections.hpp"
#include "cpu_acc_transform.hpp"

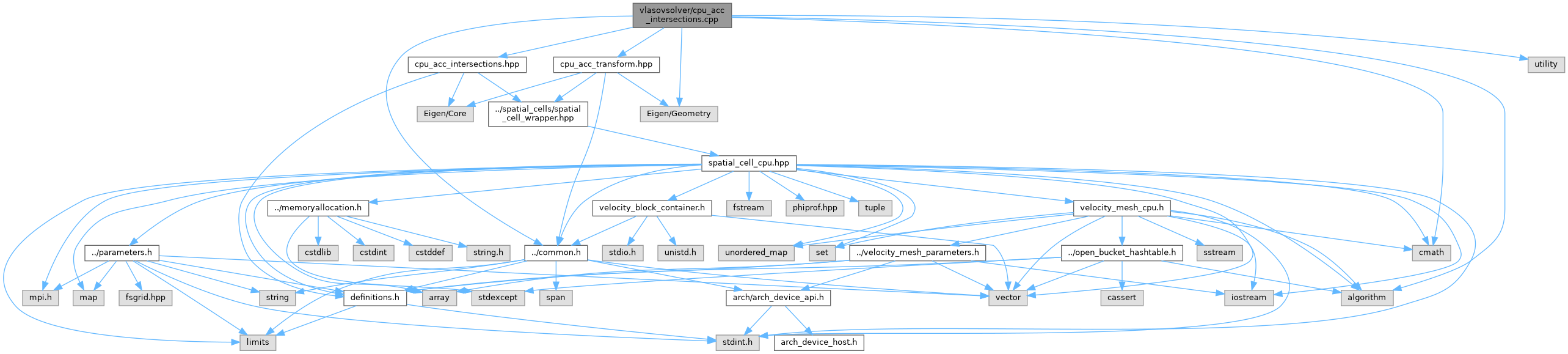

Include dependency graph for cpu_acc_intersections.cpp:

Go to the source code of this file.

Functions
void	compute_cell_intersections (spatial_cell::SpatialCell *spatial_cell, const uint popID, const uint map_order, const Real &dt, int intersections_id)
Eigen::Matrix< Real, 3, 1 >	line_plane_intersection (const Eigen::Matrix< Real, 3, 1 > &l_point, const Eigen::Matrix< Real, 3, 1 > &l_direction, const Eigen::Matrix< Real, 3, 1 > &p_point, const Eigen::Matrix< Real, 3, 1 > &p_normal)
void	compute_intersections_1st (const vmesh::VelocityMesh *vmesh, const Transform< Real, 3, Affine > &bwd_transform, const Transform< Real, 3, Affine > &fwd_transform, const uint dimension, Real &intersection, Real &intersection_di, Real &intersection_dj, Real &intersection_dk)
void	compute_intersections_2nd (const vmesh::VelocityMesh *vmesh, const Transform< Real, 3, Affine > &bwd_transform, const Transform< Real, 3, Affine > &fwd_transform, const uint dimension, Real &intersection, Real &intersection_di, Real &intersection_dj, Real &intersection_dk)
void	compute_intersections_3rd (const vmesh::VelocityMesh *vmesh, const Transform< Real, 3, Affine > &bwd_transform, const Transform< Real, 3, Affine > &fwd_transform, const uint dimension, Real &intersection, Real &intersection_di, Real &intersection_dj, Real &intersection_dk)

Function Documentation

compute_cell_intersections()

void compute_cell_intersections	(	spatial_cell::SpatialCell *	spatial_cell,
		const uint	popID,
		const uint	map_order,
		const Real &	dt,
		int	intersections_id )

Wrapper for computing all rotation intersections for a single cycle of acceleration for a given spatial cell

Parameters

spatial_cell	Spatial cell to compute
popID	Active population
map_order	order in which to perform Cartesian shears, randomized from time step
dt	Length of current time step or substep
intersections_id	Phiprof identifier for timer inside parallel region

Definition at line 44 of file cpu_acc_intersections.cpp.

Here is the call graph for this function:

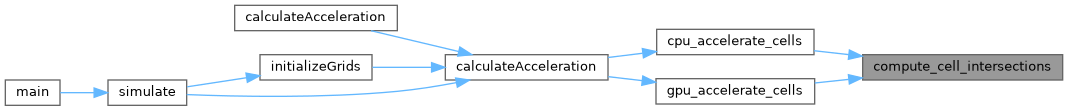

Here is the caller graph for this function:

compute_intersections_1st()

void compute_intersections_1st	(	const vmesh::VelocityMesh *	vmesh,
		const Transform< Real, 3, Affine > &	bwd_transform,
		const Transform< Real, 3, Affine > &	fwd_transform,
		const uint	dimension,
		Real &	intersection,
		Real &	intersection_di,
		Real &	intersection_dj,
		Real &	intersection_dk )

Computes the first intersection data; this is z~ in section 2.4 in Zerroukat et al (2012). We assume all velocity cells have the same dimensions. Intersection z coordinate for (i,j,k) is: intersection + i * intersection_di + j * intersection_dj + k * intersection_dk

Parameters

spatial_cell	spatial cell that is accelerated
fwd_transform	Transform that describes acceleration forward in time
bwd_transform	Transform that describes acceleration backward in time, used to compute the lagrangian departure gri
dimension	Along which dimension is this intersection/mapping computation done. It is assumed the three mappings are in order 012, 120 or 201
intersection	Intersection z coordinate at i,j,k=0
intersection_di	Change in z-coordinate for a change in i index of 1
intersection_dj	Change in z-coordinate for a change in j index of 1
intersection_dk	Change in z-coordinate for a change in k index of 1

Definition at line 132 of file cpu_acc_intersections.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

compute_intersections_2nd()

void compute_intersections_2nd	(	const vmesh::VelocityMesh *	vmesh,
		const Transform< Real, 3, Affine > &	bwd_transform,
		const Transform< Real, 3, Affine > &	fwd_transform,
		const uint	dimension,
		Real &	intersection,
		Real &	intersection_di,
		Real &	intersection_dj,
		Real &	intersection_dk )

Computes the second intersection data; this is x~ in section 2.4 in Zerroukat et al (2012). We assume all velocity cells have the same dimensions. Intersection x coordinate for (i,j,k) is: intersection + i * intersection_di + j * intersection_dj + k * intersection_dk

Parameters

spatial_cell	spatial cell that is accelerated
fwd_transform	Transform that describes acceleration forward in time
bwd_transform	Transform that describes acceleration backward in time, used to compute the lagrangian departure grid
dimension	Along which dimension is this intersection/mapping computation done. It is assumed the three mappings are in order 012, 120 or 201
intersection	Intersection x-coordinate at i,j,k=0
intersection_di	Change in x-coordinate for a change in i index of 1
intersection_dj	Change in x-coordinate for a change in j index of 1
intersection_dk	Change in x-coordinate for a change in k index of 1

Definition at line 246 of file cpu_acc_intersections.cpp.

Here is the call graph for this function:

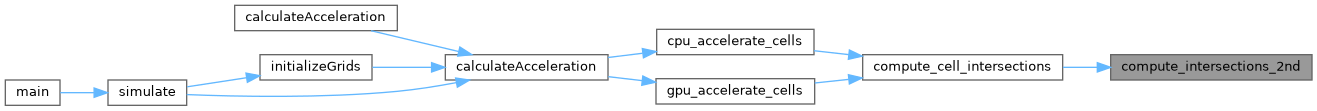

Here is the caller graph for this function:

compute_intersections_3rd()

void compute_intersections_3rd	(	const vmesh::VelocityMesh *	vmesh,
		const Transform< Real, 3, Affine > &	bwd_transform,
		const Transform< Real, 3, Affine > &	fwd_transform,
		const uint	dimension,
		Real &	intersection,
		Real &	intersection_di,
		Real &	intersection_dj,
		Real &	intersection_dk )

Computes the third intersection data; this is y intersections in Zerroukat et al (2012). We assume all velocity cells have the same dimensions. Intersection y-coordinate for (i,j,k) is: intersection + i * intersection_di + j * intersection_dj + k * intersection_dk

Parameters

spatial_cell	spatial cell that is accelerated
fwd_transform	Transform that describes acceleration forward in time
bwd_transform	Transform that describes acceleration backward in time, used to compute the lagrangian departure grid
dimension	Along which dimension is this intersection/mapping computation done. It is assumed the three mappings are in order 012, 120 or 201
intersection	Intersection y-coordinate at i,j,k=0
intersection_di	Change in y-coordinate for a change in i index of 1
intersection_dj	Change in y-coordinate for a change in j index of 1
intersection_dk	Change in y-coordinate for a change in k index of 1

euclidian y goes from vy_min to vy_max, this is mapped to wherever y plane is in lagrangian.

Definition at line 376 of file cpu_acc_intersections.cpp.

Here is the caller graph for this function:

line_plane_intersection()

Eigen::Matrix< Real, 3, 1 > line_plane_intersection	(	const Eigen::Matrix< Real, 3, 1 > &	l_point,
		const Eigen::Matrix< Real, 3, 1 > &	l_direction,
		const Eigen::Matrix< Real, 3, 1 > &	p_point,
		const Eigen::Matrix< Real, 3, 1 > &	p_normal )

Computes the intersection point of a plane and a line

Parameters

l_point	Point on the line
l_direction	Vector in the direction of the line
p_point	Point on plane
p_normal	Normal vector to plane
intersection	The function will set this to the intersection point.

Definition at line 112 of file cpu_acc_intersections.cpp.

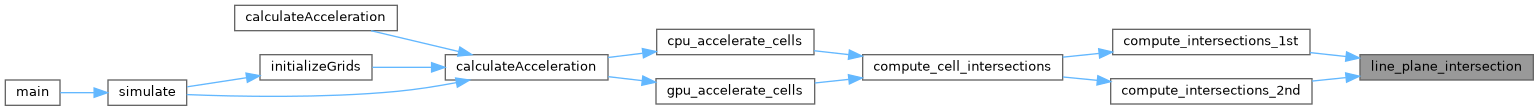

Here is the caller graph for this function:
