arch_moments.h File Reference

#include <vector>
#include <limits>
#include <dccrg.hpp>
#include <dccrg_cartesian_geometry.hpp>
#include "../definitions.h"
#include "../common.h"
#include "../spatial_cells/spatial_cell_wrapper.hpp"

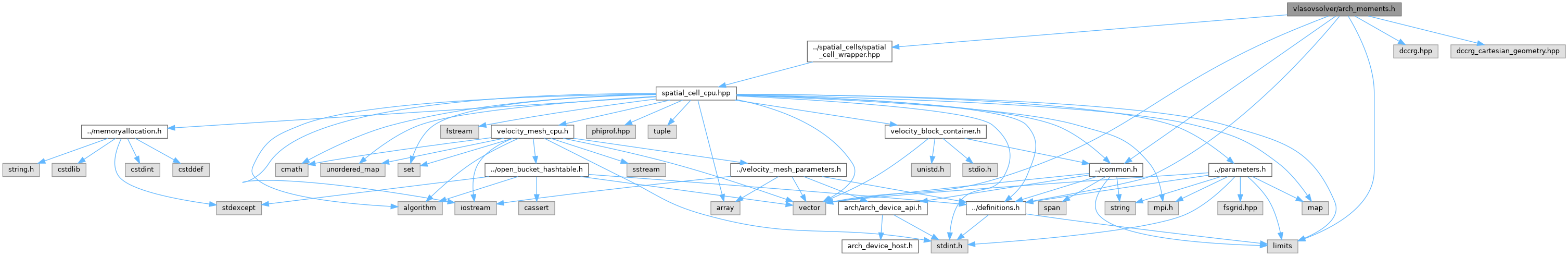

Include dependency graph for arch_moments.h:

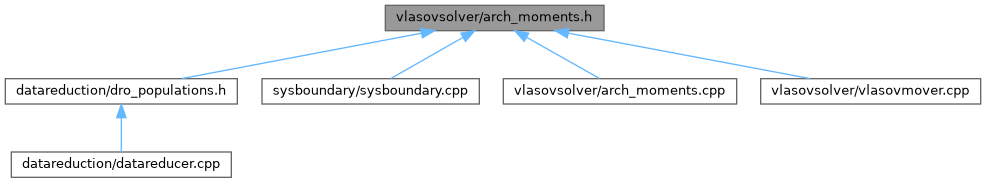

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	nMom1   4
#define	nMom2   6

Functions
template<typename REAL, uint SIZE>
void	blockVelocityFirstMoments (vmesh::VelocityBlockContainer *blockContainer, REAL(&array)[SIZE], uint nBlocks)
template<typename REAL, uint SIZE>
void	blockVelocitySecondMoments (vmesh::VelocityBlockContainer *blockContainer, const REAL averageVX, const REAL averageVY, const REAL averageVZ, REAL(&array)[SIZE], uint nBlocks)
void	calculateMoments_R (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const std::vector< CellID > &cells, const bool &computeSecond, const bool initialCompute=false)
void	calculateMoments_V (dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &mpiGrid, const std::vector< CellID > &cells, const bool &computeSecond, const bool initialCompute=false)

Macro Definition Documentation

nMom1

#define nMom1   4

Definition at line 37 of file arch_moments.h.

nMom2

#define nMom2   6

Definition at line 38 of file arch_moments.h.

Function Documentation

blockVelocityFirstMoments()

template<typename REAL, uint SIZE>

void blockVelocityFirstMoments ( vmesh::VelocityBlockContainer * blockContainer, REAL(&) array[SIZE], uint nBlocks )

inline

Calculate the zeroth and first velocity moments for the given velocity block and add results to 'array', which must have at least size four. After this function returns, the contents of 'array' are as follows: array[0]=n; array[1]=n*Vx; array[2]=nVy; array[3]=nVz; Here n is the scaled number density, i.e., number density times population mass / proton mass. This function is AMR safe.

Parameters

data	Distribution functions
blockParameters	Parameters for the velocity blocks
array	Array where the calculated moments are added
nBlocks	The number of blocks

Definition at line 83 of file arch_moments.h.

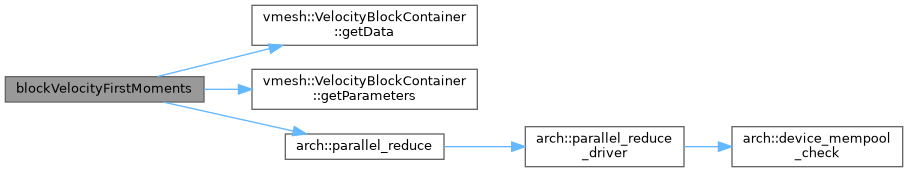

Here is the call graph for this function:

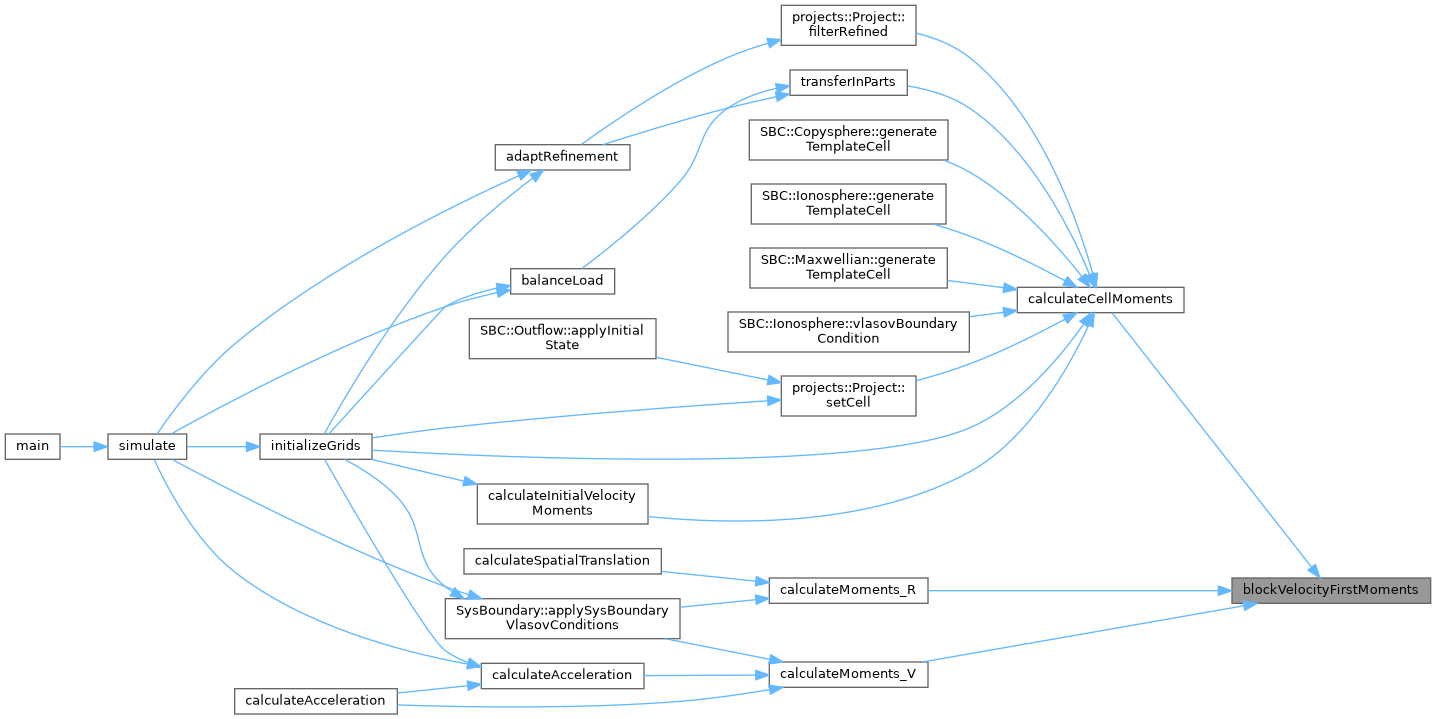

Here is the caller graph for this function:

blockVelocitySecondMoments()

template<typename REAL, uint SIZE>

void blockVelocitySecondMoments ( vmesh::VelocityBlockContainer * blockContainer, const REAL averageVX, const REAL averageVY, const REAL averageVZ, REAL(&) array[SIZE], uint nBlocks )

inline

Calculate the second velocity moments for the velocity blocks, and add results to 'array', which must have at least size three. After this function returns, the contents of 'array' are as follows: array[0]=n(Vx-Vx0); array[1]=n(Vy-Vy0); array[2]=n(Vz-Vz0); Here Vx0,Vy0,Vz0 are the components of the bulk velocity (calculated over all species). This function is AMR safe.

Parameters

data	Distribution functions
blockParameters	Parameters for the velocity blocks
averageVX	Bulk velocity x
averageVY	Bulk velocity y
averageVZ	Bulk velocity z
array	Array where the calculated moments are added
nBlocks	The number of blocks

Definition at line 123 of file arch_moments.h.

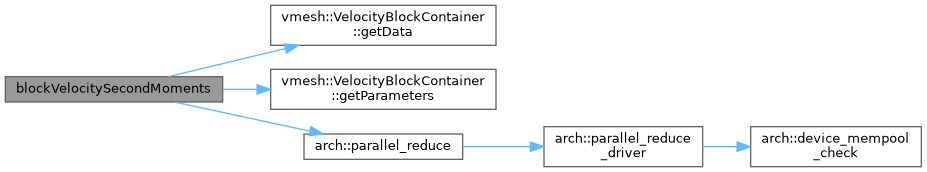

Here is the call graph for this function:

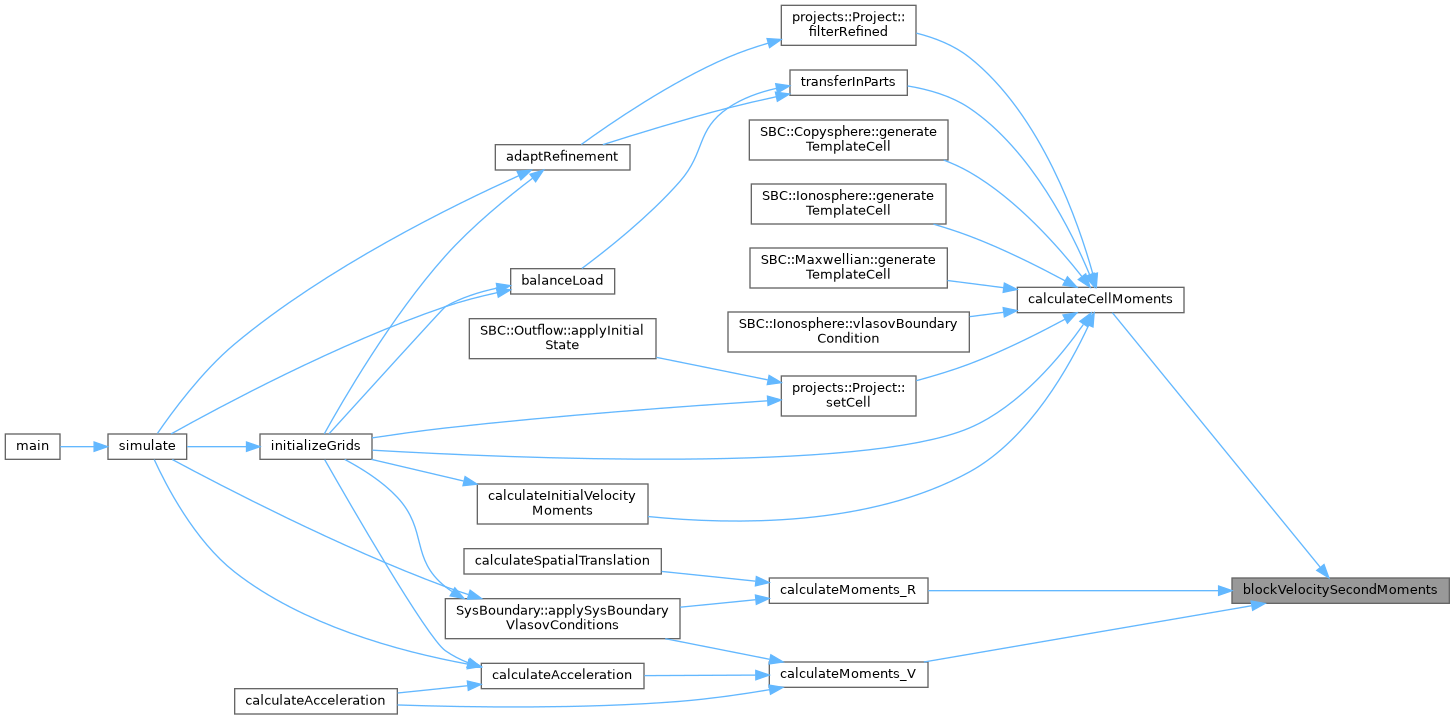

Here is the caller graph for this function:

calculateMoments_R()

void calculateMoments_R	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		const std::vector< CellID > &	cells,
		const bool &	computeSecond,
		const bool	initialCompute )

Calculate zeroth, first, and (possibly) second bulk velocity moments for the given spatial cell. The calculated moments include contributions from all existing particle populations. The calculated moments are stored to SpatialCell::parameters in _R variables.

Parameters

mpiGrid	Parallel grid library.
cells	Vector containing the spatial cells to be calculated.
computeSecond	If true, second velocity moments are calculated.
initialCompute	If true, force re-calculation of outflow L1 sysboundary cell moments. (otherwise skipped as their VDF contents are not kept up to date)

Definition at line 178 of file arch_moments.cpp.

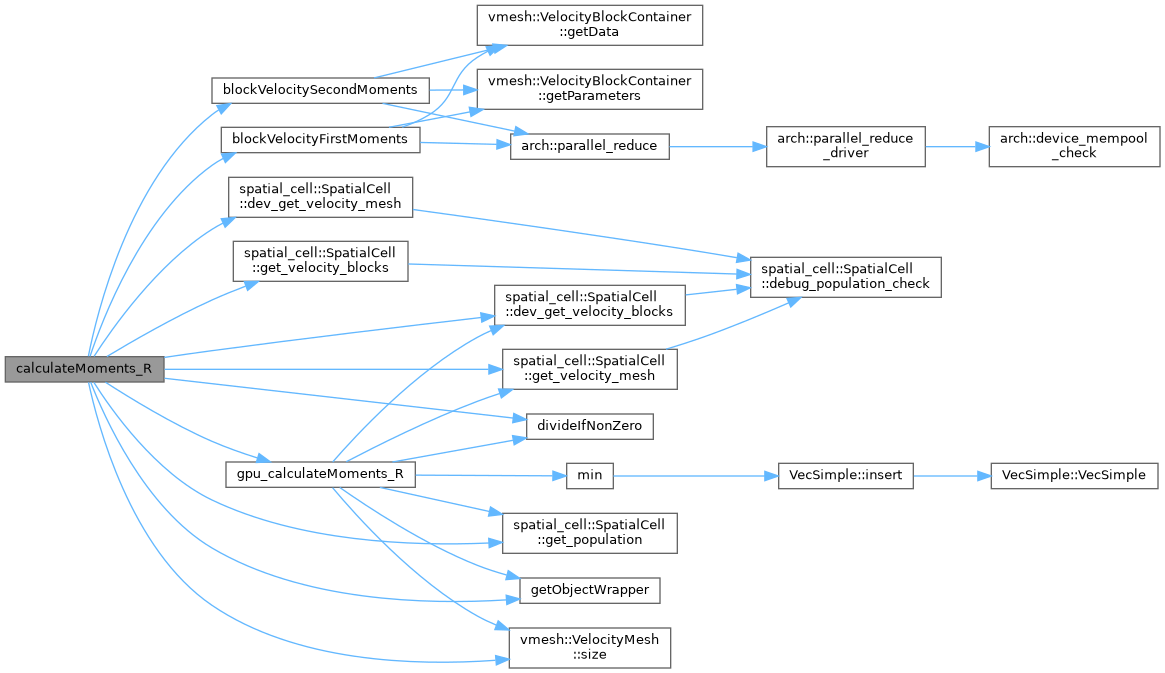

Here is the call graph for this function:

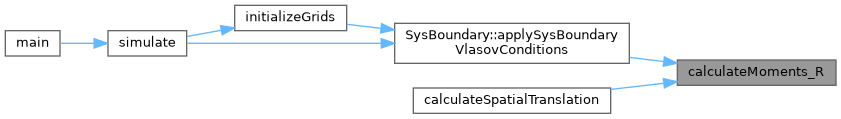

Here is the caller graph for this function:

calculateMoments_V()

void calculateMoments_V	(	dccrg::Dccrg< SpatialCell, dccrg::Cartesian_Geometry > &	mpiGrid,
		const std::vector< CellID > &	cells,
		const bool &	computeSecond,
		const bool	initialCompute )

Calculate zeroth, first, and (possibly) second bulk velocity moments for the given spatial cell. Additionally, for each species, calculate the maximum spatial time step so that CFL(spatial)=1. The calculated moments include contributions from all existing particle populations. The calculated moments are stored to SpatialCell::parameters in _V variables.

Parameters

mpiGrid	Parallel grid library.
cells	Vector containing the spatial cells to be calculated.
computeSecond	If true, second velocity moments are calculated.
initialCompute	If true, force re-calculation of outflow L1 sysboundary cell moments. (otherwise skipped as their VDF contents are not kept up to date)

Definition at line 342 of file arch_moments.cpp.

Here is the call graph for this function:

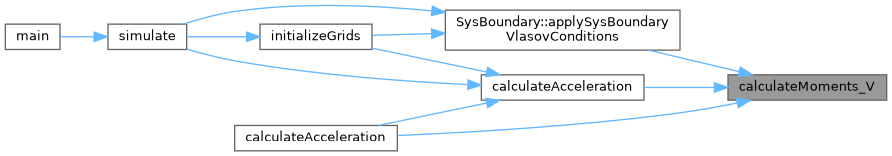

Here is the caller graph for this function:
