File containing write IO for vlasiator. More info at: https://agora.fmi.fi/display/CORSAIR/VLSV+File+Format. More...

#include <algorithm>
#include <cmath>
#include <cstdlib>
#include <cstring>
#include <dirent.h>
#include <exception>
#include <iomanip>
#include <iostream>
#include <limits>
#include <list>
#include <set>
#include <sstream>
#include <stdint.h>
#include <string>
#include <typeinfo>
#include "../definitions.h"
#include "vlsvreaderinterface.h"
#include <vlsv_reader.h>
#include <vlsv_writer.h>
#include <fsgrid.hpp>

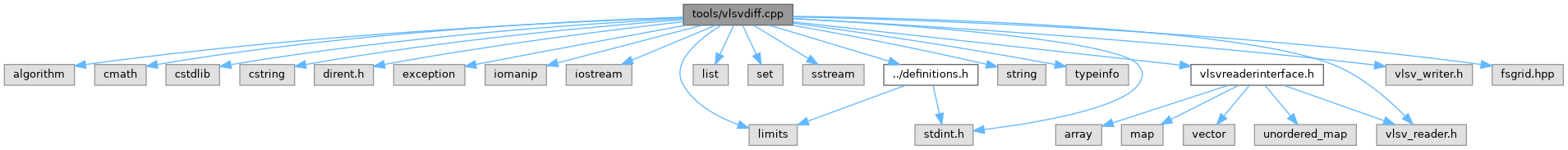

Include dependency graph for vlsvdiff.cpp:

Go to the source code of this file.

Enumerations
enum	GridType { SPATIALGRID , FSGRID , IONOSPHERE }

Functions
static uint64_t	convUInt (const char *ptr, const vlsv::datatype::type &dataType, const uint64_t &dataSize)
bool	copyArray (vlsv::Reader &input, vlsv::Writer &output, const std::string &tagName, const list< pair< string, string > > &inputAttribs, bool optional=false)
bool	HandleFsGrid (const string &inputFileName, vlsv::Writer &output, std::map< uint, Real > orderedData)
bool	getFsgridDecomposition (vlsvinterface::Reader &file, std::array< int, 3 > &decomposition)
bool	cloneMesh (const string &inputFileName, vlsv::Writer &output, const string &meshName, std::map< uint, Real > orderedData)
bool	convertMesh (vlsvinterface::Reader &vlsvReader, const string &meshName, const char varToExtract, const uint compToExtract, map< uint, Real > orderedData, unordered_map< size_t, size_t > &cellOrder, const bool &storeCellOrder)
template<class T>
bool	convertSILO (const string fileName, const char varToExtract, const uint compToExtract, map< uint, Real > orderedData, unordered_map< size_t, size_t > &cellOrder, Real &time, const bool &storeCellOrder=false)
bool	shiftAverage (const map< uint, Real > const orderedData1, const map< uint, Real > const orderedData2, map< uint, Real > *shiftedData2)
bool	pDistance (const map< uint, Real > &orderedData1, const map< uint, Real > &orderedData2, creal p, Real absolute, Real relative, const bool doShiftAverage, const unordered_map< size_t, size_t > &cellOrder, vlsv::Writer &outputFile, const std::string &meshName, const std::string &varName)
bool	outputDistance (const Real p, const Real absolute, const Real relative, const bool shiftedAverage, const bool verboseOutput, const bool lastCall)
bool	outputDt (const Real dt, const bool verboseOutput, const bool lastCall)
bool	singleStatistics (map< uint, Real > orderedData, Real size, Real mini, Real maxi, Real avg, Real stdev)
bool	outputStats (const Real size, const Real mini, const Real maxi, const Real avg, const Real *stdev, const bool verboseOutput, const bool lastCall)
bool	printNonVerboseData ()
bool	getBlockIds (vlsvinterface::Reader &vlsvReader, const unordered_map< uint64_t, pair< uint64_t, uint32_t > > &cellsWithBlocksLocations, const uint64_t &cellId, vector< uint32_t > &blockIds)
uint32_t	getBlockId (const double vx, const double vy, const double vz, const double dvx, const double dvy, const double dvz, const double vx_min, const double vy_min, const double vz_min, const double vx_length, const double vy_length, const double vz_length)
template<class T>
bool	readAvgs (T &vlsvReader, string name, const unordered_map< uint64_t, pair< uint64_t, uint32_t > > &cellsWithBlocksLocations, const uint64_t &cellId, unordered_map< uint32_t, vector< double > > &avgs, uint64_t &vectorSize)
template<class T>
bool	getCellsWithBlocksLocations (T &vlsvReader, unordered_map< uint64_t, pair< uint64_t, uint32_t > > &cellsWithBlocksLocations)
template<class T, class U>
bool	compareAvgs (const string fileName1, const string fileName2, const bool verboseOutput, vector< uint64_t > &cellIds1, vector< uint64_t > &cellIds2)
bool	process2Files (const string fileName1, const string fileName2, const char *varToExtract, const uint compToExtract, const bool verboseOutput, const uint compToExtract2=0)
bool	processDirectory (DIR dir, set< string > fileList)
void	printHelp (const map< string, string > &defAttribs, const map< string, string > &descriptions)
int	main (int argn, char *args[])

Variables
static map< string, string >	attributes
static int	gridName

Detailed Description

File containing write IO for vlasiator. More info at: https://agora.fmi.fi/display/CORSAIR/VLSV+File+Format.

Tool to compare VLSV files.

Tool to compare two VLSV files, two folders with the same number of VLSV files or a folder to a reference file. The tool assumes the files have a name syntax 'grid.[0-9]+.vlsv'. It takes four arguments.

Calling patterns are:

"$ vlsvdiff <file1> <file2> <Variable> <component>": Gives single-file statistics and distances between the two files given, for the variable and component given

"$ vlsvdiff --diff --meshname=<Meshname> <file1> <file2> <Variable> <component>": Gives single-file statistics and distances between the two files given, for the variable and component given

"$ vlsvdiff <folder1> <folder2> <Variable> <component>": Gives single-file statistics and distances between pairs of files grid*.vlsv taken in alphanumeric order in the two folders given, for the variable and component given

"$ vlsvdiff <file1> <folder2> <Variable> <component>" or "$ vlsvdiff <folder1> <file2> <Variable> <component>": Gives single-file statistics and distances between a file, and files grid*.vlsv taken in alphanumeric order in the given folder, for the variable and component given

Definition in file vlsvdiff.cpp.

Enumeration Type Documentation

◆ GridType

enum GridType

Enumerator
SPATIALGRID
FSGRID
IONOSPHERE

Definition at line 75 of file vlsvdiff.cpp.

Function Documentation

◆ cloneMesh()

bool cloneMesh	(	const string &	inputFileName,
		vlsv::Writer &	output,
		const string &	meshName,
		std::map< uint, Real >	orderedData )

Copy the spatial mesh from input to output.

Parameters

inputFileName	Name of the input file where the mesh is copied from.
output	VLSV reader for the file where the cloned mesh is written.
meshName	Name of the mesh.

Returns: If true, the mesh was successfully cloned.

Definition at line 383 of file vlsvdiff.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ compareAvgs()

template<class T, class U>

bool compareAvgs	(	const string	fileName1,
		const string	fileName2,
		const bool	verboseOutput,
		vector< uint64_t > &	cellIds1,
		vector< uint64_t > &	cellIds2 )

Definition at line 1317 of file vlsvdiff.cpp.

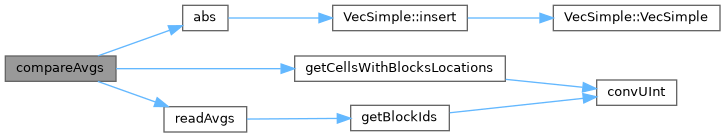

Here is the call graph for this function:

Here is the caller graph for this function:

◆ convertMesh()

bool convertMesh	(	vlsvinterface::Reader &	vlsvReader,
		const string &	meshName,
		const char *	varToExtract,
		const uint	compToExtract,
		map< uint, Real > *	orderedData,
		unordered_map< size_t, size_t > &	cellOrder,
		const bool &	storeCellOrder )

Extracts the dataset from the VLSV file opened by convertSILO.

Parameters

vlsvReader	vlsvinterface::Reader class object used to access the VLSV file
meshName	Address of the string containing the name of the mesh to be extracted
varToExtract	Pointer to the char array containing the name of the variable to extract
compToExtract	Unsigned int designating the component to extract (0 for scalars)
orderedData	Pointer to the return argument map which will get the extracted dataset

Definition at line 433 of file vlsvdiff.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ convertSILO()

template<class T>

bool convertSILO	(	const string	fileName,
		const char *	varToExtract,
		const uint	compToExtract,
		map< uint, Real > *	orderedData,
		unordered_map< size_t, size_t > &	cellOrder,
		Real &	time,
		const bool &	storeCellOrder = false )

Opens the VLSV file and extracts the mesh names. Sends for processing to convertMesh.

Parameters

fileName	String containing the name of the file to be processed
varToExtract	Pointer to the char array containing the name of the variable to extract
compToExtract	Unsigned int designating the component to extract (0 for scalars)
orderedData	Pointer to the return argument map which will get the extracted dataset

See also: convertMesh

Definition at line 714 of file vlsvdiff.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ convUInt()

uint64_t convUInt	(	const char *	ptr,
		const vlsv::datatype::type &	dataType,
		const uint64_t &	dataSize )

static

Definition at line 81 of file vlsvdiff.cpp.

Here is the caller graph for this function:

◆ copyArray()

bool copyArray	(	vlsv::Reader &	input,
		vlsv::Writer &	output,
		const std::string &	tagName,
		const list< pair< string, string > > &	inputAttribs,
		bool	optional = false )

Read given array data from input file, and byte-copy it to the output file.

Parameters

input	Input file reader.
output	Output file reader.
tagName	Name of the copied array.
inputAttributes	XML attributes for the copied array.
optional	If true, this parameter is OK to be missing.

Returns: If true, the array was copied successfully.

Definition at line 111 of file vlsvdiff.cpp.

Here is the caller graph for this function:

◆ getBlockId()

uint32_t getBlockId	(	const double	vx,
		const double	vy,
		const double	vz,
		const double	dvx,
		const double	dvy,
		const double	dvz,
		const double	vx_min,
		const double	vy_min,
		const double	vz_min,
		const double	vx_length,
		const double	vy_length,
		const double	vz_length )

Definition at line 1136 of file vlsvdiff.cpp.

Here is the call graph for this function:

◆ getBlockIds()

bool getBlockIds	(	vlsvinterface::Reader &	vlsvReader,
		const unordered_map< uint64_t, pair< uint64_t, uint32_t > > &	cellsWithBlocksLocations,
		const uint64_t &	cellId,
		vector< uint32_t > &	blockIds )

Definition at line 1085 of file vlsvdiff.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getCellsWithBlocksLocations()

template<class T>

bool getCellsWithBlocksLocations	(	T &	vlsvReader,
		unordered_map< uint64_t, pair< uint64_t, uint32_t > > &	cellsWithBlocksLocations )

Definition at line 1236 of file vlsvdiff.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getFsgridDecomposition()

bool getFsgridDecomposition	(	vlsvinterface::Reader &	file,
		std::array< int, 3 > &	decomposition )

Definition at line 295 of file vlsvdiff.cpp.

Here is the caller graph for this function:

◆ HandleFsGrid()

bool HandleFsGrid	(	const string &	inputFileName,
		vlsv::Writer &	output,
		std::map< uint, Real >	orderedData )

Definition at line 170 of file vlsvdiff.cpp.

Here is the caller graph for this function:

◆ main()

int main	(	int	argn,
		char *	args[] )

Main function, detects which calling pattern is used and sends to the corresponding processing functions.

See also: process2Files processDirectory

Definition at line 1783 of file vlsvdiff.cpp.

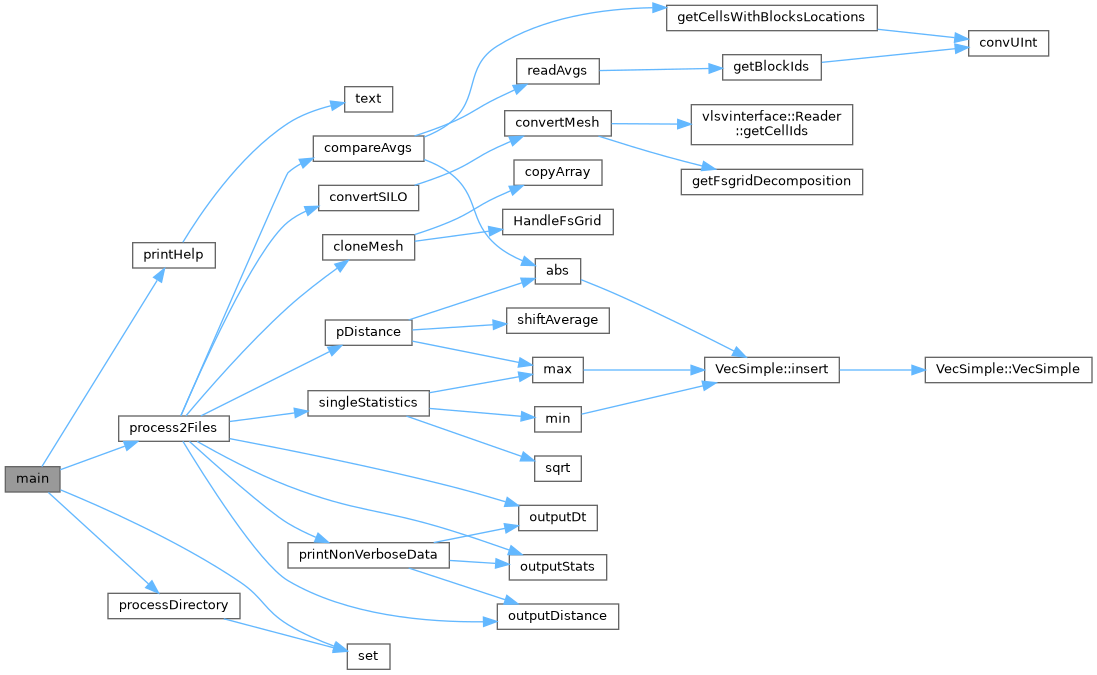

Here is the call graph for this function:

◆ outputDistance()

bool outputDistance	(	const Real	p,
		const Real *	absolute,
		const Real *	relative,
		const bool	shiftedAverage,
		const bool	verboseOutput,
		const bool	lastCall )

In verbose mode print the distance, in non-verbose store them for later output when lastCall is true

Parameters

p	Parameter of the distance
absolute	Absolute value pointer
relative	Relative value pointer
shiftedAverage	Boolean parameter telling whether the dataset is average-shifted
verboseOutput	Boolean parameter telling whether the output is verbose or compact
lastCall	Boolean parameter telling whether this is the last call to the function

See also: shiftAverage pDistance

Definition at line 913 of file vlsvdiff.cpp.

Here is the caller graph for this function:

◆ outputDt()

bool outputDt	(	const Real	dt,
		const bool	verboseOutput,
		const bool	lastCall )

In verbose mode print delta t, in non-verbose store them for later output when lastCall is true

Parameters

dt	delta t
verboseOutput	Boolean parameter telling whether the output is verbose or compact
lastCall	Boolean parameter telling whether this is the last call to the function

Definition at line 947 of file vlsvdiff.cpp.

Here is the caller graph for this function:

◆ outputStats()

bool outputStats	(	const Real *	size,
		const Real *	mini,
		const Real *	maxi,
		const Real *	avg,
		const Real *	stdev,
		const bool	verboseOutput,
		const bool	lastCall )

In verbose mode print the statistics, in non-verbose store them for later output when lastCall is true

Parameters

size	Pointer to dataset size
mini	Pointer to dataset minimum
maxi	Pointer to dataset maximum
avg	Pointer to dataset average
stdev	Pointer to dataset standard deviation
verboseOutput	Boolean parameter telling whether the output is verbose or compact
lastCall	Boolean parameter telling whether this is the last call to the function

See also: singleStatistics

Definition at line 1011 of file vlsvdiff.cpp.

Here is the caller graph for this function:

◆ pDistance()

bool pDistance	(	const map< uint, Real > &	orderedData1,
		const map< uint, Real > &	orderedData2,
		creal	p,
		Real *	absolute,
		Real *	relative,
		const bool	doShiftAverage,
		const unordered_map< size_t, size_t > &	cellOrder,
		vlsv::Writer &	outputFile,
		const std::string &	meshName,
		const std::string &	varName )

Compute the absolute and relative $ p $ -distance between two datasets X(x) provided in the maps orderedData1 and orderedData2. Note that the dataset passed in orderedData1 will be taken as the reference dataset both when shifting averages and when computing relative distances.

For $p \neq 0$ :

absolute $ p $ -distance defined as:

$\|X_1 - X_2\|_p = \left[\sum_i |X_1(i) - X_2(i)|^p\right]^{1/p}$ ,

relative $ p $ -distance defined as:

$\|X_1 - X_2\|_p = \left[\sum_i |X_1(i) - X_2(i)|^p\right]^{1/p} / \|X_1\|_p$ .

For $ p = 0 $ it is the $\infty$ -distance:

absolute $\infty$ -distance defined as:

$\|X_1 - X_2\|_\infty = \max_i\left(|X_1(i) - X_2(i)|\right)$

relative $\infty$ -distance defined as:

$\|X_1 - X_2\|_\infty = \max_i\left(|X_1(i) - X_2(i)|\right) / \|X_1\|_\infty$

Parameters

orderedData1	Pointer to the first file's data map
orderedData2	Pointer to the second file's data map
p	Parameter of the distance formula
absolute	Return argument pointer, absolute value
relative	Return argument pointer, relative value
doShiftAverage	Boolean argument to determine whether to shift the second file's data

See also: shiftAverage

Definition at line 810 of file vlsvdiff.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ printHelp()

void printHelp	(	const map< string, string > &	defAttribs,
		const map< string, string > &	descriptions )

Definition at line 1704 of file vlsvdiff.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ printNonVerboseData()

bool printNonVerboseData ( )

In folder-processing, non-verbose mode the data are stored during the processing and output at the end to have the data sorted properly

See also: outputStats outputDistance

Definition at line 1045 of file vlsvdiff.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ process2Files()

bool process2Files	(	const string	fileName1,
		const string	fileName2,
		const char *	varToExtract,
		const uint	compToExtract,
		const bool	verboseOutput,
		const uint	compToExtract2 = 0 )

Read in the contents of the variable component in both files passed in strings fileName1 and fileName2, and compute statistics and distances as wished

Parameters

fileName1	String argument giving the location of the first file to process
fileName2	String argument giving the location of the second file to process
varToExtract	Pointer to the char array containing the name of the variable to extract
compToExtract	Unsigned int designating the component to extract (0 for scalars)
verboseOutput	Boolean parameter telling whether the output will be verbose or compact

See also: convertSILO singleStatistics outputStats pDistance outputDistance printNonVerboseData

Definition at line 1570 of file vlsvdiff.cpp.

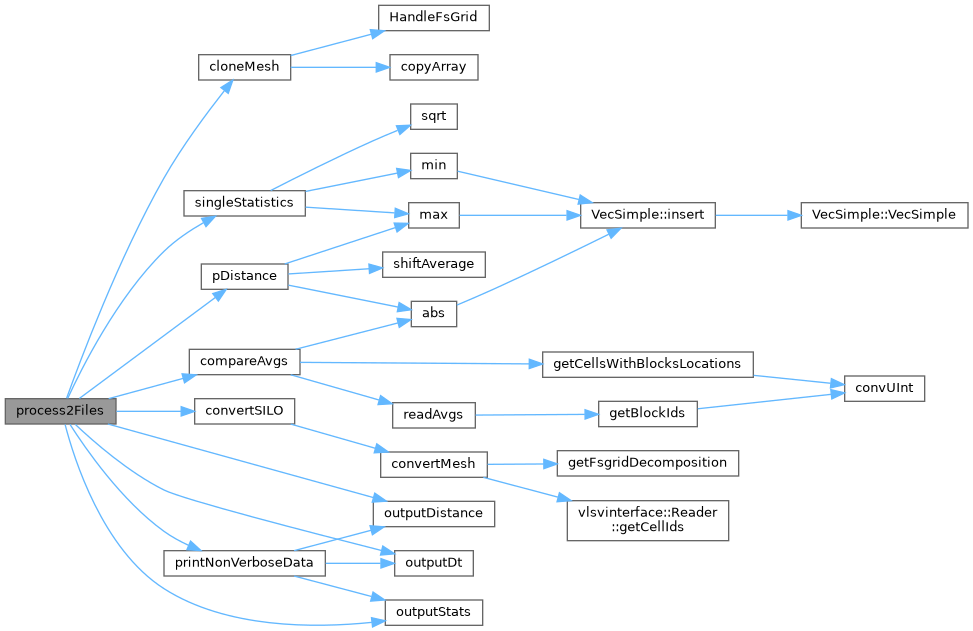

Here is the call graph for this function:

Here is the caller graph for this function:

◆ processDirectory()

bool processDirectory	(	DIR *	dir,
		set< string > *	fileList )

Creates the list of grid*.vlsv files present in the folder passed

Parameters

dir	DIR type pointer to the directory entry to process
fileList	Pointer to a set of strings, return argument for the produced file list

Definition at line 1681 of file vlsvdiff.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readAvgs()

template<class T>

bool readAvgs	(	T &	vlsvReader,
		string	name,
		const unordered_map< uint64_t, pair< uint64_t, uint32_t > > &	cellsWithBlocksLocations,
		const uint64_t &	cellId,
		unordered_map< uint32_t, vector< double > > &	avgs,
		uint64_t &	vectorSize )

Definition at line 1157 of file vlsvdiff.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ shiftAverage()

bool shiftAverage	(	const map< uint, Real > *const	orderedData1,
		const map< uint, Real > *const	orderedData2,
		map< uint, Real > *	shiftedData2 )

Shift the second file to the average of the first

Parameters

orderedData1	Pointer to the reference file's data
orderedData2	Pointer to the data to be shifted
shiftedData2	Pointer to where the shifted data of the second file will be put

Definition at line 757 of file vlsvdiff.cpp.

Here is the caller graph for this function:

◆ singleStatistics()

bool singleStatistics	(	map< uint, Real > *	orderedData,
		Real *	size,
		Real *	mini,
		Real *	maxi,
		Real *	avg,
		Real *	stdev )

Compute statistics on a single file

Parameters

size	Return argument pointer, dataset size
mini	Return argument pointer, dataset minimum
maxi	Return argument pointer, dataset maximum
avg	Return argument pointer, dataset average
stdev	Return argument pointer, dataset standard deviation

Definition at line 975 of file vlsvdiff.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

◆ attributes

map<string, string> attributes

static

Definition at line 71 of file vlsvdiff.cpp.

◆ gridName

int gridName

static

Definition at line 74 of file vlsvdiff.cpp.

Enumerations

Functions

Variables

Detailed Description

Enumeration Type Documentation

◆ GridType

Function Documentation

◆ cloneMesh()

◆ compareAvgs()

◆ convertMesh()

◆ convertSILO()

◆ convUInt()

◆ copyArray()

◆ getBlockId()

◆ getBlockIds()

◆ getCellsWithBlocksLocations()

◆ getFsgridDecomposition()

◆ HandleFsGrid()

◆ main()

◆ outputDistance()

◆ outputDt()

◆ outputStats()

◆ pDistance()

◆ printHelp()

◆ printNonVerboseData()

◆ process2Files()

◆ processDirectory()

◆ readAvgs()

◆ shiftAverage()

◆ singleStatistics()

Variable Documentation

◆ attributes

◆ gridName
